Advance Adapters GM V8 Bellhousing for GM NV4550 – 712577

Advance Adapters

Shop Advance Adapters Engine Adapters on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Advance Adapters GM V8 bellhousing for GM NV4550, part number 712577
  • Stock GM bolt pattern
  • Kit includes adapter bellhousing, dust cover plate, pilot bearing and clutch release arm
  • Confirm fit for your vehicle before ordering

Description

Overview

The Advance Adapters GM V8 Bellhousing, part number 712577, is a bellhousing for the GM NV4550 transmission with a stock GM bolt pattern. It comes as a kit with the adapter bellhousing, clutch release components and mounting hardware for a GM V8 application. Match your engine and NV4550 transmission combination before ordering.

Key features

  • Stock GM bolt pattern
  • Includes a special pilot bearing
  • Clutch release arm with a ball pivot, installed
  • Dust cover plate and clutch arm boot included
  • Additional mounting hardware in the kit

Before you buy

A bellhousing sits between the engine and transmission and carries the clutch release components, so its alignment affects how smoothly the clutch engages and how long the pilot bearing lasts. When the transmission is a new pairing, check the input shaft spline, bolt holes and the position of the clutch fork before committing to a build. Small misalignment can cause vibration and early wear on the clutch disc.

Clutch parts are often replaced together. A new clutch disc, pressure plate and release bearing are worth considering when the bellhousing is changed, since the clutch is already exposed. Inspect the throwout bearing, the release arm pivot and the boot for cracks or grease loss. Check the flywheel face for scoring at the same time.

  • Inspect the pilot bearing for play before assembly
  • Look for oil leaks around the input shaft seal
  • Replace a worn pivot ball rather than reusing it
  • Confirm the clutch disc is sized for the transmission

Specifications

Brand Advance Adapters
Part number 712577
UPC 70000002181
Bolt pattern Stock GM
Bellhousing depth 6 and 5/15 (unit not stated)
Transmission GM NV4550
Engine GM V8

Vehicle fitment

Match your GM V8 engine and NV4550 transmission combination before ordering. Confirm your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Mounting instructions come with the kit, so follow them during installation. Confirm the bellhousing depth, which is 6 and 5/15 with no unit, against your engine and transmission before assembly. Disconnect the battery before removing the transmission.

What’s included

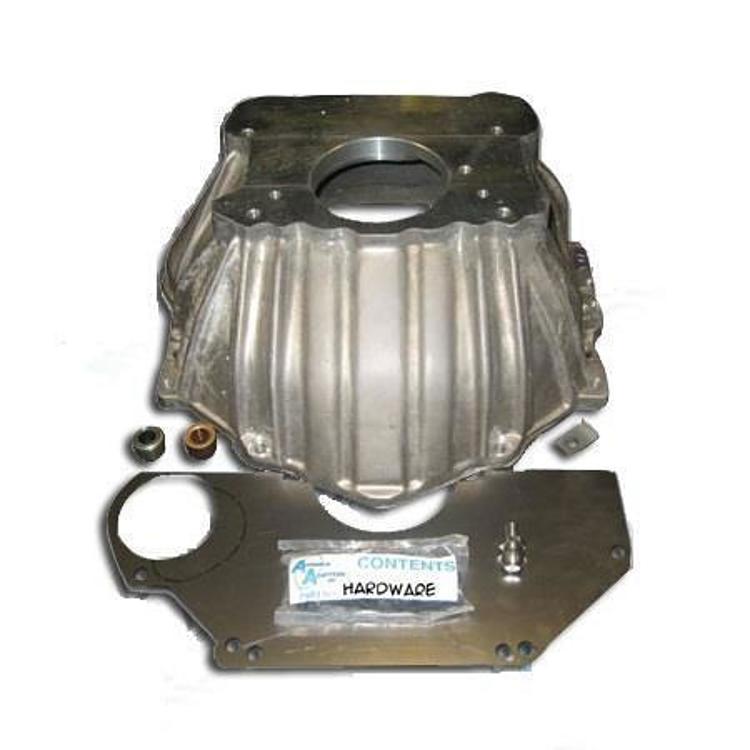

The kit includes one adapter bellhousing, one dust cover plate, one special pilot bearing, one clutch release arm, one ball pivot (installed), one clutch arm boot, and additional mounting hardware, plus instructions.

Not included: The engine, transmission and clutch disc are not part of the kit.

SKU: ADV712577 Category:

Specification

Shipping weight 30.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

Which transmission is the Advance Adapters 712577 bellhousing for?

It is for the GM NV4550 transmission and uses a stock GM bolt pattern on a GM V8 application. Part number 712577 and UPC 70000002181 identify it.

Does the kit come with a pilot bearing and clutch parts?

Yes. The kit includes a special pilot bearing, a clutch release arm, a ball pivot that is installed, a clutch arm boot, a dust cover plate and additional mounting hardware. Instructions are included too.

Which vehicles does the 712577 bellhousing fit?

It is for GM V8 engines paired with the NV4550 transmission. Match that engine and transmission combination to your vehicle, and confirm fit for your vehicle's year, model and trim before ordering.

How do I know if the clutch release components need replacing?

Replace them if the release arm pivot feels loose, the boot is torn, or the clutch pedal pulls unevenly. Check these parts whenever the bellhousing is removed, since the pivot is easy to inspect while the transmission is out.

Should the clutch be replaced when the bellhousing is changed?

Often yes. The clutch is exposed during the swap, so a new disc and pressure plate are a practical addition. Check the flywheel surface and the pilot bearing at the same time so the new clutch seats correctly.
