Advance Adapters GM TH700R 2 WDTransmission To Dana 300 Transfer Case Adapter – 50-6303

Advance Adapters

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Advance Adapters 50-6303, GM 700R-4 2WD to Dana 300 transfer case
  • Kit includes adapter housing, spud shaft, main shaft and mounting hardware
  • No vehicle years or models named

Description

Overview

The Advance Adapters 50-6303 is a transmission-to-transfer-case adapter kit. It connects a GM 700R-4 automatic, also called a 2WD TH700R, to a Dana Model 300 transfer case in a Jeep.

It may also require the transfer case adapter crossmember kit, part 716021. Confirm the transmission and transfer case match your vehicle before using the kit.

Key features

  • Adapts a GM 700R-4 automatic to a Dana 300 transfer case
  • Kit includes adapter housing, spud shaft, main shaft and bearing
  • Mounting hardware and instructions are included
  • Part number 50-6303 with UPC 808331004809

Mount and driveline checks

An adapter kit like this one bridges the transmission output and the transfer case input, so the alignment of the two housings sets the driveline geometry. A small offset between the output shaft and the transfer case input can cause vibration at speed and early wear on the input bearing. Check the adapter housing for fit before the transmission goes in, and measure the setup after the first installation.

Transfer case crossmembers and mounts are often replaced when the drivetrain changes, because factory mounts are placed for the original transmission height. Inspect the crossmember for cracks and the rubber mounts for compression before trusting the new setup. Driveshaft lengths and angles should be checked after the drivetrain is assembled and the vehicle is at ride height. Keep the instruction sheet and hardware together during installation so no fasteners are mixed up.

Specifications

Brand Advance Adapters
Part number 50-6303
UPC 808331004809
Transmission GM 700R-4, 2WD (also called TH700R)
Transfer case Dana Model 300

Vehicle fitment

The kit connects a GM 700R-4 automatic to a Dana 300 transfer case for a Jeep. Confirm the vehicle year, model and trim separately before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The kit may need the transfer case adapter crossmember kit, part 716021, so check the mount setup before installing the transmission. New mounting hardware and instructions are included.

What’s included

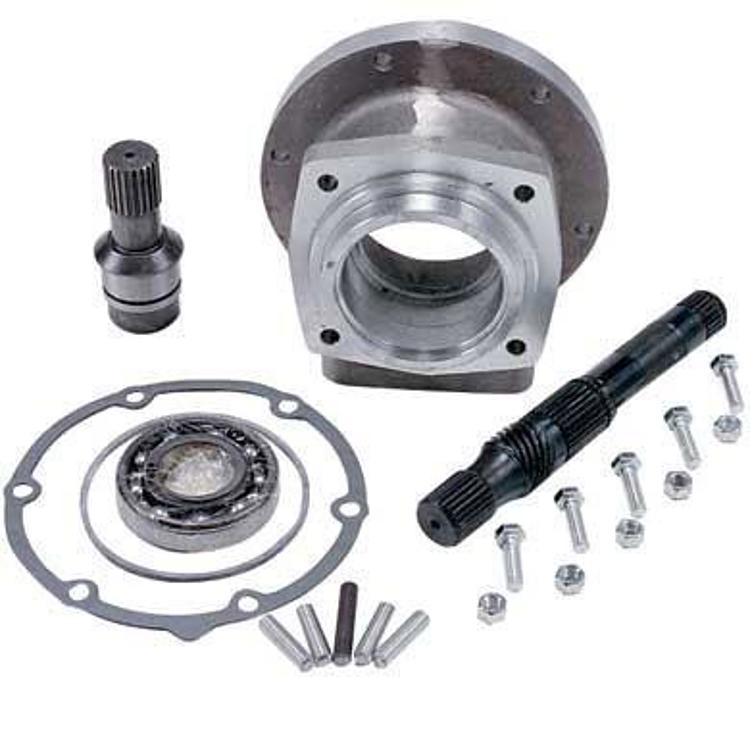

Adapter housing, spud shaft, main shaft, bearing, mounting hardware and instructions.

Not included: Transfer case adapter crossmember kit, part 716021, which may be required.

SKU: ADV50-6303 Category:

Specification

Shipping weight 16.00 lbs
Package dimensions 14.00 × 11.00 × 8.00 in
brands

Questions & Answers

Does the 50-6303 adapter fit a GM TH700R 2WD transmission?

Yes, it adapts a 2WD GM 700R-4 automatic, also called TH700R, to a Dana Model 300 transfer case. Check the setup against your vehicle's year, model and trim before fitting.

What comes with the 50-6303 adapter kit?

The kit includes an adapter housing, spud shaft, main shaft, bearing, mounting hardware and instructions. Check those contents against your installation before starting.

Is the crossmember kit needed?

Transfer case adapter crossmember kit part 716021 may be required for this setup. It is not in the kit, so check whether your installation needs it before fitting the transmission.

What should be checked after installing the adapter?

Check the driveshaft angles and clearance once the drivetrain is assembled and the vehicle is at ride height. Retighten the mounting hardware after the first short drive, and listen for vibration at highway speed.
