V6 Manual Transmission to GM V8 Adapter Bell Housing Kit

Advance Adapters

Shop Advance Adapters Engine Adapters on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Advance Adapters V6 manual to GM V8 bellhousing kit, part 712561
  • Adapts a GM 4.3 or 350 V8 to a 5 speed manual transmission
  • Includes 356 T-6 aluminum bellhousing and clutch linkage parts
  • Transmissions identified as R150F and R151F
  • No vehicle fitment listed; check transmission code before ordering

Description

Overview

The Advance Adapters V6 manual transmission to GM V8 adapter bellhousing kit, part 712561, is the bellhousing assembly for adapting a GM 4.3 or 350 V8 to a 1986-95 Toyota Truck five-speed manual transmission. The transmissions are identified as R150F and R151F.

The five-speeds were used in 4 cylinder turbo trucks and 3.0 V6 trucks, so the kit description is written around that transmission swap rather than those engines.

Key features

  • 356 T-6 aluminum bellhousing
  • Universal dust cover plate
  • Pilot bushing and throw-out arm for the clutch
  • Slave cylinder push rod, push rod end and ball pivot
  • Fastening hardware and adapter instructions included

Before you buy

A bellhousing swap changes how the engine, clutch and transmission line up, so check each connection before committing to the project. Measure the space behind the engine and confirm the transmission input shaft clears the bellhousing face before final bolt-up. Small misalignment often shows up later as clutch chatter, a noisy release or premature bearing wear.

Clutch parts are usually replaced together during a conversion like this. A worn disc, pressure plate or release bearing is far easier to address while the transmission is out. Look at the slave cylinder seal and push rod for leaks or play, and replace anything cracked, stiff or bent before the truck goes back on the road.

  • Check the throw-out arm pivots freely
  • Inspect the flywheel face for scoring
  • Confirm driveshaft length after the swap

Specifications

Brand Advance Adapters
Part number 712561
UPC 70000002175
Bellhousing material 356 T-6 aluminum
Engines GM 4.3 and 350 V8
Transmissions R150F and R151F, 5 speed manual
Application 1986-95 Toyota Truck

Vehicle fitment

Confirm fit for your vehicle’s year, model and trim before ordering. Check that your truck has an R150F or R151F five-speed manual transmission.

This kit is for a GM 4.3 or 350 V8 and does not cover the 4 cylinder turbo or 3.0 V6 truck engines. Confirm your engine before ordering.

Installation notes

Setup involves the throw-out arm, slave cylinder push rod and ball pivot included in the kit. Follow the adapter instructions packed with the kit for these parts.

What’s included

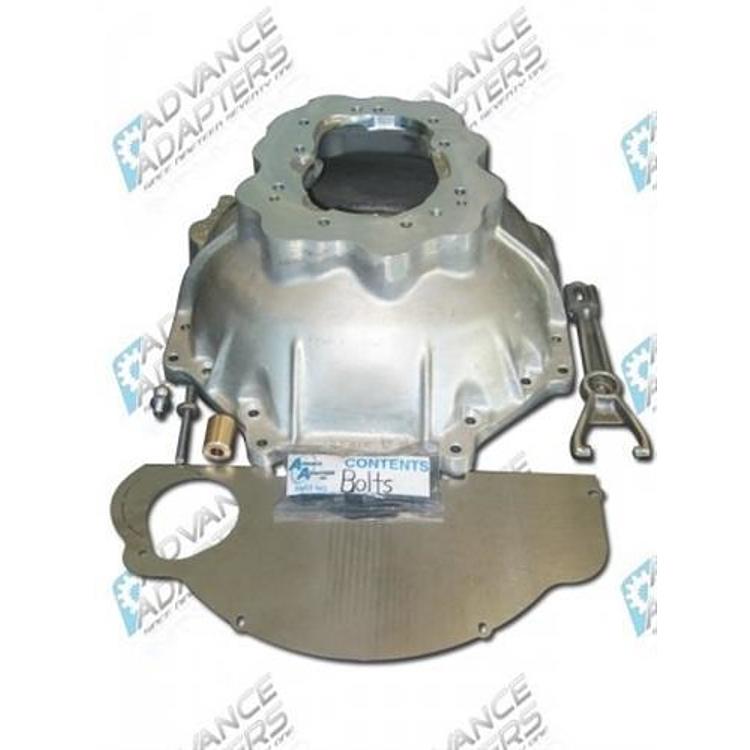

The kit includes the 356 T-6 aluminum bellhousing, universal dust cover plate, pilot bushing, throw-out arm, slave cylinder push rod, slave cylinder push rod end, ball pivot, fastening hardware and adapter instructions.

Not included: the engine, transmission and clutch components, which the adapter has to connect.

SKU: ADV712561 Category:

Specification

Shipping weight 26.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

What does the Advance Adapters 712561 bellhousing adapt?

It adapts a GM 4.3 or 350 V8 to a 1986-95 Toyota Truck five-speed manual transmission. The transmissions are identified as R150F and R151F in the kit description.

Does kit 712561 fit my Toyota truck?

The kit fits 1986-95 Toyota trucks with an R150F or R151F five-speed manual transmission. Confirm your transmission code and engine before ordering.

What comes in the kit?

The kit includes a 356 T-6 aluminum bellhousing, a universal dust cover plate, a pilot bushing, throw-out arm, slave cylinder push rod and push rod end, ball pivot, fastening hardware, and adapter instructions.

Should the clutch be replaced during this swap?

Usually yes, or at least inspect it closely. Because the pilot bushing and throw-out arm are part of this setup, check the disc, pressure plate and release bearing for wear before reassembly. Replacing worn parts now avoids pulling the transmission again later.
