325/60R20 is 35.4 inches tall and 12.8 wide. The tire size formula, a chart of 24 off-road sizes in inches, speedometer error and regearing…
Wheels
Showing 49–60 of 1731 resultsSorted by popularity
-
-
Wheels
Raceline Wheels Shift, 17x9 with 5x5 Bolt Pattern – Satin Black – 930B-79050-12
- Universal fitment designation, no specific vehicle named
- 17×9 aluminum spoke wheel with a 5 on 5 bolt pattern
- Offset -12, center bore 78, backspacing 4.5
- Satin black finish, Raceline Wheels 930 Shift series
SKU: RLW930B-79050-12 -
Wheels

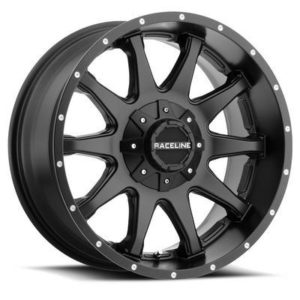

Raceline Wheels Shift, 17x9 with 5x4.5 and 5x5 Bolt Pattern – Satin Black – 930B-79096-00
- Raceline Wheels Shift, 17×9 spoke wheel in satin black
- Bolt patterns 5 on 4.5 and 5 on 5, with 5 on 4.5/114.3 also listed
- Offset 0, center bore 78, backspacing 5
- Part number RLW930B-79096-00, Shift 930 series
- Aluminum construction, universal fit
SKU: RLW930B-79096-00 -
-
Wheels
Raceline Wheels Shift BMF, 17x8.5 with 5x4.5 and 5x5 Bolt Pattern – Satin Black Machined with Dark Tint – 930DM-7859618
WheelsRaceline Wheels Shift BMF, 17x8.5 with 5x4.5 and 5x5 Bolt Pattern – Satin Black Machined with Dark Tint – 930DM-7859618
- Raceline Wheels Shift BMF, 17-inch diameter and 8.5-inch width
- Dual bolt pattern: 5 on 4.5 and 5 on 5
- Offset 18 and backspacing 5.46
- Satin black machined finish with dark tint, aluminum construction
- Part number RLW930DM-7859618; universal fit
SKU: RLW930DM-7859618 -
Wheels

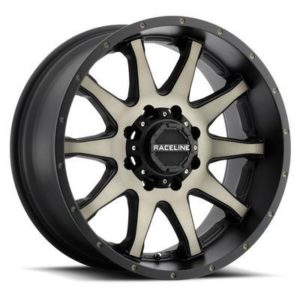

Raceline Wheels Shift BMF, 16x8 with 8x170 Bolt Pattern – Satin Black Machined with Dark Tint – 930DM-68081-00
WheelsRaceline Wheels Shift BMF, 16x8 with 8x170 Bolt Pattern – Satin Black Machined with Dark Tint – 930DM-68081-00
- 16×8 inch aluminum wheel, satin black machined with dark tint
- 8 on 170 bolt pattern, offset 0, backspacing 4.5
- Part number RLW930DM-68081-00
- Shift BMF style, universal fit
SKU: RLW930DM-68081-00 -
-
-
-
Wheels
Raceline Wheels RT231 Monster Beadlock, 17x9.5 with 5 on 5.5 Bolt Pattern – Satin Black – RT231-79555-32
WheelsRaceline Wheels RT231 Monster Beadlock, 17x9.5 with 5 on 5.5 Bolt Pattern – Satin Black – RT231-79555-32
- Raceline Wheels RT231 Monster Beadlock, 17×9.5 satin black aluminum wheel, part RLWRT231-79555-32
- 5 on 5.5 bolt pattern, offset -32, center bore 108, backspacing 4
- Universal fit, so check bolt pattern and offset before fitting
- Forged 6061 beadlock ring and grade 8 zinc beadlock hardware
- Beadlock ring spacers available for thicker beaded tires
SKU: RLWRT231-79555-32 -
-
Wheels

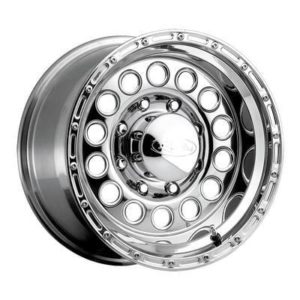

Raceline Wheels Rock Crusher, 17x9 with 5x5 Bolt Pattern – Polished – 887-79050
- Universal fit Rock Crusher wheel with no named vehicle
- 17×9 holes-style wheel in polished finish
- 5 on 5 bolt pattern, offset 0, backspacing 5
- Center bore of 84 and aluminum construction
- Part number RLW887-79050
SKU: RLW887-79050
Start with the bolt pattern and center bore
Every wheel is defined first by its bolt pattern, written as lug count and circle diameter, such as 6 on 5.5 or 8 on 170. It has to match your hub exactly. The center bore must be equal to or larger than the hub's pilot diameter. A larger bore is common on aftermarket wheels and is handled with hub-centric rings.
Diameter, width and tire size
Wheel diameter sets which tire sizes you can mount, and width limits how wide a tire stays safe on the bead. As a general rule, a tire should be mounted on a rim within the range the tire maker lists for that tire size. A 17x9 wheel suits a different tire than a 20x10. Larger diameters look sharp but leave less sidewall, which gives up some cushioning and air-down ability on the trail.
Offset and backspacing
Offset is the distance from the wheel's mounting face to its centerline. Zero offset puts the face on the centerline, positive offset tucks the wheel inward and negative offset pushes it outward. Backspacing is measured from the mounting face to the back edge of the rim. More negative offset gives a wider stance, but it can rub fenders, change scrub radius and add load on wheel bearings and steering parts. Compare your stock offset with the wheel you are considering and check clearance at full lock and full compression.
Construction and finish
- Cast aluminum is the common choice for street and trail use.
- Forged and flow-formed designs are generally lighter for a given strength.
- Steel wheels are heavier but are easy to straighten and are popular for rock crawling and utility use.
- Beadlock-style rings are for off-road use, and rules for street use vary.
Fitment and installation notes
Listings may say Universal Fit, which usually means the wheel is built to a bolt pattern and not to a specific vehicle. Confirm fitment for your exact year, make and model, along with brake caliper clearance and the manufacturer's specifications. Have the wheels mounted and balanced by a tire shop. Torque lug nuts to the vehicle's specification in a star pattern, and recheck after the first 50 miles. Check that your lug nuts use the seat type the wheel needs, usually conical or flat. Many aftermarket wheels need different hardware than the factory nuts.
Common mistakes to avoid
Do not choose a wheel on looks alone. Confirm that the brake calipers clear the inside of the spokes, since larger calipers on some trucks need a specific barrel profile. Check the load rating stamped on the wheel, which matters for heavy trucks, trailers and loaded overland rigs. Mixing wheels with a different offset front to rear can change handling. Finally, inspect the wheel after hard trail use for bent lips, cracks near the hub and slow air leaks at the bead, because a small bend can cause a vibration that is often blamed on tire balance. Keep the mounting surface clean and free of rust before installing, since debris there lets lug nuts loosen over time.
Related guides
- 325/60R20 in Inches: Tire Size Math Made Simple
Popular Wheels brands
- FUEL Off-Road (632)
- Method Race Wheels (416)
- Pro Comp Alloy Wheels (303)
- Pro Comp Steel Wheels (82)
- Raceline Wheels (72)
- ICON Vehicle Dynamics (65)
- Mickey Thompson (47)
- 4 Wheel Parts (30)
- TIS Offroad (29)
- Lrg Rims (16)
- Black Rhino Wheels (15)
- Dick Cepek (8)
Wheels FAQ
What does 6 on 5.5 mean on a wheel?
It means six lug holes on a circle 5.5 inches across, which is also written as 6x139.7 millimeters. The pattern must match your vehicle's hub exactly. Wheels with a different pattern will not seat properly, even if they look close.
What is wheel offset?
Offset is the distance from the mounting surface to the wheel's centerline, measured in millimeters. Positive offset sits the wheel closer to the vehicle, negative offset pushes it outward. It controls stance, tire clearance and steering geometry, so compare it against your factory wheel.
Do I need hub-centric rings?
If the wheel's center bore is larger than your hub's pilot diameter, rings fill the gap so the wheel centers on the hub and not on the lug nuts. This helps prevent vibration. Many aftermarket off-road wheels use a larger bore, so check the spec.
