Overview

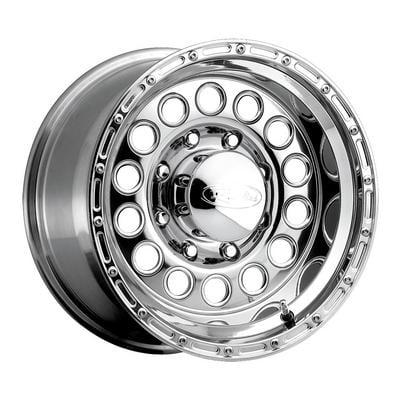

The Raceline Wheels Rock Crusher RLW887-79050 is a 17×9 polished aluminum holes-style wheel with a 5 on 5 bolt pattern, a 0 offset and a center bore of 84. It is a universal fit wheel with no vehicle named, so confirm the bolt pattern and center bore match your hub before choosing it.
Within the 887 Rock Crusher series, this 17-inch, 9-inch-wide model has a 5-inch backspacing, and its 84 center bore differs from the 131 bore on the 8-lug versions in the same family.
Key features
- Holes-style face with a polished finish
- Aluminum construction
- 5 on 5 bolt pattern
- 17-inch diameter and 9-inch width
- Center bore of 84 and offset of 0
Choosing a wheel for your hub
A wheel’s fit depends on more than its diameter. The bolt pattern sets how the lug holes line up with the hub, and the center bore sets how the wheel centers on the hub face. When the center bore is larger than the hub, hub-centric rings can close the gap so the load sits on the hub rather than the lug nuts. Measure the hub before you buy, and treat the offset as a separate check against brake calipers and fender edges.
Holes-style wheels have open faces, so brake parts and suspension components show through the spokes. That makes caliper clearance easy to see, but it also means dust and mud collect behind the face. Rinsing the back side after off-road runs helps keep the inner barrel clean.
- Confirm the bolt pattern before any other check
- Compare the center bore with the hub face
- Re-torque lug nuts after the first few drives
- Inspect the mounting face for dents after trail use
Specifications
| Brand | Raceline Wheels |
|---|---|
| Part number | RLW887-79050 |
| Series | 887 Rock Crusher |
| Wheel diameter | 17 inches |
| Wheel width | 9 inches |
| Offset | 0 |
| Backspacing | 5 |
| Center bore | 84 |
| Bolt pattern | 5 on 5 |
| Style | Holes |
| Finish | Polished |
| Construction | Aluminum |
| Fitment | Universal Fit |
Vehicle fitment
No vehicle is named for this wheel. Universal fit means you must confirm the 5 on 5 pattern and 84 center bore fit your own hub before ordering.
Confirm your vehicle’s year, model and trim before ordering. A 5 on 5 pattern and 84 center bore are not the same as the 8 on 6.5 and 131 bore versions of this series.
Installation notes
An 84 center bore is smaller than the 131 bore used on other wheels in this range, so verify hub fit before mounting. Check the 0 offset against brake and fender clearance.
What’s included
The product is one wheel.
Not included: tires, valve stems and lug nuts are separate items.
