Overview

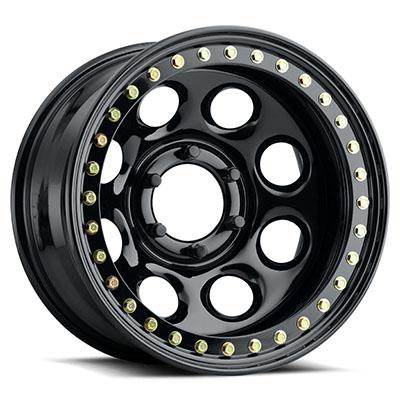

The Raceline Wheels RT81 Rock 8 15×10 is a 15-inch steel beadlock wheel, 10 inches wide, in black, with part number RLWRT8150012. It has a 5 on 4.5 bolt pattern and a center bore of 80, and it is a universal fit wheel rather than one built for a named vehicle.
The RT81 Rock 8 was one of the first purpose-built off-road beadlocks made. A beadlock uses a ring and bolts to clamp the tire bead against the wheel, which keeps the tire seated at low pressure. This model has a classic 8 hole mod window design, embossed for strength.
Key features
- Carbon steel wheel and ring, made in the USA
- Classic 8 hole mod window with an embossed design
- Grade 8 zinc beadlock hardware with hardened steel PEM-nuts
- Captive washers, and the hardware can be replaced as needed
- Offset of -44 and backspacing of 3.75
- It is an official wheel of the SCORE International Off-Road Racing Series.
Running low pressure safely
Low tire pressure gives better grip on loose surfaces, but a standard bead can slip off the rim under hard cornering or rock impacts. A beadlock ring clamps the bead so the tire stays seated at lower pressure. The ring only works when its bolts are tight and even, so the tire and hardware should be checked together before every outing.
A beadlock adds weight and a rigid seat, which changes how the wheel rides on pavement. Keep the hardware clean and free of mud, and inspect the ring after each trip. Tires built for beadlock use, or with reinforced beads, are a sensible match for a ring like this.
- Tighten ring bolts evenly in a star pattern
- Check the bolts after the first outing
- Recheck after every tire change
- Keep threads clean and free of mud
Specifications
| Brand | Raceline Wheels |
|---|---|
| Part number | RLWRT8150012 |
| Series | RT81 Rock 8 |
| Style | Windowed |
| Finish | Black |
| Construction | Steel |
| Wheel diameter | 15 inches |
| Wheel width | 10 inches |
| Offset | -44 |
| Backspacing | 3.75 |
| Center bore | 80 |
| Bolt pattern | 5 on 4.5 |
| Beadlock hardware | Grade 8 zinc, hardened steel PEM-nuts |
| Made in | USA |
Vehicle fitment
Universal Fit means no specific year, make or model is attached. A 5 on 4.5 bolt pattern, center bore of 80, offset of -44 and backspacing of 3.75 must match your hub, and the tire must clear brakes and suspension.
The wheel comes with its beadlock hardware, including captive washers. Valve stems and center caps are not included.

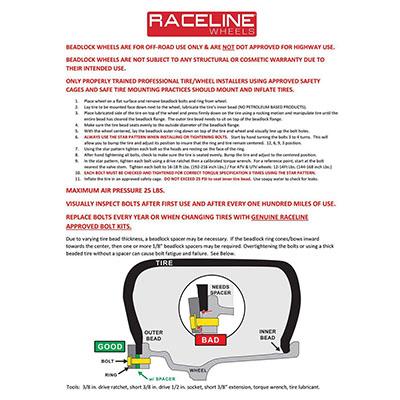

Installation notes
Beadlock wheels hold the tire bead with their ring bolts, so check the hardware for tightness after the first outing and whenever the tire is changed. Replacement hardware can be fitted if a nut strips. The offset of -44 pushes the tire outward, so test-fit with the chosen tire at full steering lock.
What’s included
Grade 8 zinc beadlock hardware and captive washers are included. Confirm the number of bolts and nuts in your set against the ring before mounting.
Not included: tires, and any hub-centric rings your hub requires.
