Overview

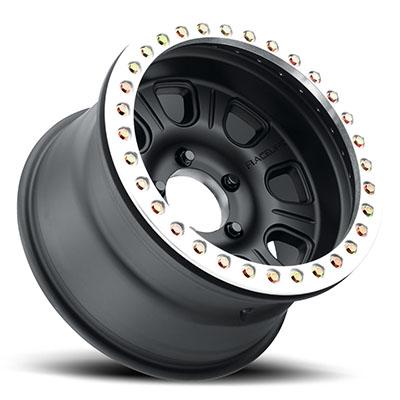

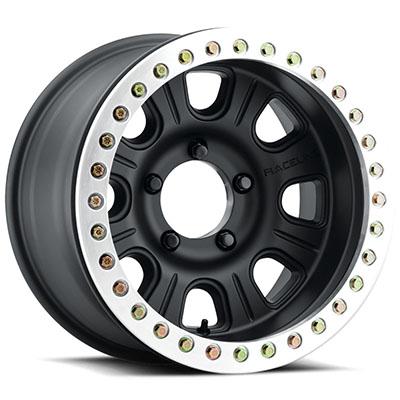

The Raceline Wheels RT231 Monster Beadlock is a 17×9.5 aluminum beadlock wheel with a 5 on 5.5 bolt pattern, finished in satin black, part number RLWRT231-79555-32. A beadlock wheel uses a ring and bolted hardware to clamp the tire bead to the rim, which keeps the tire seated at low pressures in off-road use.
The wheel is used by several off-road racing series, including the SCORE International Off-Road Racing Series, the Southern Rock Racing Series, Nor Cal Rock Racing, Texplex Motorsports Park and UTV Championships. Fitment is universal, so it is not tied to one make, model or year.
Key features
- Eight-spoke design with a cast-in Raceline logo
- A356 aluminum wheel body with a forged 6061 beadlock ring
- Designed for high strength in off-road use
- Grade 8 zinc beadlock hardware, made in the US, with hardened steel PEM-nuts and captive washers that can be replaced as needed
- Beadlock ring spacers available for thicker beaded tires
- Custom bolt patterns and hub bores can be drilled to specification
- Desert racing lug seats available, noted with “DBP” in the product code
Running beadlocks off-road
A beadlock keeps the tire bead locked to the rim when tire pressure is low, which matters most in soft sand, rocks and mud where a tire can roll off the bead. Run pressures that suit the terrain and the load, and seat the beadlock ring evenly against the bead before the hardware is tightened.
Check the hardware before each run. Look at the PEM-nuts and bolts for looseness, inspect the ring for bends, and confirm the washers are seated. Thicker beaded tires may need ring spacers to seat properly, so check the tire and ring fit before running low pressures.
- Check bolts and PEM-nuts before each run
- Inspect the ring for bends or cracks
- Match the tire bead to the ring
- Keep spare hardware on hand
Specifications
| Brand | Raceline Wheels |
|---|---|
| Part number | RLWRT231-79555-32 |
| Series | RT231 Monster Beadlock |
| Wheel diameter | 17 inches |
| Wheel width | 9.5 inches |
| Offset | -32 |
| Center bore | 108 |
| Backspacing | 4 |
| Bolt pattern | 5 on 5.5 |
| Finish | Satin black |
| Style | Beadlock |
| Construction | Aluminum; A356 wheel body, forged 6061 beadlock ring |
| Beadlock hardware | Grade 8 zinc, US made |
| Fitment | Universal fit |
Vehicle fitment
It is universal fit and is not tied to a specific make, model or year. Match the 5 on 5.5 bolt pattern, center bore of 108, offset of -32 and backspacing of 4 to your hub and axle before fitting.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Beadlock wheels rely on the ring and hardware to hold the tire bead. Raceline beadlock ring spacers are available for thicker beaded tires and help the ring seat properly.
What’s included
Grade 8 zinc beadlock hardware with hardened steel PEM-nuts and captive washers comes standard with the Monster.
Not included: Tires and valve stems are not part of this wheel.
