Raceline Wheels Shift, 17x8.5 with 5x4.5 and 5x5 Bolt Pattern – Satin Black – 930B-7859618

Raceline Wheels

Shop Raceline Wheels 17x8.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Raceline Shift 17×8.5 aluminum wheel, Satin Black
  • 5 on 4.5 and 5 on 5 dual bolt pattern
  • 78 center bore, 18 offset
  • 5.46 backspacing

Description

Overview

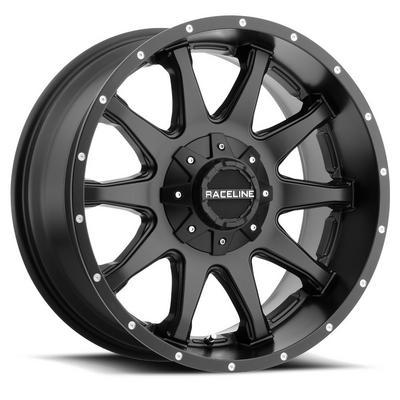

The Raceline Wheels Shift 930B-7859618 is a 17×8.5 aluminum wheel with a dual 5×4.5 and 5×5 bolt pattern in a Satin Black finish.

The 90 Series Shift is a 17×8.5 wheel with a 78 center bore, 18 offset and 5.46 backspacing. Its catalog number is RLW930B-7859618. It is a universal fit, and no particular vehicle, year or chassis code is tied to it.

The Shift is a spoke style wheel in the 90 Series with a dual bolt pattern of 5 on 4.5 and 5 on 5. The 5 on 4.5 pattern is also 5 on 114.3. The wheel is 17 inches in diameter and 8.5 inches wide.

Raceline & Allied Wheel builds performance wheels with roots in off-road racing, and the same technology has been adapted for a consumer line. The catalog number is RLW930B-7859618.

Key features

  • 90 Series Shift, 17×8.5 spoke style
  • Dual bolt pattern: 5 on 4.5 and 5 on 5
  • Aluminum construction
  • 78 center bore
  • 18 offset and 5.46 backspacing
  • Satin Black finish

Matching a dual bolt pattern

A dual bolt pattern gives one wheel two possible fits, but only one of them will seat correctly on a given hub. Before installing, set the wheel on the hub and check that every lug hole lines up with the studs for the pattern you are running. Compare the center bore with the hub hole so the wheel is centered, and use hub centric rings where the bore is larger than the hub.

Spoke wheels also need brake clearance checked with the tire on. Calipers and rotor hats can sit close to the inner spokes, and a change in offset can move the wheel toward or away from them. Once the wheel is on, spin it by hand and listen for rubbing as the steering turns.

  • Confirm which bolt pattern your hub uses
  • Check brake caliper clearance with the tire fitted
  • Use hub centric rings when the bore is larger than the hub

Specifications

Brand Raceline Wheels
Part number 930B-7859618
Catalog number RLW930B-7859618
Series 90 Series
Wheel diameter 17 Inches
Wheel width 8.5 Inches
Bolt pattern 5 on 4.5/5 on 5
Second bolt pattern 5 on 4.5/114.3
Offset 18
Center bore 78
Backspacing 5.46
Style Spoke
Construction Aluminum
Finish Satin Black
Fit type Universal fit

Vehicle fitment

The Raceline 930B-7859618 is a universal fit with no particular vehicle, year or chassis code. It has a dual 5 on 4.5 and 5 on 5 bolt pattern, so match one of those patterns and check the center bore and offset against your vehicle.

Wheel fitment depends on bolt pattern, offset, center bore and brake clearance. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Test-fit the Shift on a hub first, looking at bolt pattern, center bore, offset and backspacing, and check how the spokes clear your brake calipers. Seat the lug nuts in a criss-cross order to the factory torque figure and retorque after your first miles.

What’s included

Only the wheel is included.

Not included: Lug nuts and center caps are not included.

SKU: RLW930B-7859618 Categories: ,

Questions & Answers

What bolt patterns does the Raceline 930B-7859618 have?

The wheel has a dual bolt pattern of 5 on 4.5 and 5 on 5. The 5 on 4.5 pattern is also written as 114.3 millimeter metric, so both notations describe the same holes.

What are the offset and center bore of the Raceline Shift?

The offset is 18, the center bore is 78 and the backspacing is 5.46 for this 17x8.5 wheel. Check all three against your hub before ordering.

Which vehicles fit the Raceline 930B-7859618?

The Raceline 930B-7859618 is a universal fit and is not tied to one vehicle, year or chassis code. Match the 5 on 4.5 or 5 on 5 bolt pattern and check the center bore and offset.

What is the Raceline Shift wheel made from?

The Shift 930B-7859618 is a 90 Series aluminum wheel with a Satin Black finish, made by Raceline in a 17x8.5 size for 5 on 4.5 and 5 on 5 bolt patterns.

Do dual bolt pattern wheels need a different torque procedure?

Not in general, but the lug nuts must match the pattern and seat you are using. Tighten in a criss-cross order, and recheck the nuts after the first few drives, since new wheels can settle against the hub.
