Overview
The Raceline Wheels RT81 Rock 8 16×8 is a 16-inch steel beadlock wheel in black, 8 inches wide, with part number RLWRT8168060. It has a 6 on 5.5 bolt pattern, a center bore of 108 and an offset of -19, and it is a universal fit wheel with no named vehicle.
This was one of the earliest purpose-built off-road beadlocks made by the company, and it is made in the USA. The windowed body follows a classic 8 hole mod design, and the carbon steel construction is engineered for strength. This is a single-size wheel in the RT81 range, so compare its measurements with your own hub.
Key features
- 16 inch diameter and 8 inch width
- Black finish on a windowed steel body
- Offset of -19 and backspacing of 3.75
- 6 on 5.5 bolt pattern with a center bore of 108
- Beadlock ring with grade 8 zinc hardware
- Made in the USA.
Offset and clearance on a beadlock
An offset of -19 places the wheel’s mounting face slightly outboard of the centerline, so the tire sits a little farther out than on a zero-offset wheel. That changes how the tire clears the fender and how load is carried through the hub. Test-fit with the tire you intend to run, and check that the sidewall does not rub at full steering lock or under suspension travel.
Clearance on a beadlock should be checked with the ring in place, since the ring and bolts take up space behind the tire. Look for contact with the caliper and suspension arms, and keep the backspacing in mind when choosing spacers or wheel accessories.
- Test-fit with the tire and ring in place
- Check clearance at full lock and under suspension travel
- Look for contact with calipers and suspension arms
- Recheck clearance after changing tire size
Specifications
| Brand | Raceline Wheels |
|---|---|
| Part number | RLWRT8168060 |
| Series | RT81 Rock 8 |
| Style | Windowed |
| Finish | Black |
| Construction | Steel |
| Wheel diameter | 16 inches |
| Wheel width | 8 inches |
| Offset | -19 |
| Backspacing | 3.75 |
| Center bore | 108 |
| Bolt pattern | 6 on 5.5 |
| Beadlock hardware | Grade 8 zinc, hardened steel PEM-nuts |
| Made in | USA |
Vehicle fitment
No vehicle is named for this wheel, and its Universal Fit status leaves the match to you. Confirm the 6 on 5.5 bolt pattern, center bore of 108, offset of -19 and backspacing of 3.75 against your hub, and check brake and suspension clearance.
The wheel comes with its beadlock hardware. Valve stems and center caps are not included.
Installation notes

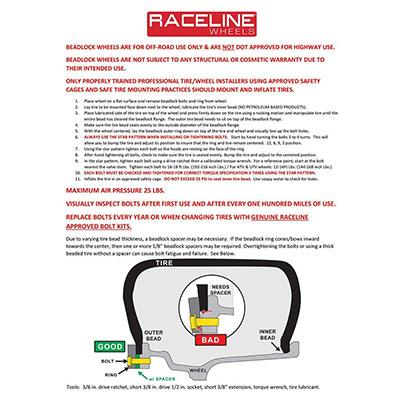

An offset of -19 places the tire slightly outboard of the centerline, so verify fender clearance with the tire you intend to mount. Check the beadlock ring bolts after initial runs and whenever the tire is removed, since the bead is held by that hardware.
What’s included
Beadlock hardware is included with the wheel. Confirm the number of bolts and nuts before mounting, and check the parts against the ring first.
Not included: tires.
