Body Corner Guard is the rear corner armor for Jeep Wranglers: full and short steel corners in 3/16 inch plate from Poison Spyder Customs for the TJ and LJ, Smittybilt XRC full corners for the JK, Rugged Ridge XHD steel corners and tape-on polycarbonate guards, Warrior aluminum diamond plate corners, Bushwacker TPO corners for the JL, and GenRight and JcrOffroad pieces. Choose by body style, material and whether cutting is acceptable.Compare the corner type and installation method below.

Showing 1–12 of 27 resultsSorted by popularity

The corner takes the hit

When a Wrangler drops off a ledge or pivots on a rock, the rear corner of the tub behind the wheel is the panel that meets the obstacle, and the stock sheet metal folds the first time. Corner guards replace that thin skin with a plate that can take the contact. Within the Body Protection family this subcategory is specifically the rear corners; fender armor, quarter panel skins and tailgate plates are listed in the parent category.

Full corners or short corners

Full corners cover the entire rear quarter from the wheel opening back around the corner to the tailgate opening and down to the bottom of the tub, with cutouts for the tail lights, fuel filler and license plate. They are the most protection and visually change the Jeep. Short corners cover only the lower section below the tail lights, where most rock contact happens, and leave the upper quarter stock. Poison Spyder sells both styles; Rugged Ridge and Warrior lean to short corners. If you run tall tires and rarely touch the body above the tail lights, short corners save weight and keep the stock look.

Steel, aluminum or plastic

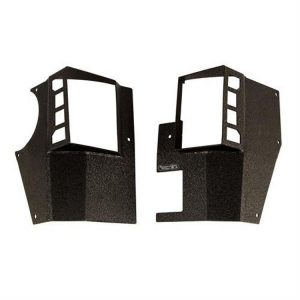

  • 3/16 inch steel from Poison Spyder, or 1/8 inch cold rolled steel and 3 mm plate from Smittybilt and Rugged Ridge, is the rock crawler's choice. It holds its shape against ledges, but adds roughly 20 to 30 pounds per side and must be painted or powder coated if sold bare.

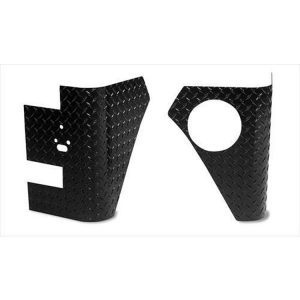

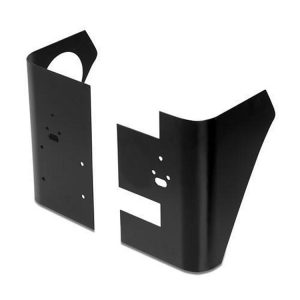

  • Aluminum diamond plate from Warrior is about a third of the weight, does not rust and shrugs off brush and light contact, but dents under a hard hit.

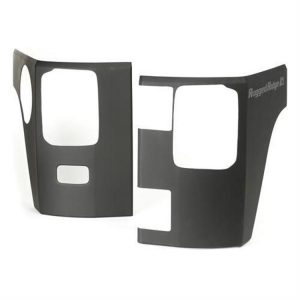

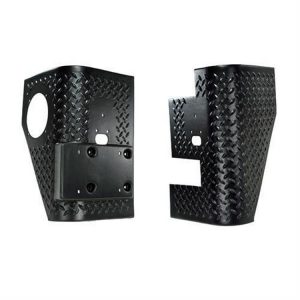

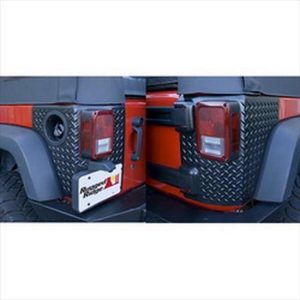

  • Polycarbonate and TPO from Rugged Ridge and Bushwacker attach with automotive high bond tape, need no drilling and protect against trail brush, parking lot scrapes and rock chips. They are not rock armor.

Stock cut or comp cut

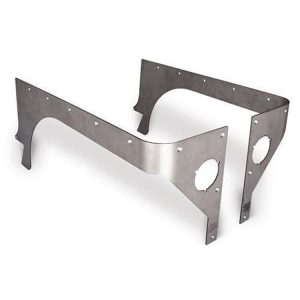

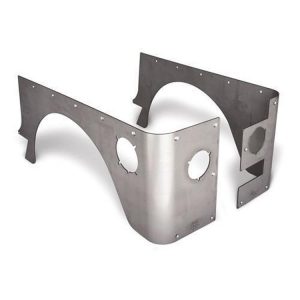

Poison Spyder and others offer two wheel opening shapes. Stock or standard corners follow the factory wheel opening and bolt over the existing panel. Comp cut corners open the wheel well toward the rear so a 37 inch tire on a stretched wheelbase has room, and they require cutting the body to match; the gas filler and tail light locations may move too. Comp cut corners are for built rigs that already run large tires and want more clearance, not a first upgrade.

Fit and installation

Corners are specific to body generation and door count. TJ and LJ corners differ in length; two-door and four-door JK corners are separate; the JL has its own. Stock fenders, LED tail lights and aftermarket flares all affect the cutouts, so match those too. Steel corners nearly always need drilling and sometimes trimming of the plastic flare or the body lip; some Smittybilt pieces and all tape-on plastic guards install with no cutting or drilling.

Tape the corner in place and check every edge against the tail light, filler door and tailgate before drilling. Drill from outside with sharp bits, deburr, and paint or seal every hole and bare edge, since trapped moisture rusts the tub behind the armor. Use the stainless button head or flat head hardware supplied with anti-seize, and run a bead of sealer along the top edge if you want to keep water out. Bare steel corners must be coated before installation. Recheck fasteners after the first few trips.

Keeping it looking right

Powder coat chips on rocks, so keep touch-up paint for the edges. Textured black hides scuffs better than gloss. Aluminum can be scuffed back to an even finish with a pad. Plastic tape-on guards cannot be repositioned once pressed down, so align carefully and apply above 60 degrees.

Popular Body Corner Guard brands

Body Corner Guard FAQ

Do I need full corners or short corners?

Short corners cover the lower quarter below the tail lights, where most rock contact happens, and keep the stock look above. Full corners cover the whole rear quarter and protect the tail light area and the upper body as well. Heavy rock use favors full corners.

What are comp cut corners?

Corners with an enlarged wheel opening that lets a larger tire on a stretched wheelbase move without hitting the body. They require cutting the tub to match and often relocating the fuel filler or tail lights, so they suit built rigs rather than stock Jeeps.

Can corner guards be installed without drilling?

Tape-on polycarbonate and TPO guards from Rugged Ridge and Bushwacker install with automotive high bond tape and no drilling. Some Smittybilt steel corners also mount without cutting. Most steel corners from Poison Spyder, Warrior and Rugged Ridge XHD require drilling.

Will JK two-door corners fit a four-door?

No. The rear quarter panels are different lengths on two-door and four-door JKs, and the same is true of TJ versus LJ. Corners are sold by body style and generation, so match the exact model listed.
