Poison Spyder Stock Crusher Corners (Bare Steel) – 14-04-010

Poison Spyder Customs

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Stock Crusher Corners in bare 3/16 inch plate steel
  • Includes openings for the factory wheel and fuel filler
  • Mounting holes for factory flares, tail light and license plate frame
  • Stainless steel flat head cap screws; cutting or drilling required

Description

Overview

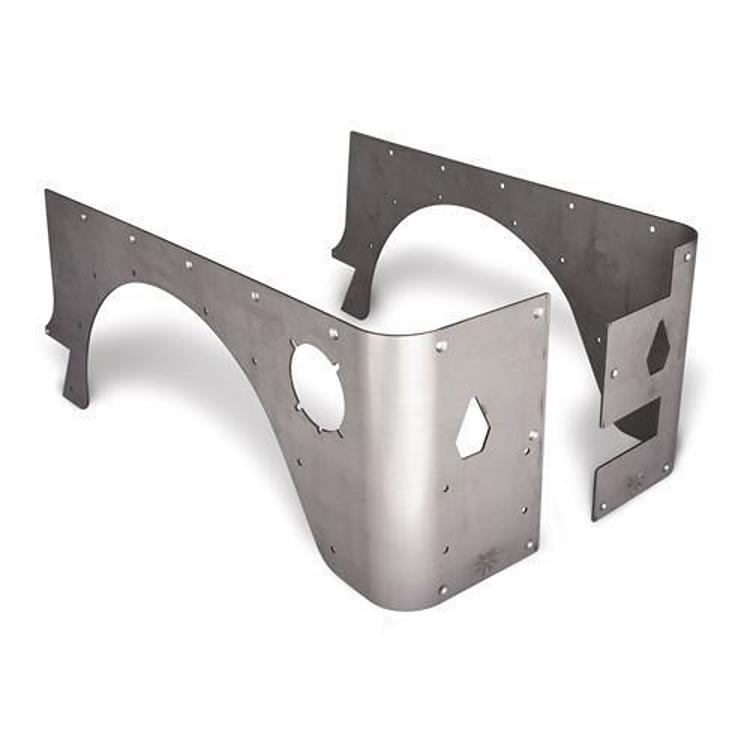

The Poison Spyder Stock Crusher Corners in bare steel (part number 14-04-010) are corner guards cut from 3/16 inch plate steel. They protect the body corners of a Jeep from rock damage. Each corner is laser cut from high strength plate and carefully roll formed to match the body lines.

The stock version includes the factory wheel and fuel filler opening and mounting holes for the factory equipment, including the factory flares, tail light and license plate frame. The corners ship as bare steel, with no coating applied.

Key features

  • 3/16 inch plate steel, laser cut and roll formed
  • Opening for the factory wheel and fuel filler
  • Mounting holes for the factory flares, tail light and license plate frame
  • Countersunk bolt holes for a flat surface
  • Supplied stainless steel flat head cap screws

Protecting corners on the trail

Body corners take hits from rocks, stumps and tight trail edges, so a corner guard is a practical addition for a Jeep that sees rough terrain. Bare steel protects well against impact, but it needs attention to resist rust. Once the corners are cut and drilled, the bare edges should be cleaned and coated so moisture does not start corrosion at the holes.

Before installation, plan the layout around the wheel opening, fuel filler, flares and tail light. Test the fit with the corners held in place before marking any holes. After the first few trail sessions, check the bolts and the paint or coating around the edges, since rock contact can chip the finish first.

  • Clean and degrease the steel before coating
  • Mark and test-fit before drilling
  • Touch up chips along the bolt holes
  • Check the bolts after the first trail runs

Specifications

Brand Poison Spyder Customs
Part number 14-04-010
UPC 614901724981
Type Body corner guard, stock style
Corner type Full
Material 3/16 inch plate steel
Finish Bare steel
Hardware Stainless steel flat head cap screws
Installation type Cutting or drilling required

Vehicle fitment

It is a direct fit for a Jeep body, and fit depends on the body style. Confirm your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Installation requires cutting or drilling. The corners carry mounting holes for the factory flares, tail light and license plate frame, and the supplied hardware is stainless steel.

What’s included

Stock Crusher Corners in bare steel and the supplied stainless steel flat head cap screws.

Not included: any paint or coating, since the corners ship bare.

SKU: PSC14-04-010 Category:

Specification

Shipping weight 69.00 lbs
Package dimensions 52.00 × 27.00 × 14.00 in
brands

Questions & Answers

Do the Stock Crusher Corners include a fuel filler opening?

Yes. The corners include the factory wheel and fuel filler opening, along with mounting holes for the factory flares, tail light and license plate frame.

What are the Stock Crusher Corners made from?

They are cut from 3/16 inch plate steel, laser cut and roll formed to the body lines. They ship as bare steel, without paint or a coating.

Do the corners need drilling for installation?

Yes. Installation requires cutting or drilling, and the bolt holes are countersunk so the supplied stainless steel flat head cap screws sit flush.

Should bare steel corners be coated?

Yes. Bare steel rusts without protection. Clean and degrease the steel, then apply a primer and topcoat after cutting and drilling. Recoat any scratches as they appear.

What tools are needed for installation?

Installation requires cutting or drilling. Common tools include a drill, a step bit or hole saw, a file for deburring, and a socket set for the cap screws. Check the fit before final tightening.
