Overview

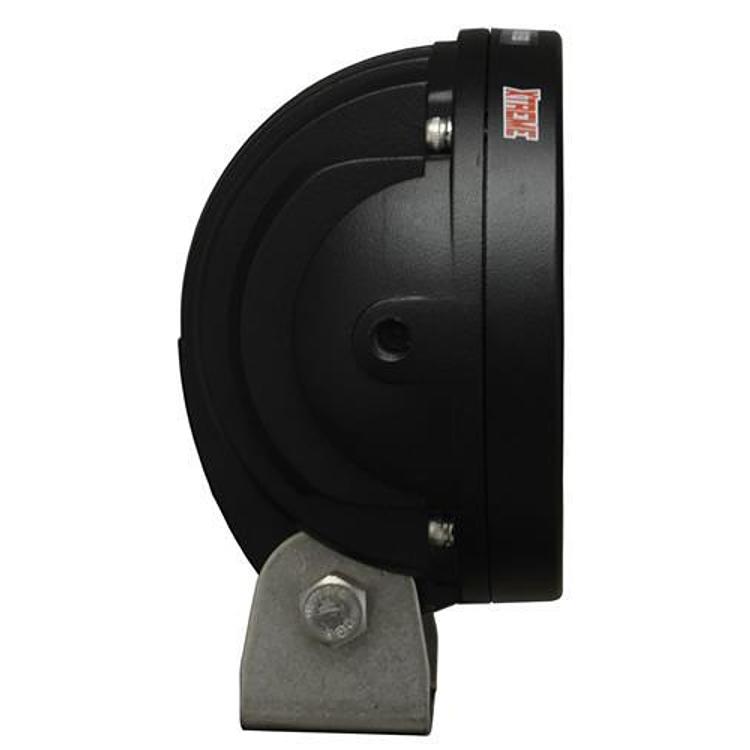

The Vision X 9118215 is a 4 inch round Xtreme LED work light with a wide beam and a black aluminum housing. Vision X gives it universal fit, so no particular vehicle is named.
The light has Prime Drive Technology, runs on a multi-volt 9-32V DC input and uses 5watt LEDs. It weighs 2.3 pounds and has a mounting depth of 1 inch, and an extended warranty comes standard.
Key features
- Prime Drive Technology
- 5watt LEDs
- Multi-volt 9-32V DC input
- Black aluminum housing
- Extended warranty included as standard
Wide beam work light uses
A wide beam spreads light over a broad area close to the vehicle, which suits campsite work, tailgate tasks and trail obstacles that sit beside the path rather than ahead. Because the spread is broad, the light is less useful for seeing far down a road, so pair it with a narrower light if you need reach.
Black aluminum housings resist knocks, but the lens and gasket still need attention. Check the seal after washing the vehicle or crossing water, and keep the lens free of mud and film. Rotate the mount to avoid glare in the driver’s eyes, and test the aim after tightening the bracket.
- Mount low for ground coverage
- Check seals after water exposure
- Keep the lens clean
- Confirm power supply before connecting
Specifications
| Brand | Vision X Lighting |
|---|---|
| Part number | 9118215 (also shown as V/X9118215) |
| UPC | 887009118215 |
| Size | 4 inch round |
| Beam pattern | Wide |
| Housing | Black aluminum |
| Input voltage | 9-32V DC, multi-volt |
| LEDs | 5watt |
| Weight | 2.3 pounds |
| Mounting depth | 1 inch |
| Warranty | Extended, standard |
Vehicle fitment
Vision X puts the 9118215 under universal fit, so it is not sized for a specific year, make or model. Plan the mount around the 1 inch mounting depth and the 4 inch round body.
Installation notes
Confirm the power source sits inside the 9-32V DC range before connecting the light.
What’s included
Beyond the light and its part number and UPC, no packaged items are named.
