Overview

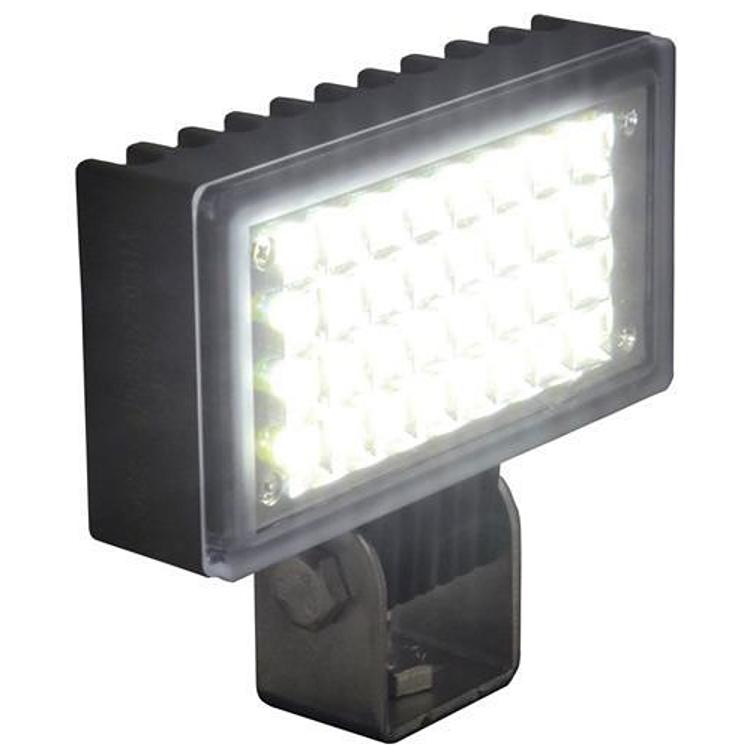

The Vision X 4001824 is a compact rectangle Utility Market LED flood light in white, measuring 3.4 inch x 1.9 inch. It is designed for a wide flood pattern and is a universal fit rather than a specific vehicle option.
The flood light produces 500 lumens, draws .5 amps and uses 32 wide angle LEDs. It is rated for a 50,000 hour life span and weighs .41 pounds.
Key features
- 32 wide angle LEDs for flood coverage
- Rated at 500 lumens
- Draws .5 amps
- 50,000 hour life span
Planning a compact flood mount
A compact flood light fits where a larger lamp will not, such as a tight bumper corner, a pod location or a utility rack. The wide angle pattern covers a broad area at close range, so it works best when the mount places the light low and angled to spread the beam across the work surface.
Small housings still need firm mounting. Vibration from rough roads can loosen brackets and turn an aimed light off target, so use lock washers or threadlocker and check alignment after rough use. Keep the lens clean, since dust and road film scatter light and reduce the spread on the ground. Route wiring so it is protected from abrasion and heat.
- Measure clearance behind the mount
- Aim low for ground coverage
- Use locking fasteners on the bracket
- Clean the lens regularly
Specifications
| Brand | Vision X Lighting |
|---|---|
| Part number | 4001824 (also shown as V/X4001824) |
| UPC | 837544001824 |
| Dimensions | 3.4 inch x 1.9 inch |
| Shape | Rectangle, compact |
| Color | White |
| Light source | 32 wide angle LEDs |
| Output | 500 lumens |
| Current draw | .5 amps |
| Weight | .41 pounds |
| Life span | 50,000 hours |
Vehicle fitment
This flood light has universal fit, so it is not matched to a year, make or model. Choose a mounting spot that fits the 3.4 inch x 1.9 inch body and covers the area you need to flood.
What’s included
Check whether mounts, wiring and hardware are needed for your setup before starting the installation.
