Overview

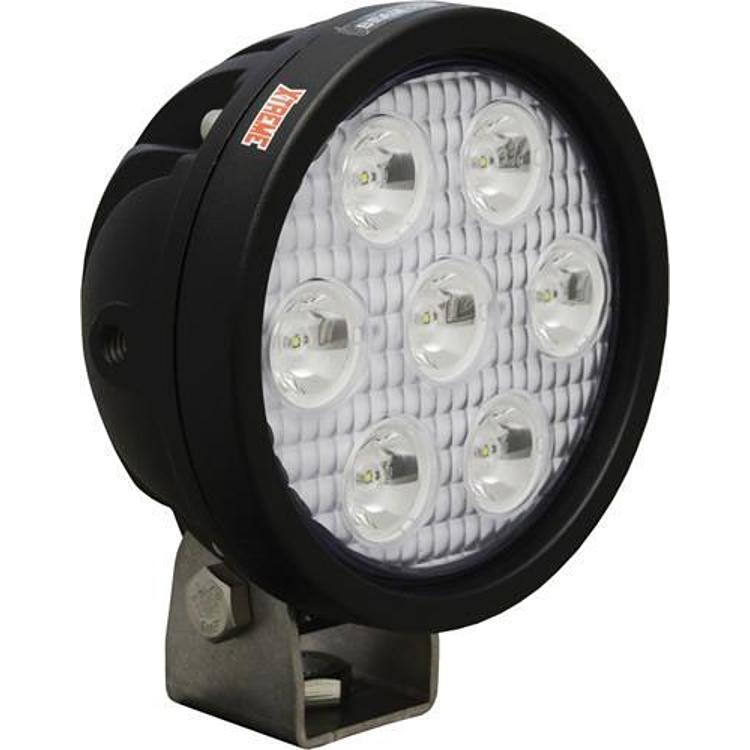

The Vision X 4004719 is a 4 inch round Xtreme LED work light with a narrow beam pattern and black aluminum housing. Vision X gives it universal fit, so it is sold without a specific vehicle match.
The light uses Prime Drive Technology and runs on a multi-volt 9-32V DC input. It has 5watt LEDs, weighs 2.3 pounds and has a mounting depth of 1 inch. An extended warranty comes standard.
Key features
- Prime Drive Technology
- Multi-volt 9-32V DC input
- 5watt LEDs
- Black aluminum housing
- Extended warranty included as standard
Narrow beam reach and aim
A narrow beam concentrates light into a tighter cone, which carries farther down a trail or across a field but leaves less light at the sides. Mount it where the cone points along the direction you travel or work, and aim it with a short test run after the bracket is tight. Small aiming changes make a large difference at distance.
Voltage matters for any LED work light. A supply that dips under load can cause flicker, so confirm the power source and fuse the feed. Narrow beams are often paired with a wide beam light for close work, covering the near ground while the narrow light reaches ahead. Keep wiring short and protected from heat for a reliable connection.
- Aim during daylight for a clear check
- Pair with a wide light for close work
- Protect the feed from heat and abrasion
- Recheck aim after rough use
Specifications
| Brand | Vision X Lighting |
|---|---|
| Part number | 4004719 (also shown as V/X4004719) |
| UPC | 837544004719 |
| Size | 4 inch round |
| Beam pattern | Narrow |
| Housing | Black aluminum |
| Input voltage | 9-32V DC, multi-volt |
| LEDs | 5watt |
| Weight | 2.3 pounds |
| Mounting depth | 1 inch |
| Warranty | Extended, standard |
Vehicle fitment
Vision X places the 4004719 under universal fit, so it carries no year, make or model. Measure the 1 inch mounting depth against the surface you plan to use before choosing a position.
Installation notes
Because the light accepts 9-32V DC, check the supply voltage on your system before wiring it.
What’s included
Packaged accessories are not spelled out beyond the light itself.
