Trail Master 4.0 Inch Lift Kit with NGS Shocks – Manual Steering – TM3540-20023

Trail Master

Shop Jeep Wrangler YJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Trail Master 4-inch leaf spring lift kit with NGS shocks and drop pitman arm, model TM3540-20023
  • For manual steering Jeep YJ Wranglers
  • Max tire size 33×12.50

Description

Overview

The Trail Master 4.0-inch Lift Kit with NGS Shocks – Manual Steering, model TM3540-20023, is a leaf spring lift for Jeep YJ Wranglers with manual steering. It lifts the vehicle 4 inches and has a maximum tire size of 33×12.50.

The drop pitman arm is part of the kit for the manual steering setup, and the leaf springs are fitted with bushings.

The 4-inch lift uses front and rear leaf springs with leaf spring bushings, and a drop pitman arm is part of the kit for manual steering. Front and rear U-bolt kits are included with the springs and NGS shocks.

Twin tube shocks need the rear shock relocation bracket RE2007. Some vehicles need driveline modifications for a height increase over 1.5 inches, so check the driveline before installing the kit.

This kit is built for manual steering models, and the drop pitman arm is the steering part included for the lifted leaf spring setup. The lift height range is 3 to 4.99 inches.

The leaf springs, bushings and U-bolt kits come as a set for the front and rear. NGS nitrogen gas shocks are included at both ends, and the kit is a leaf spring setup for the YJ Wrangler generation.

Key features

  • 4-inch leaf spring lift
  • Front and rear leaf springs with leaf spring bushings
  • Drop pitman arm
  • Front and rear NGS shocks
  • Front and rear U-bolt kits

Leaf spring lifts and steering

Leaf spring lifts keep the axle located by the springs themselves, so bushing condition matters a great deal for ride and steering. The leaf spring bushings and U-bolt kits take the axle loads, and worn parts can make the ride wander or cause clunking over bumps. A drop pitman arm changes the steering geometry slightly, which is why the steering parts should be inspected together with the springs.

Older Jeeps often have dried or cracked rubber that needs attention before a new set is installed. Check the leaf spring clips and the U-bolt nuts for looseness after the first drives, and re-torque them as needed. Twin tube shocks and the relocation bracket should be checked for clearance at full compression, since the rear shock position changes with the lift.

  • Re-torque U-bolt nuts after first drives
  • Check spring bushings for cracking
  • Inspect pitman arm joint for play

Specifications

Brand Trail Master
Part number TM3540-20023
UPC 614901083231
Lift height 4 inches
Lift height range 3 to 4.99 inches
Suspension type Leaf spring
Steering Manual
Maximum tire size 33×12.50

Vehicle fitment

It fits Jeep YJ Wranglers with manual steering, covering 1987 to 1995 Wrangler (YJ) models.

Models outside the YJ generation are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Twin tube shocks need the rear shock relocation bracket RE2007. Lifts above 1.5 inches can need driveline modifications on some vehicles.

What’s included

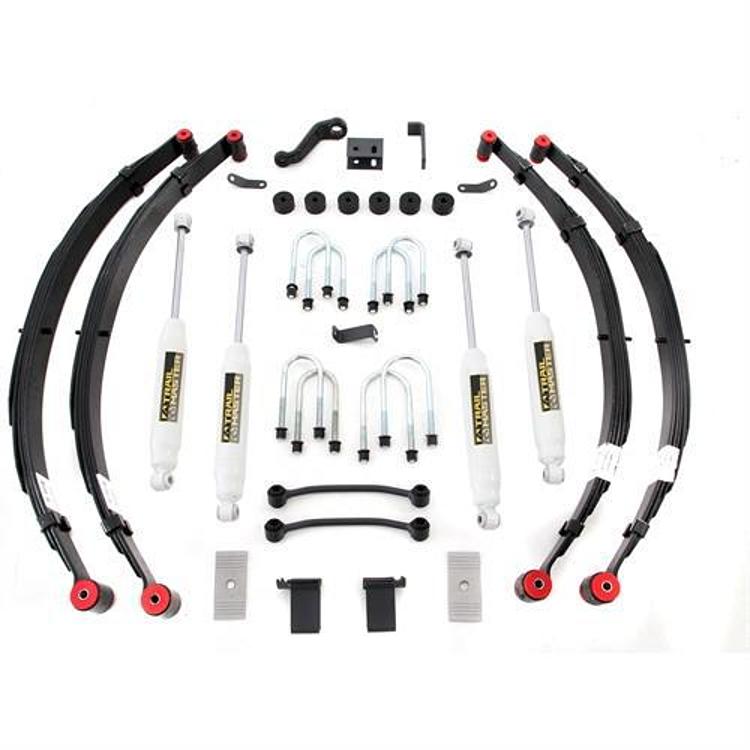

Front and rear leaf springs, leaf spring bushings, a drop pitman arm, front and rear NGS shocks, and front and rear U-bolt kits.

SKU: T/MTM3540-20023 Category:

Specification

Shipping weight 174.03 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (YJ) likely fits1987–1995All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is this kit for manual or power steering?

Manual steering. The title and short description both say the kit is for manual steering models, and the power steering version of the Jeep kit is a separate product.

What years of Jeep Wrangler YJ does it cover?

The YJ generation runs from 1987 to 1995, and the kit fits YJ Wranglers. Check your year and model before installing the lift.

Which shocks come with the TM3540-20023?

The kit includes front and rear NGS shocks, along with front and rear U-bolt kits and a maximum tire size of 33x12.50.

How often should leaf spring U-bolts be checked?

Check them after the first few drives and then at regular service intervals. Loose nuts, a shifting axle or a clunk when accelerating are signs the U-bolts need tightening or replacing.
