Trail Master 6.0 Inch Knuckle Suspension Lift Kit with Rear NGS Shocks – TM403N

Trail Master

Shop Ford F-150 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Trail Master 6-inch knuckle lift kit with rear NGS shocks, model TM403N
  • Fits 2009 to 2013 Ford F-150 pickups
  • Front steel strut spacers and rear lift blocks

Description

Overview

The Trail Master 6.0-inch Knuckle Suspension Lift Kit with Rear NGS Shocks, model TM403N, is a lift for 2009 to 2013 Ford F-150 pickups. It lifts the front 6 inches with heavy-duty steel strut spacers and the rear 5 inches with cast lift blocks.

The kit uses cast ductile steel knuckles, CNC machined for steering geometry and alignment. Front and rear high-clearance crossmembers and a differential skid plate hold the front differential in place without changing the front track width.

The rear lift uses cast lift blocks that keep the OE-style bump pad, so the factory bump stop still works under load. Driveshaft spacers are included for the rear.

Key features

  • 6-inch front lift from steel strut spacers
  • 5-inch rear lift from cast lift blocks that keep the OE-style bump pad
  • CNC machined cast ductile steel knuckles
  • Front and rear high-clearance crossmembers
  • Differential skid plate
  • Nitrogen gas charged NGS shocks for the rear
  • Driveshaft spacers included

Driveline and alignment checks

Cast lift blocks change the rear height and the angle of the driveshaft, so driveline angles should be measured after installation. Driveshaft spacers help manage the angle at the rear, but the U-joints still need a check for wear and vibration. Vibration at highway speed often points to an angle problem rather than a bad shaft.

The 6-inch front lift changes the steering and suspension geometry, so front alignment belongs to the installation. Inspect the tie rod ends, ball joints and differential mounts for play during the first few months of use. The differential skid plate can also pick up debris on trails, so check it after rough runs for dents and loose hardware.

  • Driveline angle measurement
  • U-joint wear check
  • Front alignment after install
  • Skid plate inspection after trails

Specifications

Brand Trail Master
Part number TM403N
UPC 70000670558
Front lift 6 inches, steel strut spacers
Rear lift 5 inches, cast lift block
Suspension type Knuckle
Shocks Nitrogen gas charged NGS, rear
Lift height range 5 to 6.99 inches
Maximum tire size 35×12.50

Vehicle fitment

It fits 2009 to 2013 Ford F-150 pickups.

Other Ford F-150 years are not covered by this fitment. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The rear lift uses cast blocks and a driveshaft spacer, so check the driveline angles and the front alignment after the install.

What’s included

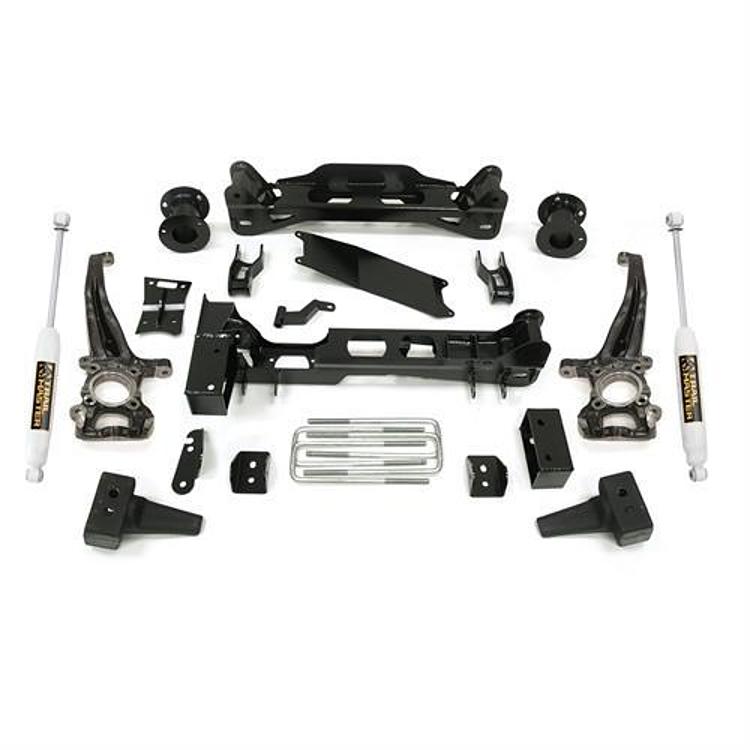

Front steel strut spacers, cast knuckles, crossmembers, differential skid plate, rear lift blocks with U-bolts, driveshaft spacers and rear NGS shocks.

SKU: T/MTM403N Category:

Specification

Shipping weight 253.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-150 likely fits2009–2013All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the TM403N fit a 2011 Ford F-150?

Yes. It fits 2009 to 2013 Ford F-150 pickups, which includes 2011 trucks. The front lift is 6 inches and the rear lift is 5 inches for that range.

Are driveshaft spacers included?

Yes. Driveshaft spacers are included with the kit, along with the cast rear lift blocks and U-bolts. Check the driveline angles after installing them to confirm the rear geometry.

How big a lift does the TM403N give?

The front lift is 6 inches from heavy-duty steel strut spacers, and the rear lift is 5 inches from cast lift blocks. The kit's lift height range is 5 to 6.99 inches.

Do lift blocks affect the bump stops?

They can. Cast lift blocks keep the OE-style bump pad, so the factory bump stop still works, but the gap changes with the lift. Check bump stop contact at full compression after installation and after any suspension change.
