Trail Master 6.0 Inch Bracket Suspension Lift Kit with Rear NGS Shocks – TM104N

Trail Master

Shop GMC Sierra 1500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Trail Master 6-inch bracket lift kit with rear NGS shocks, model TM104N
  • Crossmembers, brackets and sway bar end links
  • Front and rear NGS shocks included for 4WD models

Description

Overview

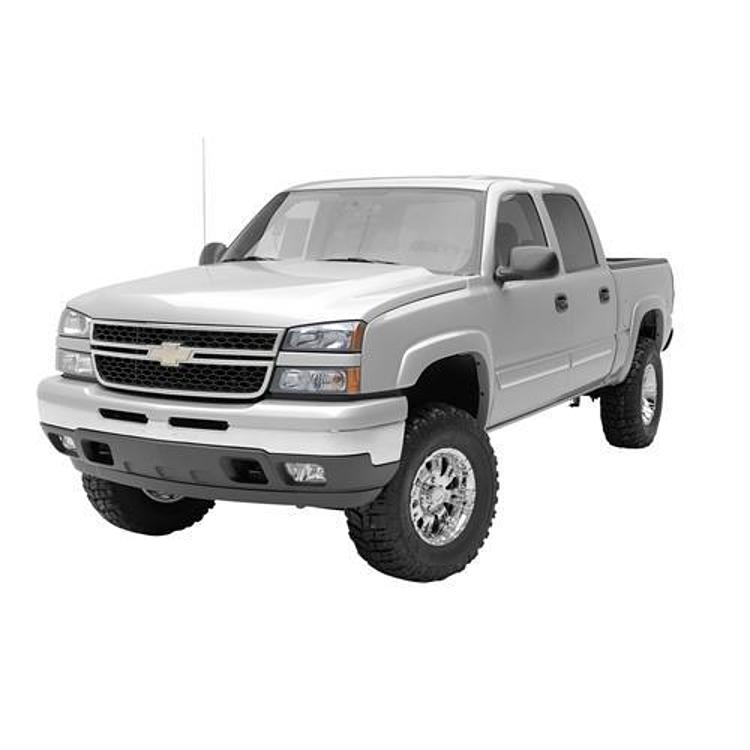

The Trail Master 6.0-inch Bracket Suspension Lift Kit with Rear NGS Shocks, model TM104N, is a 4WD bracket lift for 1999 to 2006 GM 1500 pickups. It gives a full 6 inches of lift with heavy duty brackets and high-clearance crossmembers. The bracket design does not increase the front track width.

The kit keeps the OE steering geometry and alignment, and it includes extended sway bar end links and torsion bar brackets.

The bracket system does not increase the front track width, which Trail Master says is a feature of the design. The high clearance crossmembers and heavy duty brackets carry the 6-inch lift, and the kit includes a set of four NGS shocks.

The bracket design keeps the OE steering geometry while carrying the 6-inch lift, and the extended sway bar end links are part of the same set.

Key features

  • 6-inch bracket lift
  • Heavy duty brackets and high-clearance crossmembers
  • Front and rear NGS nitrogen gas shocks
  • Rear lift blocks with add-a-leaf and U-bolts
  • Extended sway bar end links
  • Torsion bar brackets

Choosing a bracket lift

A bracket lift raises the truck by moving the upper mounting points rather than changing the stock springs alone, so the suspension geometry depends on how well the brackets and crossmembers match the frame. Before buying any bracket system, look at how far the crossmembers sit from the original mounts and whether the brackets are welded or bolted. Heavier trucks and larger tires put more load on those joints, so the hardware should be torqued and checked on a regular schedule.

After installation, the rear add-a-leaf and lift blocks change pinion angle and driveline length, so check U-bolts and driveshaft angles at the first few service intervals. Shock length and brake line slack also need a look at this height. Worn ball joints, bushings and tie rod ends should be replaced when they show play, because the steering setup keeps the front end tracking straight at the new height.

  • Re-torque bracket and crossmember bolts after the first few trail runs
  • Inspect U-bolts for loosening and cracks
  • Check brake lines and wiring for stretch at full droop

Specifications

Brand Trail Master
Part number TM104N
UPC 70000672189
Lift height 6 inches
Lift height range 5 to 6.99 inches
Suspension type Bracket
Rear lift method Lift block, U-bolts and add-a-leaf
Drive 4WD models
Shocks NGS, front and rear, included

Vehicle fitment

It fits these trucks:

  • 1999 to 2006 Chevrolet Silverado 1500
  • 2001 to 2003 and 2005 to 2006 Chevrolet Silverado 1500 HD
  • 1999 GMC K1500
  • 1999 to 2006 GMC Sierra 1500
  • 2001 to 2003 and 2005 to 2006 GMC Sierra 1500 HD

Other GM trucks and years are not covered by this fitment. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The bracket system and rear add-a-leaf change the suspension geometry, so have the front alignment checked afterward.

What’s included

Crossmembers, brackets, extended sway bar end links, torsion bar brackets, rear lift blocks with add-a-leaf and U-bolts, a set of four NGS nitrogen gas shocks, and all required hardware.

SKU: T/MTM104N Category:

Specification

Shipping weight 245.30 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet Silverado 15001999–2006Base, Hybrid, LS, LT, SS, WT, Z71
Chevrolet Silverado 1500 HD2001–2003, 2005–2006Base, LS, LT
GMC K15001999Sierra SL, Sierra SLE, Sierra SLT
GMC Sierra 15001999–2006Base, C3, Denali, HT, Hybrid, SL, SLE, SLT, WT
GMC Sierra 1500 HD2001–2003, 2005–2006SLE, SLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the TM104N keep the factory steering geometry?

The kit maintains OE steering geometry and proper alignment, and it does not increase the front track width. Both points come from the bracket design itself.

Does this kit fit a 2003 Chevrolet Silverado 1500?

Yes. The kit fits 1999 to 2006 Chevrolet Silverado 1500 trucks, which includes 2003. It is a 4WD kit, so confirm the drivetrain matches before ordering.

Are the NGS shocks included with the TM104N?

Yes. A set of four NGS nitrogen gas shocks is included, with shocks for both the front and rear of the kit.

How often should a bracket lift be inspected?

Inspect it after the first few hundred miles and then at every oil change or tire rotation. Look for loose bolts, cracked welds, worn bushings and brake lines that have stretched. Retighten fasteners to the correct torque whenever you find movement.
