Trail Master 4.0 Inch Lift Kit with NGS Shocks – TM3640-20013

Trail Master

Shop Trail Master Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Trail Master 4-inch leaf spring lift kit with NGS shocks, model TM3640-20013
  • Drop pitman arm, U-bolts and hardware included
  • Transfer case setup that keeps the driveshaft in position

Description

Overview

The Trail Master 4.0-inch Lift Kit with NGS Shocks, model TM3640-20013, is a leaf spring lift with nitrogen gas NGS shocks, a drop pitman arm and U-bolts. It falls in the 3 to 4.99 inch lift range.

Lifted leaf springs are designed for a smooth ride, and the drop pitman arm corrects steering angles after the lift.

The 4-inch kit uses lifted leaf springs with U-bolts and hardware. The drop pitman arm corrects the steering angle after the lift. A transfer case setup keeps the driveshaft in the right position, which matters because the driveline angle changes with a lift.

The kit falls in the 3 to 4.99 inch lift range. NGS nitrogen gas shocks are included, so the damping is matched to the leaf spring lift as part of the same kit.

Lifted leaf springs make up the lift and are designed for a smooth ride. The U-bolts and hardware are included, so the springs can be installed from the kit.

Key features

  • Lifted leaf springs
  • Nitrogen gas NGS shocks included
  • Drop pitman arm to correct steering angles
  • U-bolts and hardware included
  • Transfer case setup that maintains the driveshaft position

Steering and driveline after a lift

A leaf spring lift changes the angles of the steering and driveline, and those angles drive wear on joints and universal joints. A drop pitman arm is used to bring the steering geometry back into range, so it should be installed and checked as one part of the set rather than swapped in alone.

Driveshaft angle is the main concern on a lifted truck. Excess angle can cause vibration and wear on the u-joints, and a transfer case setup that holds the shaft in position helps keep those angles within working range. Measure the angles after installation and note any vibration on the first drives.

Leaf spring bushings, shackles and spring eye hardware should be inspected at each service. Retorque the U-bolts after the first drives, because the clamps can settle as the springs seat. Replacing worn bushings during the install is often easier than doing it later.

Specifications

Brand Trail Master
Part number TM3640-20013
UPC 614901083378
Lift height 4 inches
Lift height range 3 to 4.99 inches
Suspension type Leaf spring
Shocks NGS, nitrogen gas

Vehicle fitment

No vehicle is named for this kit and no fitment list is available. Check Trail Master specifications for the model and year before choosing it.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The drop pitman arm is part of the steering correction on this kit, so the steering angle should be checked after installation.

What’s included

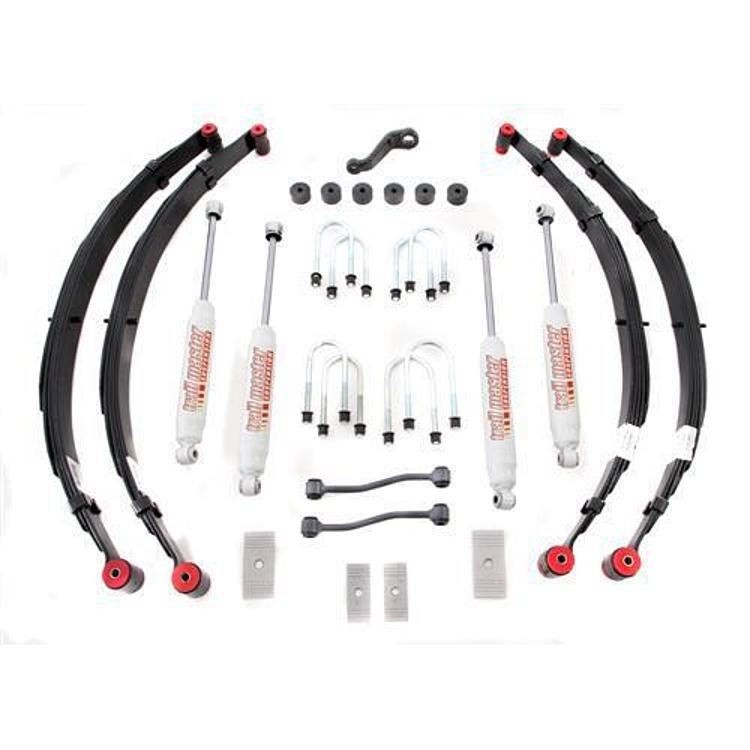

Leaf springs, U-bolts, hardware, NGS nitrogen gas shocks and a drop pitman arm.

SKU: T/MTM3640-20013 Category:

Specification

Shipping weight 159.58 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

What does the drop pitman arm do on the TM3640-20013?

The drop pitman arm corrects steering angles after the lift, so it is part of the steering correction rather than an optional extra. It is used with this leaf spring kit.

Are NGS shocks included with the TM3640-20013?

Yes. NGS nitrogen gas shocks come with the kit, along with the lifted leaf springs, U-bolts and hardware. Before ordering, confirm the year, model and trim for your vehicle.

How far does the TM3640-20013 lift the vehicle?

The kit is a 4-inch lift, and it falls in the 3 to 4.99 inch lift range. Lifts in that range change driveline and steering angles, so check both after installation.

How often should U-bolts on a leaf spring lift be checked?

Check them after the first few drives and then at regular service intervals. Retighten the nuts to the correct torque when they settle, and look for cracked spring eyes or shifted axles during the inspection.
