6.0 Inch Knuckle Suspension Lift Kit with NGS Shocks (Nitrogen Gas Charged)

Trail Master

Shop Trail Master Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Trail Master 6-inch knuckle suspension lift kit with NGS nitrogen gas shocks
  • Cast ductile steel knuckles and front steel strut spacers
  • Rear lift blocks, U-bolts and add-a-leaf

Description

Overview

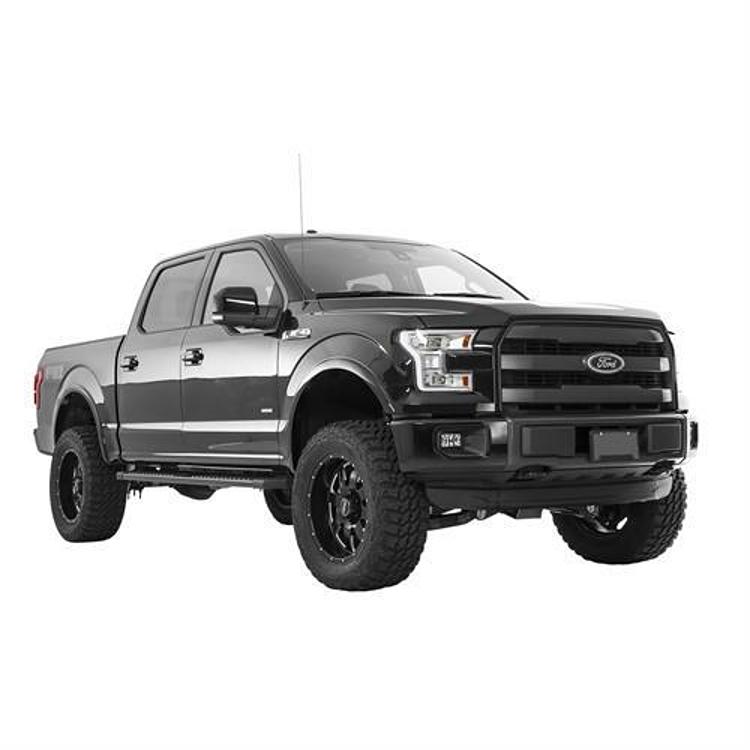

The Trail Master 6-inch Knuckle Suspension Lift Kit with NGS Shocks is a full front and rear lift for Ford F-150 pickups. It gives a 6-inch front lift from steel strut spacers and a 5-inch rear lift from a cast lift block, and it is designed to clear 35×12.50 tires.

Trail Master’s front components are CNC machined cast ductile steel knuckles, which keep steering geometry and alignment in line with the lifted height. Front and rear high-clearance crossmembers, a differential skid plate and robust differential mounts hold the front differential in place without changing the front track width.

The front 6 inches come from the steel strut spacers, and the knuckles keep the steering geometry correct at the new height. The rear lift block keeps the OE-style bump pad, which Trail Master says keeps the factory bump stop working correctly when the truck is towing or carrying cargo.

Key features

  • 6-inch front lift from heavy-duty steel strut spacers
  • 5-inch rear lift from a cast rear lift block that keeps the OE-style bump pad
  • CNC machined cast ductile steel knuckles
  • Front and rear high-clearance crossmembers and a differential skid plate
  • Nitrogen gas charged NGS shocks for the rear
  • Driveshaft spacers included

Driveline and alignment checks

A lift changes the angles in the driveline, and those angles affect vibration and wear. Measure the driveshaft angles before and after the lift and note any change. Shock length, brake hose length and sway bar links should also be checked, because each can be pulled into a new position by the taller ride height.

Tire choice matters as well. Larger tires add rotating weight and change gearing, while wheel offset decides whether the tire rubs the fender or suspension. Check clearance at full steering lock and under full compression before the truck goes on the trail.

  • Check driveshaft angles and U-joint condition
  • Confirm brake hose length at full droop
  • Inspect the steering linkage for tight clearance
  • Recheck lug nut torque after the first drives

Specifications

Brand Trail Master
UPC 700007521961
Front lift 6 inches, steel strut spacers
Rear lift 5 inches, cast lift block
Shocks Nitrogen gas charged NGS, rear
Maximum tire size 35×12.50
Lift height range 5 to 6.99 inches

Vehicle fitment

The kit is for Ford F-150 pickups in the 2014 to 2017 and 2015 to 2018 year ranges. Confirm your exact year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The kit uses steel strut spacers in front and a block with an OE-style bump pad in the rear, so it needs a full alignment and a check of driveline angles after installation.

What’s included

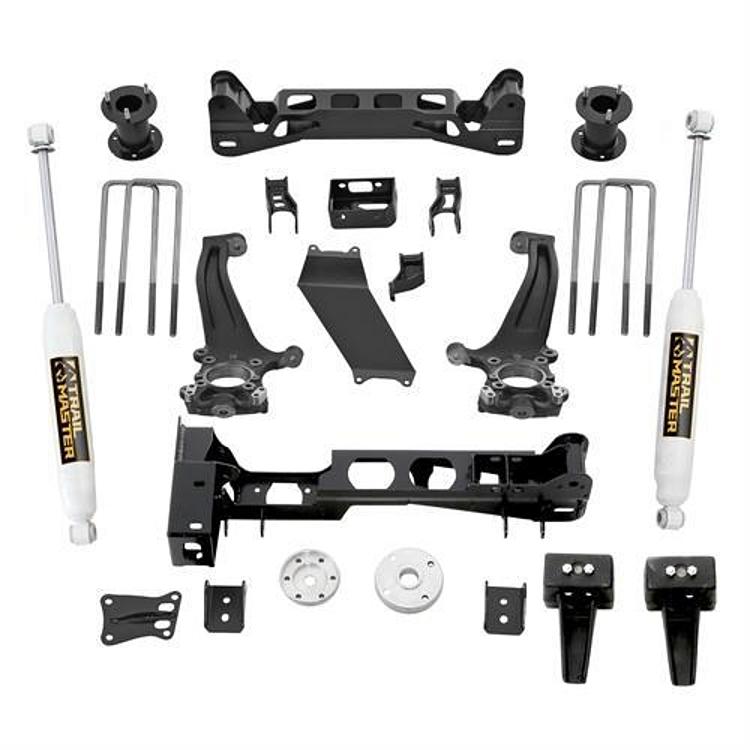

The kit includes the knuckles, strut spacers, crossmembers, differential skid plate, rear lift block, NGS rear shocks and driveshaft spacers.

SKU: T/MTM419N Category:

Specification

Shipping weight 274.00 lbs
Package dimensions 48.00 × 48.00 × 48.00 in
brands

Questions & Answers

What lift does the Trail Master 6-inch knuckle kit give a Ford F-150?

It gives a 6-inch front lift from steel strut spacers and a 5-inch rear lift from a cast lift block, which falls in the 5 to 6.99 inch range.

What size tires does this Trail Master kit clear?

The kit is designed to clear 35x12.50 tires, which is the maximum tire size for this kit. Confirm clearance on your truck before installing.

Are the shocks included?

Yes. The kit includes Trail Master nitrogen gas charged NGS shocks for the rear, and the title and short description both list them.

Does a lift kit like this change ride quality?

Yes. A lift changes ride height and suspension geometry, so the truck can feel different on pavement and off it. Shock selection and a full alignment after installation help keep handling predictable. Expect some change in steering feel at highway speed.
