Overview

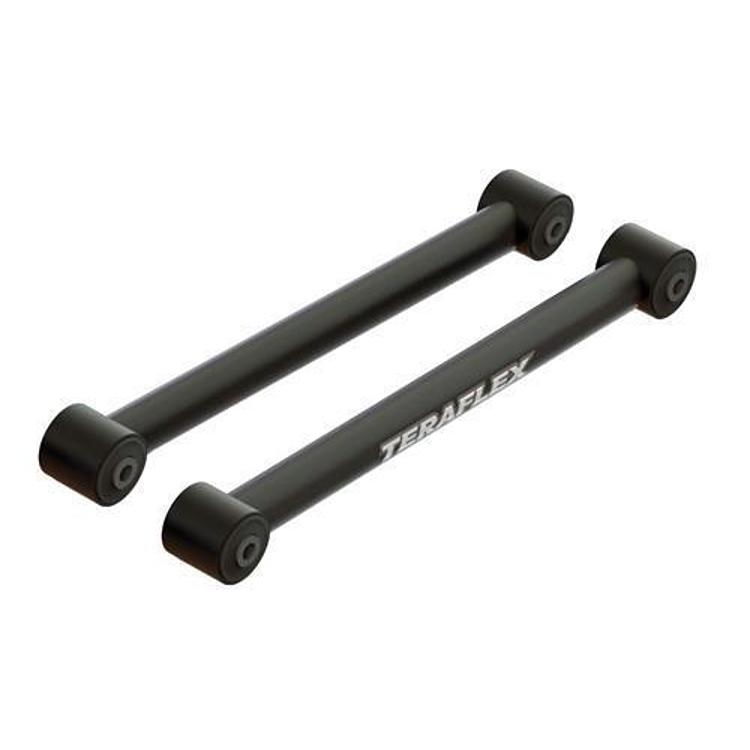

The TeraFlex 1252100 is a rear lower Sport FlexArm, sold as a pair, for 2.5 to 3 inch lifts on 2007–2016 Jeep Wrangler (JK) 2-door and 4-door vehicles. Each arm is fixed in length and pre-adjusted to correct caster and pinion angle for that lift height. Check the position against the arm you are replacing, since this is a rear lower arm. The Sport line is built for owners who want a flexarm that needs no routine adjustment after installation.
The arms are made from 1-5/8 inch x 0.156 wall DOM tubing with a premium black e-dipped coating for durability and corrosion resistance. Factory style bushings damp vibration and keep the ride comfortable on pavement. The full range of movement leaves articulation unrestricted off-road. Installation time is 1.5 hours.
Key features
- Fixed-length Sport design with a pre-adjusted length
- Corrects caster and pinion angle for a 2.5 to 3 inch lift
- 1-5/8 inch x 0.156 wall DOM tubing
- Factory style bushings for vibration damping
- Premium black e-dipped coating for durability and corrosion resistance
- Full range of movement
- Maintenance free design
Before you install
A lower flexarm controls the axle’s position under the vehicle, so installing one is more than a bolt-on swap. Support the axle properly, check that the arm moves freely through its full travel before the wheels touch the ground, and look for binding at the bushings or contact with the frame, crossmember and brake lines.
Lower arms often get inspected alongside the upper arms, track bar and driveline, since worn joints in any of them change the geometry the new arm is meant to set. After the first few trail runs, re-check the hardware torque and look for coating damage where the arm rubs or takes impacts. Replacing a pair together keeps both sides matched.
Keep notes of the arm position and any shim or spacer changes so a later alignment can be compared against the original setup.
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1252100 |
| UPC | 843885033172 |
| Position | Rear lower |
| Lift height | 2.5 to 3 inch |
| Tubing | 1-5/8 inch x 0.156 wall DOM |
| Bushings | Factory style |
| Finish | Premium black e-dipped coating |
| Install time | 1.5 hours |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2007–2016 Jeep Wrangler (JK) in the 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims, plus their Unlimited counterparts.
Not covered: the later Wrangler JL, the earlier TJ and LJ generations, and the Gladiator.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This rear lower arm sets caster and pinion angle for a 2.5 to 3 inch lift, so have the front end aligned after installation and check driveline angles at the lift height you run.
What’s included
Sold as a pair. Check the package contents against your installation before starting.
