Overview

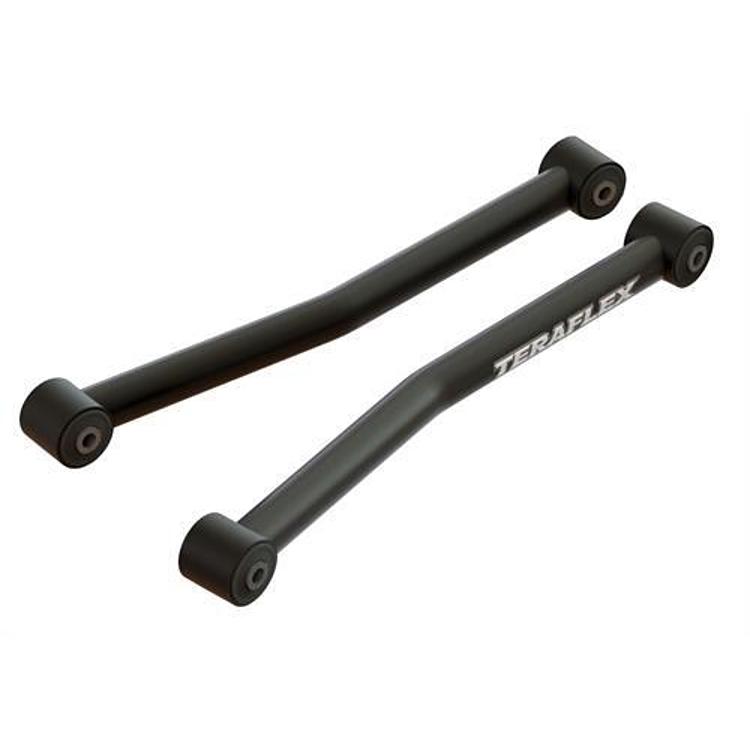

The TeraFlex 1252000 is a front lower Sport FlexArm kit for 2.5 to 3 inch lifts on 2007–2016 Jeep Wrangler (JK) 2-door and 4-door models. Each fixed-length arm is pre-adjusted so caster and pinion angle are corrected for that lift height, which keeps the front lower control arm geometry where it should be once a lift is installed. TeraFlex builds these flexarms for owners who want a maintenance free arm rather than an adjustable one.
The arms are made from 1-5/8 inch x 0.156 wall DOM tube, built for trail use. Factory style bushings damp vibration and keep the ride comfortable on pavement. The full range of movement is designed not to restrict articulation off-road. Installation time is 1.5 hours.
Key features
- Fixed-length Sport design, pre-adjusted to correct caster and pinion angle for a 2.5 to 3 inch lift
- 1-5/8 inch x 0.156 wall DOM tube
- Factory style bushings for vibration damping and ride quality
- Premium black e-dipped coating for durability and corrosion resistance
- Full range of movement intended to avoid restricting articulation
- Maintenance free design
- Direct fit listing for the front lower position
Caster and pinion after a lift
Caster and pinion angle change when the body is raised, and a fixed-length arm is set to hold those angles at one lift height. Once the arms are in, the front end should be aligned, and the driveline angles should be checked at the height you actually run. A pinion that sits at the wrong angle can cause vibration at speed.
Fixed-length arms have no field adjustment, so any later change in lift height calls for a new check. Inspect the bushings and mounting hardware during routine service, especially after hard trail use, and keep track of any changes to tire size or suspension height.
- Align the front end after installation
- Check driveline angles at the lift height you run
- Re-check hardware after hard trail use
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1252000 |
| UPC | 843885033165 |
| Position | Front lower |
| Lift height | 2.5 to 3 inch |
| Tubing | 1-5/8 inch x 0.156 wall DOM |
| Bushings | Factory style |
| Finish | Premium black e-dipped coating |
| Fitment type | Direct fit |
Vehicle fitment
It fits 2007–2016 Jeep Wrangler (JK) in the 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims, including Unlimited versions. The later Wrangler JL, the earlier TJ and LJ generations, and the Gladiator are outside that coverage.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the arm corrects caster and pinion angle for a 2.5 to 3 inch lift, have the front alignment checked after installation and confirm driveline angles at the lift height you run.
What’s included
Check the arm count and hardware against your installation before starting.
