Overview

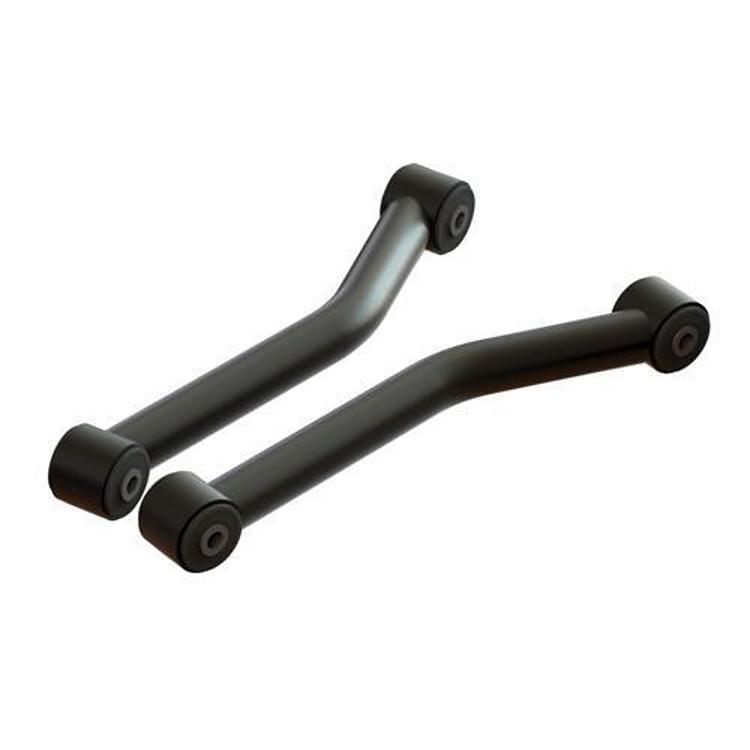

The TeraFlex 1252300 is a rear upper Sport FlexArm, sold as a pair, for 2.5 to 3 inch lifts on 2007–2016 Jeep Wrangler (JK) 2-door and 4-door models. The upper arm uses a fixed, pre-adjusted length to correct caster and pinion angle at that lift height, so no field adjustment is needed. TeraFlex positions the Sport arms as maintenance free parts.
Built from 1-5/8 inch x 0.156 wall DOM tube, the arm has a black e-dipped finish designed for durability and corrosion resistance. Factory style bushings damp vibration for a smoother ride. The range of movement is full, so the arm does not restrict articulation. Install time is 2 hours.
Key features
- Pre-adjusted, fixed length for 2.5 to 3 inch lifts
- Corrects caster and pinion angle at the set length
- Rear upper position, sold as a pair
- 1-5/8 inch x 0.156 wall DOM tube
- Factory style bushings for vibration damping
- Premium black e-dipped coating for durability and corrosion resistance
- Full range of movement, per the manufacturer
Driveline angles after a lift
A lift changes the geometry of the control arms, so caster and pinion angle move. Upper arms set to the right length help keep the axle in line with the driveshaft and reduce vibration at speed. Because this arm has a fixed length, the lift height it is matched to matters more than it would on an adjustable part.
Check the bushings for splits or hardening every time you service the suspension, and look at the tube welds and coating for scrapes that let rust start. When fitting the arms, tighten the fasteners to specification with the axle under load and recheck the alignment after the first few trail runs. Pair the arms with the lower control arms and track bar when those are being replaced.
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1252300 |
| UPC | 843885033158 |
| Position | Rear upper |
| Lift height | 2.5 to 3 inch |
| Tubing | 1-5/8 inch x 0.156 wall DOM |
| Bushings | Factory style |
| Finish | Premium black e-dipped coating |
| Install time | 2 hours |
| Sold as | Pair |
| Fitment type | Direct fit |
Vehicle fitment
It fits 2007–2016 Jeep Wrangler JK models, covering the 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims in both body styles.
Not covered: the JL generation, the TJ and LJ generations, and the Gladiator, none of which appear on the fitment data.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the arm corrects caster and pinion angle for a 2.5 to 3 inch lift, have the alignment checked once it is installed and confirm the driveline angles.
What’s included
Sold as a pair. Check the package contents for hardware and fasteners against your installation before starting.
