Overview
The TeraFlex 1241350 is a 3-inch lift kit with front and rear coil springs and 9550 shocks at both ends. The kit adds a track bar bracket and sway bar links to the rear suspension. It is designed for off-road use while keeping a comfortable highway ride.
Key features
- 3-inch lift
- Front and rear coil springs
- Front and rear 9550 shocks
- Rear track bar bracket
- Rear sway bar links
- Bump stops included
Coil springs and shock choices
Coil spring lifts raise the vehicle by changing spring rate and height at the same time, so the ride feel changes as well. Replacing the stock coils and shocks together keeps the suspension working as a matched set. On a TJ, the track bar is the link that keeps the axle centered, so its position matters after a lift.
Off-road use puts more stress on bump stops and sway bar links, so inspect them after a few trail outings. Driveline angles should be measured once the springs settle, since higher ride height can introduce vibration at highway speeds. Tires that are much larger than stock add rotating mass and may need gearing or a larger spare.
- Check bump stops for wear after rough trail use
- Re-torque track bar and sway bar hardware
- Measure driveline angles after the springs settle
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1241350 |
| UPC | 843885020325 |
| Lift height | 3 inches |
| Lift height range | 3 to 4.99 inches |
| Shock series | 9550 |
| Suspension type | Coil spring kit |
| Shocks | Included, front and rear |
| Fitment type | Direct fit |
Vehicle fitment
It fits all Wrangler models, including the Rubicon. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm the generation, year and model of your Wrangler before ordering.
Installation notes
The kit includes a track bar bracket and sway bar links, so the rear track bar and sway bar should be checked during installation. The coil springs and shocks are replaced, and driveline angles should be measured afterward.

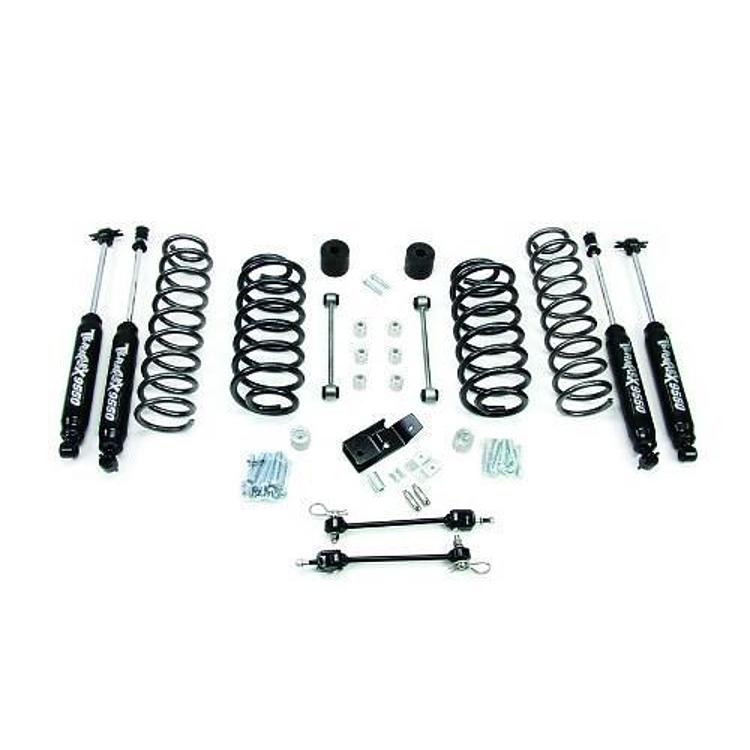

What’s included
- Front and rear coil springs
- Front and rear 9550 shocks
- Rear track bar bracket
- Rear sway bar links
- Bump stops
- Hardware
