Overview
The TeraFlex 1151401 is a 4 inch basic suspension lift kit for four-door 2007–2015 Jeep Wranglers. It is offered for the 70th Anniversary, Rubicon, Sahara, Sport, Unlimited and X models and fits all JK Wranglers, including Rubicon and Unlimited.
It includes 4 inch lift coil springs, front sway bar disconnects, rear sway bar links, a rear track bar bracket, bump stops and all necessary hardware. It allows tires up to 37 inches with aftermarket wheels of 4.5 inch backspacing or less.
This is not an all-inclusive kit. A front adjustable trackbar and adjustable control arms are needed for proper alignment and drivability, and driveshaft modifications are highly recommended. The 4 inch lift falls within the 3 to 4.99 inch range.
Key features
- 4 inch lift coil springs
- Front sway bar disconnects
- Rear sway bar links
- Rear track bar bracket
- Bump stops and all necessary hardware
- Up to 37 inch tires with 4.5 inch backspacing or less wheels
Building a complete JK lift
A basic lift kit provides the springs, spacers and sway bar parts, but a complete JK setup usually adds a trackbar, control arms and shocks to control the axles. Without those parts, the alignment can drift and the axles can wander on uneven ground. Planning the full build before buying helps avoid a truck that is raised but not fully controlled.
Coil springs and spacers change ride height, so the shocks should be sized for the new height. Sway bar disconnects alter body roll, and bump stops limit the travel at the end of the stroke. Inspect the bump stops, bushings and bracket bolts for wear as part of routine service.
- Choose shocks sized for the new ride height
- Plan for a trackbar and control arms
- Inspect bump stops and bushings during service
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1151401 |
| UPC | 843885019886 |
| Lift | 4 inch |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Coil spring kit |
| Body style | Four-door models |
| Max tire size | 37 |
| Shocks | Not included |
Vehicle fitment
It is a direct fit for the 2007–2015 Jeep Wrangler JK, in the 70th Anniversary, Rubicon, Sahara, Sport, Unlimited and X models.
Two-door Wranglers and JK years outside 2007–2015 fall outside this kit’s fit. Confirm the body style and year against your vehicle before ordering.
Installation notes
Install a front adjustable trackbar and adjustable control arms for proper alignment and drivability. Driveshaft modifications are highly recommended, and 2012 and later JKs need exhaust spacers or another exhaust modification.
What’s included

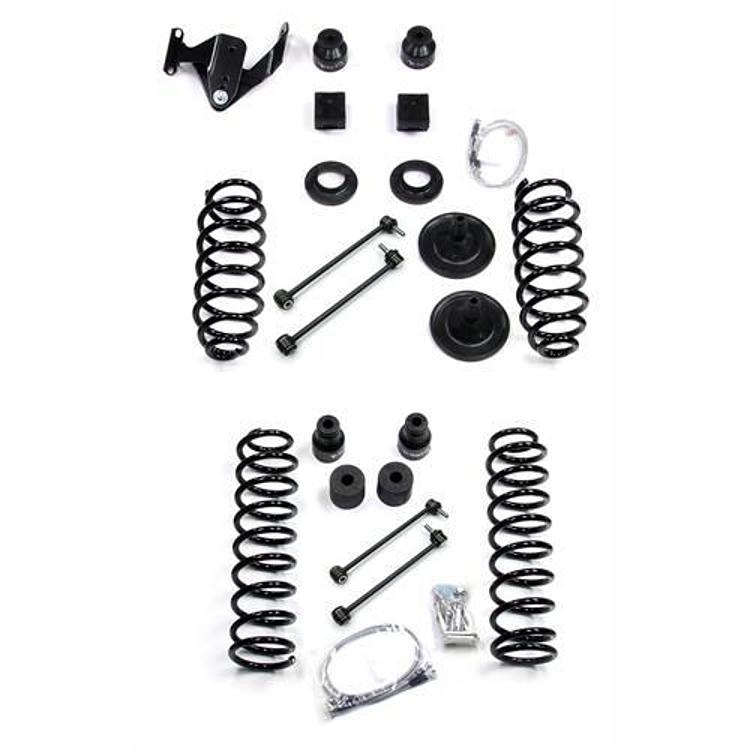

The kit includes 4 inch lift coil springs, front sway bar disconnects, rear sway bar links, a rear track bar bracket, bump stops and all necessary hardware.
Not included: Shocks, plus the front adjustable trackbar and adjustable control arms needed for alignment.
