TeraFlex 3 Inch Lift Kit with Full Flex Arms – 1256200

TeraFlex

Shop Jeep Wrangler JK Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • TeraFlex 1256200 3 inch lift with Full Flex arms for 2007–2015 Jeep Wrangler JK four-door
  • Shocks included
  • Front lower and rear upper Full Flex control arms
  • Front sway bar disconnects and rear sway bar links
  • Max tire size 35×12.50; part number 1256200

Description

Overview

The TeraFlex 1256200 is a 3 inch lift kit with Full Flex arms for the four-door 2007–2015 Jeep Wrangler (JK). The kit includes shocks, along with front lower FlexArms and rear upper FlexArms, so the arms are a central part of the lift.

The system also includes front sway bar disconnects, rear sway bar links, a rear track bar bracket, bump stops and all the necessary hardware. The short details give a maximum tire size of 35×12.50, and the lift height range is 3 to 4.99 inches.

The Full Flex arms change the control arm geometry, so the alignment should be checked after installation. The kit is a coil spring kit with shocks included.

Key features

  • 3 inch lift height range
  • Front lower FlexArms
  • Rear upper FlexArms
  • Shocks included
  • Front sway bar disconnects
  • Rear sway bar links and rear track bar bracket
  • Bump stops and all necessary hardware

Control arm geometry

Full Flex arms set the axle position and pinion angle, which together decide how the driveline and steering behave after the lift. Changing the arm geometry shifts caster and toe, so alignment is a required step rather than an option. A shop with a four-wheel alignment rack and experience on lifted Jeeps is worth choosing for this job.

Arm bushings and mounting hardware take the most load during articulation. Loose or cracked bushings can cause clunks, uneven tire wear and steering wander, so they should be inspected at the first service and at regular intervals. Driveline angles deserve a look too, since altered control arm angles affect the driveshaft.

  • Alignment after installation
  • Pinion and driveshaft angles
  • Arm bushing inspection
  • Bolt torque after the first drives

Specifications

Brand TeraFlex
Part number 1256200
UPC 843885020677
Lift height range 3 to 4.99 inches
Suspension type Coil spring kit
Rear lift method Coil springs
Front shocks 9550 VSS
Body style Four-door models
Max tire size 35×12.50

Vehicle fitment

It fits the 2007–2015 Jeep Wrangler (JK), including the 70th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X and X models.

It fits four-door models, so two-door Wranglers are not covered by this configuration. Model years outside 2007–2015 are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Full Flex control arms change the front and rear geometry, so the alignment and the driveline angles should be checked after the lift is installed. The sway bar disconnects also change the sway bar setup.

What’s included

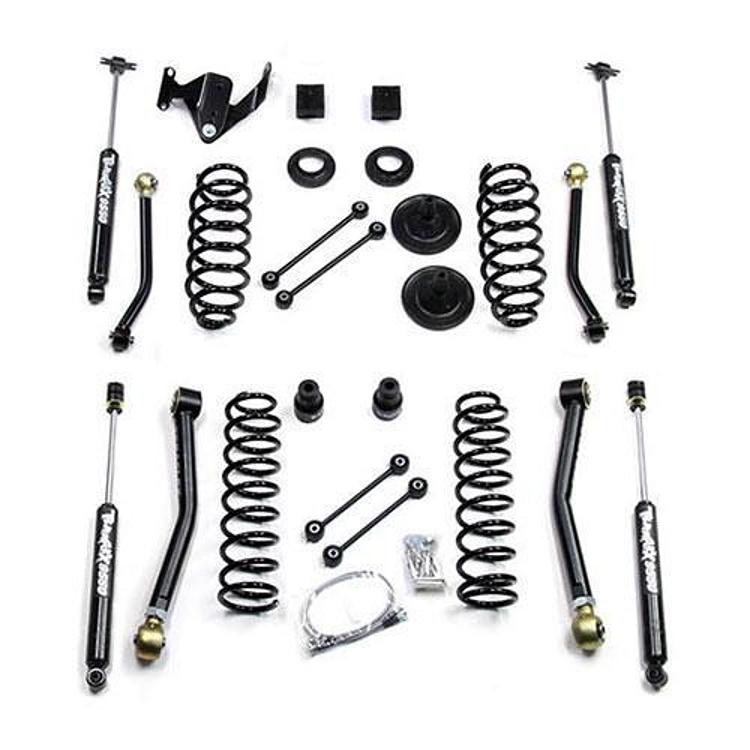

The kit includes a 3 inch lift, shocks, front lower FlexArms, rear upper FlexArms, front sway bar disconnects, rear sway bar links, a rear track bar bracket, bump stops and all necessary hardware.

SKU: TER1256200 Category:

Specification

Shipping weight 127.50 lbs
Package dimensions 27.00 × 20.00 × 14.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201570th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the TeraFlex 1256200 fit a four-door Wrangler JK?

Yes. The 1256200 is a four-door kit and fits the 2007–2015 Jeep Wrangler (JK). Confirm the year and trim before ordering.

Does the 1256200 include shocks?

Yes. The kit includes shocks, and the specifications list 9550 VSS shocks at the front. Those shocks are supplied with the Full Flex arms and the 3 inch lift.

Which control arms come with the 1256200?

The kit includes front lower FlexArms and rear upper FlexArms, which change the control arm geometry of the lift. The alignment should be checked after the arms are installed.

Can the Full Flex arms be fitted with other lift parts?

Yes, but check that each added part works with the arm geometry. Adding a different track bar, shock or control arm component changes the setup, so confirm alignment and driveline angles after any change.
