Rubicon Express Super-Ride PTMEG Control Arm Bushing 9/16 Inch ID (Black) – RE3786

Rubicon Express

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Super-Ride control arm bushing with a PTMEG polymer body and steel sleeve
  • 9/16 inch inside diameter, black, field serviceable
  • Retrofits all Rubicon Express control arms
  • Lifetime warranty per the manufacturer

Description

Overview

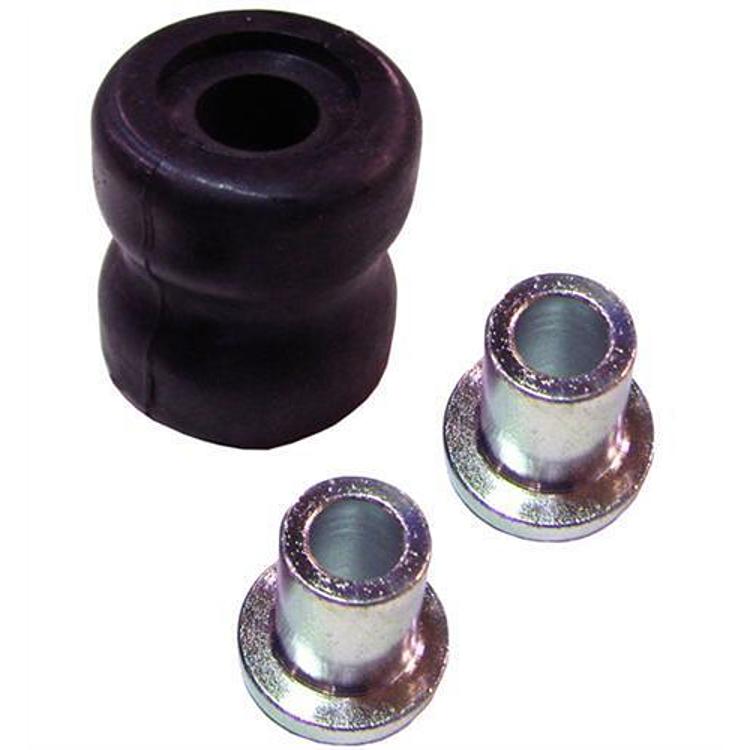

The Rubicon Express RE3786 is a Super-Ride control arm bushing with a PTMEG body, which stands for polytetramethylene ether glycol. It has a steel sleeve, replaces factory bushings, can be field serviced on the trail, and retrofits all Rubicon Express control arms. The inside diameter is 9/16 inch and the finish is black.

The PTMEG material is rated at 88A durometer. Its polymer body is built for durability and keeps the extreme articulation trail builders want while adding control. A lifetime warranty covers the bushing.

A bushing has to match the control arm bore and the arm design. Confirm the arm and your vehicle’s year, model and trim before ordering.

Key features

  • PTMEG bushing body
  • Steel sleeve
  • 88A durometer rating, per the manufacturer
  • 9/16 inch inside diameter
  • Black finish
  • Field serviceable and easy to lubricate on the trail.
  • Retrofits all Rubicon Express control arms
  • Lifetime warranty, per the manufacturer

Caring for control arm bushings

Control arm bushings carry the load where the arm meets the axle or frame, so they are one of the first wear points on a trail rig. Over time a bushing can flatten, crack or develop play, which shows up as clunking over ledges or an uneven steering feel. Inspecting the bushings during regular maintenance helps catch wear before it affects the arm’s alignment.

A polymer body with a steel sleeve is designed to hold its shape under load and resist the movement that wears out rubber. When fitting a new bushing, keep the bore clean and free of old grease, and press the bushing square so the sleeve is not pinched. Lubricate the bushing at a regular interval, and check the arm bolts after the first few trail outings.

  • Look for cracks or splits in the polymer body
  • Check for play by rocking the arm by hand
  • Re-check arm bolts after the first trail runs

Specifications

Brand Rubicon Express
Part number RE3786
UPC 614901440904
Type Super-Ride PTMEG control arm bushing
Material PTMEG with steel sleeve
Durometer 88A
Inside diameter 9/16 inch
Color Black
Fitment listed Universal fit

Vehicle fitment

Confirm the control arm bore and arm design on your vehicle before ordering, since this bushing must match both.

The bushing is intended for Rubicon Express control arms, so confirm the arm design and bore size on the vehicle. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Pressing the bushing into the arm needs the correct tools and a clean bore. The bushing is designed to install and lubricate easily, and it can be serviced on the trail. Check the fit before the arm goes onto the vehicle.

What’s included

One black PTMEG control arm bushing with a steel sleeve and an inside diameter of 9/16 inch. Check the package contents against your installation before starting.

SKU: R/ERE3786 Category:

Specification

Shipping weight 1.00 lbs
Package dimensions 6.00 × 4.00 × 3.50 in
brands

Questions & Answers

What is the durometer of the RE3786?

The RE3786 has a durometer rating of 88A. The PTMEG bushing material is designed for durability, and the bushing carries a lifetime warranty.

Will the RE3786 fit any control arm?

It retrofits all Rubicon Express control arms. Confirm the arm design and bore size on your vehicle before ordering, since the fit depends on the bore and arm.

Can the RE3786 be serviced on the trail?

Yes. It can be field serviced and lubricated on the trail, which keeps routine upkeep simple away from the shop, though the arm still needs a clean bore for pressing in.

Should control arm bushings be replaced in pairs?

Often yes. Bushings on the same axle or side wear at similar rates, so replacing both sides together keeps the control arm geometry consistent.

Can a worn bushing be pressed out without removing the arm?

Usually the arm must come off the vehicle so the bushing can be pressed out and the new one seated square in a clean bore. Removing the arm also lets you inspect the bore for damage before installing a new bushing.
