Rubicon Express Super-Ride PTMEG Weld in Bushing Kit (Black) – RE3765

Rubicon Express

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Large PTMEG weld-in control arm bushing kit
  • Includes bushing, outer sleeve and two-piece inner sleeve
  • Welding required
  • Accepts a 9/16-inch bolt
  • Lifetime warranty

Description

Overview

The Rubicon Express RE3765 is a universal builder bushing kit for weld-in control arms. Each kit contains one stamped end ring, one rubber PTMEG Super-Ride bushing and two metal sleeves. The end ring is 2.25 inches outside diameter and 2 inches wide, with sleeves that are 2.625 inches overall length, and the kit accepts a 9/16-inch bolt.

Rubicon Express describes PTMEG as the toughest and most durable bushing material available commercially, with an 88A durometer rating. The kit is black, and Rubicon Express gives it a lifetime warranty against failure.

Key features

  • Large PTMEG bushing
  • Stamped end ring, 2.25-inch OD by 2-inch wide
  • Two-piece metal inner sleeve
  • Accepts a 9/16-inch bolt
  • 88A durometer PTMEG
  • Black finish

Welding and arm preparation

Weld-in bushing kits are set into a control arm that has been cut or fabricated to accept the stamped end ring. The end ring must sit square and be welded fully around its edge, since the arm carries suspension loads and weak welds can fail under them. Fixture the end ring before welding, and let the weld cool slowly to limit distortion.

A PTMEG bushing should be kept clean and away from heat during welding. Remove it or protect it from spatter before any work near the end ring. Lubricate the bushing and sleeves before installing them, and test-fit the 9/16-inch bolt before final assembly.

  • Verify wall thickness and weld access before cutting the arm
  • Test-fit the sleeves and bolt before final welding
  • Have the completed arm inspected before it goes into service

Specifications

Brand Rubicon Express
Part number RE3765
UPC 614901440706
End ring 2.25-inch OD, 2-inch wide, stamped
Sleeve length 2.625 inches overall
Bolt size 9/16-inch
Material PTMEG
Durometer 88A
Color Black

Vehicle fitment

Confirm fit for your vehicle’s year, model and trim before ordering. Because this is a universal builder part, check the control arm you are building against your application before welding.

Installation notes

Welding is required to set the end ring into the control arm. Professional welding is a sensible choice for a control arm, since the arm carries suspension loads.

The PTMEG bushing is a flexible design built to handle articulation. The two metal sleeves sit inside the bushing, so the kit is welded into the arm as one unit.

What’s included

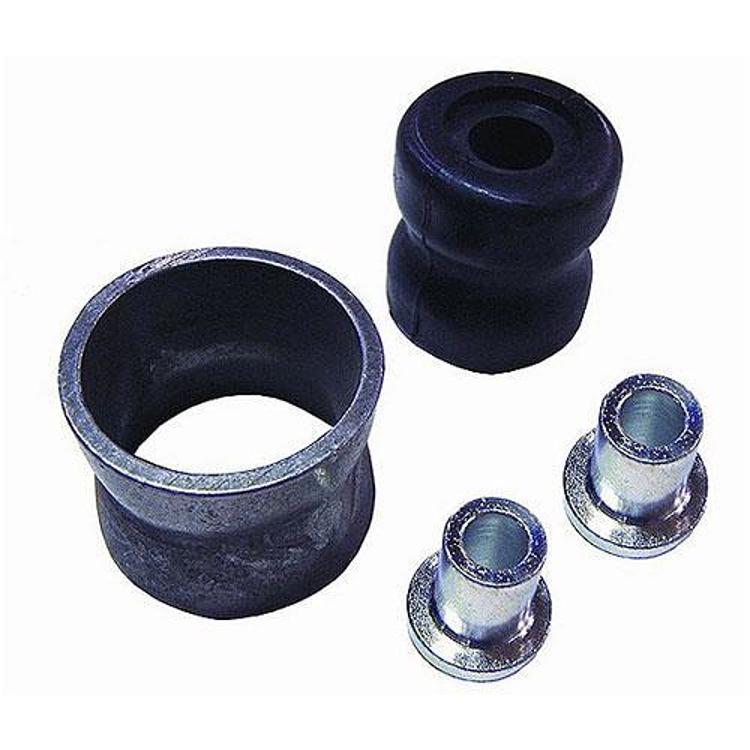

One stamped end ring, one PTMEG bushing and two metal sleeves.

SKU: R/ERE3765 Category:

Specification

Shipping weight 1.45 lbs
Package dimensions 4.30 × 3.50 × 2.50 in
brands

Questions & Answers

Is this bushing kit vehicle-specific?

It is a universal builder part, and no specific vehicle is listed. Fitment isn't confirmed for any particular truck, so check your control arm before welding.

Does it need welding?

Yes. Welding is required because the kit is a weld-in bushing. The kit includes the end ring, bushing and sleeves, and the end ring is 2.25 inches outside diameter.

What bolt does it take?

The kit accepts a 9/16-inch bolt. The bushing is PTMEG with an 88A durometer rating, and Rubicon Express backs it with a lifetime warranty.

Can I install this kit without welding?

No. The kit is a weld-in design, so the end ring has to be welded into the control arm. Confirm fit for your vehicle's year, model and trim before ordering, and have the weld done by someone experienced with suspension parts.

How often should a welded bushing be inspected?

Inspect it at each service interval and after hard trail use. Look for cracked welds, rubber tearing or separation, and play at the bolt. Early checks catch problems before they affect steering or axle position.
