Overview

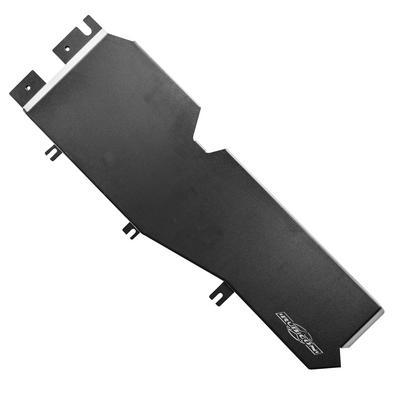

The Rubicon Express Gas Tank Skid Plate, part number REA1024 (R/EREA1024), is a black powder coated fuel tank skid plate for the 2020–2022 Jeep Gladiator (JT).
This fuel tank plate is one of several skid plates for the Gladiator, which also cover the engine oil pan, transmission and transfer case. Each is CNC laser cut from 3/16-inch steel and mounts up tight to the drivetrain to help maintain ground clearance. The plates form a modular system, so they can be added one at a time. The black powder coat helps protect the steel from rust between trips, and the plate installs without cutting or drilling.
Key features
- Gas tank skid plate for the Jeep Gladiator JT
- CNC laser cut from 3/16″ steel
- Black powder coat finish
- No cutting or drilling required
- Designed to mount up tight to the drivetrain to maximize ground clearance
- Part of a modular skid plate system, so plates can be added one at a time
Gladiator undercarriage care
The Gladiator’s fuel tank sits low between the axles, where it can meet rocks and ruts on a trail. A skid plate takes those impacts across a larger area, which helps keep the tank and its fittings from being struck directly. Protection is most useful when the plate is kept clean and free of trapped mud.
Black powder coat helps resist rust on exposed steel, but scratches expose bare metal to moisture and road salt. Check the finish after trail use and touch up chips with a suitable coating. Inspect the plate’s fasteners for looseness, since vibration over rough ground can back them out over time.
- Wash mud from the plate after off-road use
- Touch up chips in the powder coat promptly
- Check mounting fasteners after the first few trips
- Look for bent edges that could contact the tank
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | R/EREA1024 |
| Product type | Gas tank skid plate |
| Material | Steel, 3/16″ thick |
| Manufacturing | CNC laser cut |
| Finish | Black powder coat |
| Fitment type | Direct fit |
| Installation type | No cutting or drilling required |
Vehicle fitment
It is for the Jeep Gladiator (JT) in model years 2020 through 2022.
It fits only the Gladiator (JT) from 2020 to 2022. Wrangler, JK and JL models are not covered. Check fit against your vehicle’s year, model and trim before ordering.
Installation notes
Rubicon Express says no cutting or drilling is required, so the plate is intended to mount to existing points.
What’s included
Gather the fasteners you need before starting the install.
