Overview

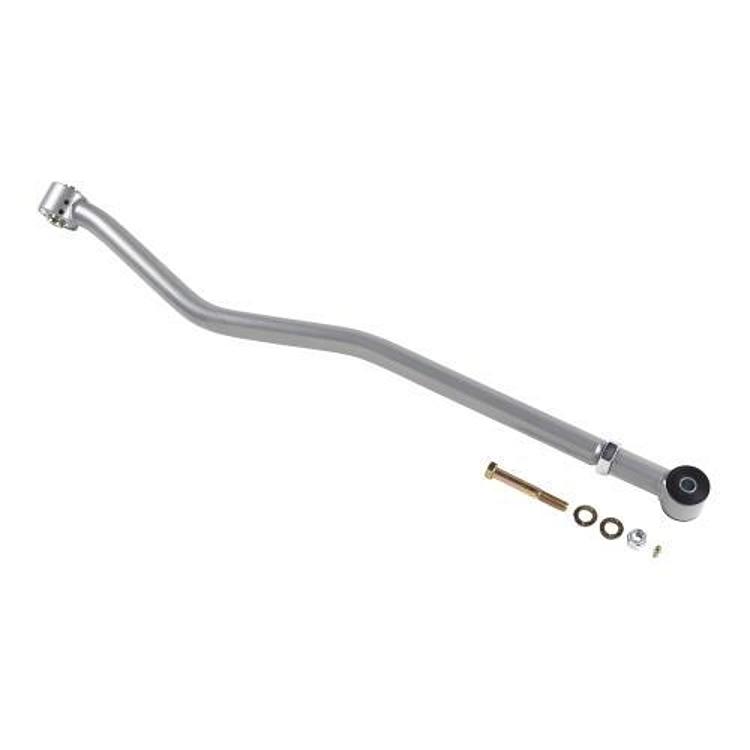

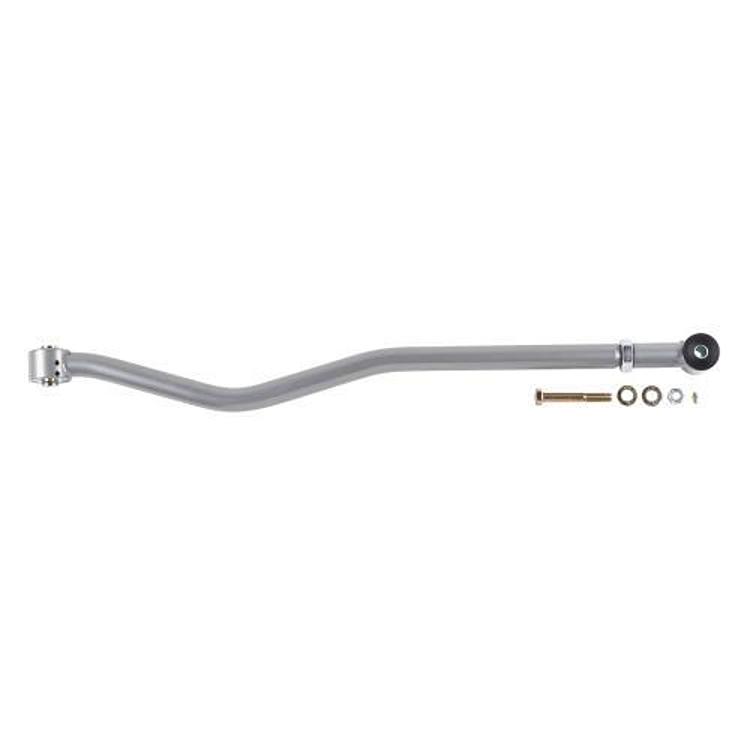

The Rubicon Express RE1680 is an extreme duty adjustable front track bar made from chromoly, designed to correct alignment and handling on lifted vehicles. It is sold for 2-door and 4-door models.
The track bar allows more wheel travel than a stock unit and uses a replaceable rod end for future service. It must be mounted with the RE1675 front track bar bracket.
Key features
- Extreme duty construction
- Adjustable front track bar
- Chromoly construction
- Replaceable rod end
- More wheel travel than a stock track bar
Bracket and wheel travel
A front track bar holds the axle centered side to side, and on a lifted vehicle it works hardest at full wheel travel. Extra travel lets the suspension cycle farther, but it also moves the bar ends through a bigger arc, so the bar and its mounting points see more load. Because the bar mounts through a separate bracket, the bracket and bar should be checked together for alignment before the first drive.
Once the bar is set, check wheel travel and clearance by turning the wheels to full lock and cycling the suspension by hand. Look for contact with brake lines, the steering box and the frame. Inspect the rod end for play after rough use, and replace it when movement appears, since a loose end changes centering and steering feel.
- Check clearance at full lock and full travel
- Inspect the rod end after rough use
- Keep bracket and bar hardware tight
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE1680 |
| UPC | 614901438864 |
| Position | Front |
| Material | Chromoly |
| Rod end | Replaceable |
| Body style | 2-door and 4-door |
Vehicle fitment
It mounts to the Jeep with the RE1675 front track bar bracket. Check the bracket and track bar against your vehicle’s year, model and trim before ordering.
Confirm the bracket and track bar are compatible with your vehicle. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The track bar cannot be installed without the RE1675 bracket, so order both parts together. Check the wheel travel and clearance once the bar is set.
What’s included
One extreme duty adjustable front track bar.
Not included: the RE1675 track bar bracket, which is required for mounting.
