Overview

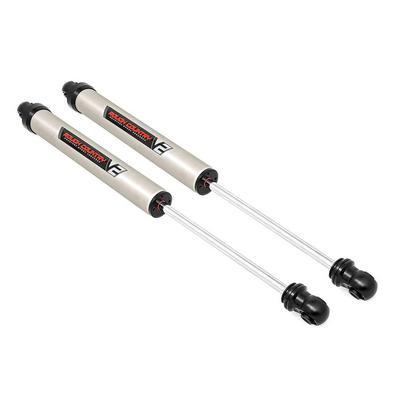

The Rough Country V2 rear monotube shock R/C760744_F is a nitrogen-charged rear shock for 2020–2026 Chevrolet Silverado 2500 HD and 3500 HD and GMC Sierra 2500 HD and 3500 HD trucks with a 3.5 to 7.5 inch lift. It is a monotube design and a direct fit for those models.
A floating piston inside the body keeps the oil and high-pressure nitrogen separated, which supports a fast response without cavitation. The piston is 46mm and high-flow, and the V2 is designed to be mounted body-up. Because the lift range is wide, confirm your truck’s rear ride height before ordering.
Key features
- Monotube body with nitrogen charge
- Floating piston separates oil and nitrogen
- Internal 46mm high-flow piston
- Aluminum body said to shed heat faster
- Designed for body-up mounting
- Direct fit for the listed heavy-duty trucks
Before you install
Rear shocks on heavy-duty trucks carry a lot of load, especially when towing or hauling, so the damping and the mounts take steady stress over time. A monotube body with a separate floating piston keeps the damping fluid and gas from mixing, which helps the shock hold its response during repeated compression. When the lift is raised, the shock’s length and angle change, so the mount geometry and the driveline angles should be checked after the work is complete.
Inspect the shock every few months for oil seepage on the body, a loose upper or lower mount, and bushings that have cracked or flattened. A shock that feels bouncy over bumps, or that makes a knocking sound at the end of its travel, may be worn and due for replacement. When the rear springs or track bar are changed, the rear shocks are often inspected at the same time.
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C760744_F |
| Product line | V2 Series |
| Shock type | Monotube |
| Position | Rear |
| Lift height | 3.5-7.5 in. |
| Piston | 46mm high-flow, internal floating design |
| Charge | Nitrogen |
| Mounting | Body-up |
| Fitment | Direct fit |
Vehicle fitment
The shock fits 2020–2026 Chevrolet Silverado 2500 HD in Custom, High Country, LT, LTZ and WT models, 2020–2026 Silverado 3500 HD in High Country, LT, LTZ and WT models, and 2020–2026 GMC Sierra 2500 HD and 3500 HD in AT4, Base, Denali, SLE and SLT trims. It is sized for a 3.5 to 7.5 inch lift.
The list covers 2020–2026 heavy-duty trucks only, so the 2011–2019 HD models and the 1500 pickups are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
At a lift of 3.5 to 7.5 inches, check the rear driveline angles and the ride height after installation. Confirm the mounting points on your truck before ordering.
What’s included
One rear V2 monotube shock, part number R/C760744_F.
