Overview

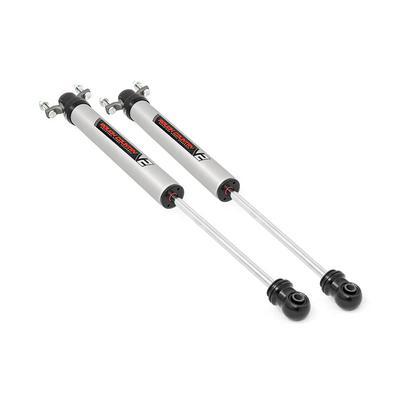

The Rough Country V2 front monotube shock R/C760776_A is a nitrogen-charged front shock for 2011–2026 Chevrolet Silverado 2500 HD and 3500 HD and GMC Sierra 2500 HD and 3500 HD trucks with a lift of 5 to 8 inches. It has a bar pin at the top, an eyelet at the bottom and a monotube body.
The internal floating piston separates the oil from the high-pressure nitrogen, which helps avoid cavitation and supports a quick response. The 46mm high-flow piston sits inside a T6061 brushed aluminum body. The shock is designed to be mounted body-up. It has a bar pin top mount and an eyelet bottom mount, so check both mounts before ordering.
Key features
- Monotube body with nitrogen charge
- Internal floating piston for oil and nitrogen separation
- T6061 brushed aluminum body with black anodized accents
- 46mm high-flow internal piston
- Body designed to dissipate heat faster
- Designed for body-up mounting
Steering and alignment at height
A 5 to 8 inch lift changes the front suspension angles, so steering geometry and caster should be checked after installation. The front shocks work through a wider range of travel, and the bar pin top mount and eyelet bottom mount have to handle that movement without binding.
Heavy-duty trucks carry a lot of weight at the front, so the shocks, springs and bump stops should be examined together. Inspect the bar pin for wear, the eyelet for cracks and the bushings for play. Replacing worn steering components while the front is already apart avoids a second round of work.
- Set alignment after the lift and shock swap
- Check bar pin and eyelet for wear
- Inspect bump stops and bushings
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C760776_A |
| Product line | V2 Series |
| Shock type | Monotube |
| Position | Front |
| Lift height | 5-8 in. |
| Top mount | Bar pin |
| Bottom mount | Eyelet |
| Body material | T6061 brushed aluminum with black anodized accents |
| Piston | 46mm high-flow, internal floating design |
| Charge | Nitrogen |
| Fitment | Direct fit |
Vehicle fitment
It fits the 2011–2026 Chevrolet Silverado 2500 HD and 3500 HD in Custom, High Country, LT, LTZ and WT models, and the 2011–2026 GMC Sierra 2500 HD and 3500 HD in AT4, Base, Denali, SLE, SLT and WT models. It is sized for a 5 to 8 inch lift.
The list covers the 2500 HD and 3500 HD trucks from 2011 to 2026 only, so the lighter-duty 1500 pickups and the 2010 and older heavy-duty trucks are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
At a 5 to 8 inch lift, check the front alignment and the steering geometry after installation. Confirm the bar pin top mount and the eyelet bottom mount match your existing brackets.
What’s included
One front V2 monotube shock, part number R/C760776_A.
