Overview

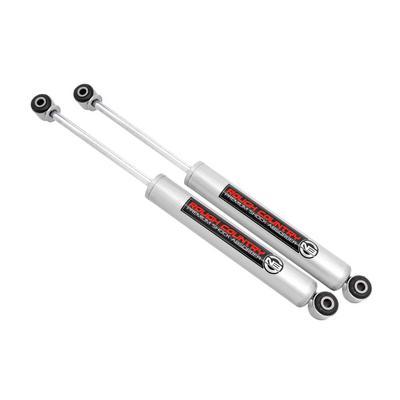

The Rough Country N3 rear shock R/C23141_N is a nitrogen-charged rear shock for 2002–2024 Dodge and Ram 1500 trucks with a lift of 0 to 2.5 inches. It uses eyelets at both the top and the bottom, and it is sold as a pair.
It is the rear shock for the lower end of the N3 lift range. The extended length is 26 in and the collapsed length is 15.91 in. The shock is built on the same platform as the rest of the N3 line, with a 35mm piston, an 18mm chrome-hardened piston rod, a 54mm shock body and ten-stage variable valving.
Key features
- Nitrogen charged shock body
- 10-stage variable valving
- 35mm piston and 18mm chrome-hardened piston rod
- 54mm shock body designed to shed heat faster
- Rated to 36kN tensile strength
- Spring-loaded piston rod seal
- Rubber bushings and military spec damper fluid rated to -40 C
Rear suspension and ride height
A rear shock manages the axle’s movement over bumps and under load, and it also helps keep the tires in contact with the ground. Because the rear end carries the weight of the bed and any cargo, a worn rear shock can make the back of the truck bounce or sway more than expected, especially on loose gravel.
Rear shocks are often replaced in pairs and checked alongside the springs and bushings. Look for oil on the shock body, cracked eyelets and sagging ride height. Keep the rear alignment and tire pressure in mind when reviewing the ride, since uneven tire wear can point to a suspension issue rather than a tire issue.
- Look for oil on the body
- Check eyelet bushings for cracks
- Measure rear ride height on level ground
- Inspect the bushings every oil change
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C23141_N |
| Product line | N3 Performance |
| Position | Rear |
| Lift height | 0-2.5 in. |
| Top mount | Eyelet |
| Bottom mount | Eyelet |
| Extended length | 26 in |
| Collapsed length | 15.91 in |
| Body diameter | 54mm |
| Piston | 35mm |
| Piston rod | 18mm chrome-hardened |
| Charge | Gas charged, nitrogen |
| Valving | 10-stage variable |
| Tensile strength | 36kN |
| Fluid | Military spec, rated to -40 C |
| Finish | Metallic silver paint |
| Warranty | 3-year warranty. |
| Sold as | Pair |
Vehicle fitment
It fits 2002–2010 Dodge Ram 1500 trucks, 2011–2018 Ram 1500 trucks and 2019–2024 Ram 1500 Classic trucks across their cab and trim packages. It is sized for a lift of 0 to 2.5 inches.
The list covers Ram 1500 trucks only. Ram 2500 and Ram 3500 trucks and the 2001 and older Dodge trucks are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the rear alignment and the rear ride height after the shocks are installed, since the N3 rear units are sized for a specific lift range.
What’s included
Sold as a pair, with one rear shock for each side.
