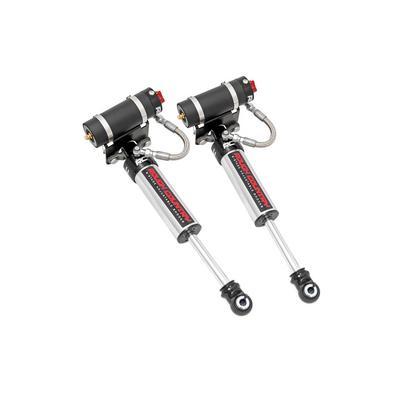

Rough Country GM Front Adjustable Vertex Remote Reservoir Shocks (5-7.5″ Lift) – 689028

Rough Country

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rough Country front adjustable Vertex remote reservoir shock for a 5 to 7.5 inch lift on 2500 HD and 3500 HD trucks
  • 8-stage damping with a 2.5-inch piston and 22mm chrome hardened rod
  • Extended length 23.74 inches and compressed length 15.04 inches
  • Part number 689028, with a 3-year warranty.

Description

Overview

The Rough Country 689028 is a front adjustable Vertex remote reservoir shock for a 5 to 7.5 inch lift. It fits the 2011 to 2019 and 2022 Chevrolet Silverado 2500 HD, the 2011 to 2026 Chevrolet Silverado 3500 HD, the 2011 to 2026 GMC Sierra 2500 HD and the 2011 to 2026 GMC Sierra 3500 HD. Its compressed length is 15.04 inches and its extended length is 23.74 inches, with a gas charged reservoir design and a direct fit.

The Vertex shock has 8-stage adjustable damping set with a dial, so the owner can choose damping for street driving or for rougher trail use. It is nitrogen charged, with a monotube design and an external reservoir that adds oil capacity and damping sensitivity.

The shock is built around a 2.5 inch piston and a 22mm chrome hardened piston rod. The 2.5 inch piston holds 56 percent more fluid than the average reservoir shock. A 3-stage fortified seal system is fitted, and the honed steel body is finished in silver with a laser-etched logo, matching Vertex decals and CNC-machined billet aluminum accents.

The shock carries a 3-year warranty.

Key features

  • 8-stage adjustable damping
  • 2.5 inch piston and 22mm chrome hardened piston rod
  • Nitrogen charged monotube with external reservoir
  • 3-stage fortified seal system
  • Honed steel body with silver finish
  • CNC-machined billet aluminum accents

Heavy-duty lift considerations

Heavy-duty trucks carry more weight and often tow, so the front shocks work harder than on lighter models. A remote reservoir design helps because the extra oil volume resists fade when damping is worked hard over long grades. Shock travel must also suit the lift height, since a lifted truck can reach the end of its stroke sooner on rough ground.

When fitting a remote reservoir shock, route the reservoir where it will not rub the frame, tires or steering components at full articulation. Check the upper and lower mounts for wear and replace worn bushings during the job. After the first few drives, inspect the mounts and hose clamps, then recheck the damping setting once the truck has been loaded as it normally is.

  • Confirm the reservoir routing clears the tires
  • Inspect mounts and bushings during install
  • Check hose clamps after the first drives

Specifications

Brand Rough Country
Part number 689028
Shock series Vertex
Shock type Coilover reservoir
Lift range 5 to 7.5 inches
Compressed length 15.04 inches
Extended length 23.74 inches
Bottom mount Bar pin
Hydraulic or gas charged Gas charged
Position Front
Warranty 3-year
Fitment type Direct fit
Vehicle Silverado and Sierra 2500 HD and 3500 HD, 2011 to 2026

Vehicle fitment

It fits the 2011 to 2019 and 2022 Chevrolet Silverado 2500 HD in the High Country, LT, LTZ and WT trims, and the 2011 to 2026 Chevrolet Silverado 3500 HD in the High Country, LT, LTZ and WT trims.

The list also covers the 2011 to 2026 GMC Sierra 2500 HD in the AT4, Base, Denali, SLE, SLT and WT trims, and the 2011 to 2026 GMC Sierra 3500 HD in the AT4, Base, Denali, SLE, SLT and WT trims.

Light-duty 1500 trucks are not on this list, and the 2020 and 2021 HD model years are not included. Confirm your vehicle’s year, model and trim before ordering.

What’s included

The product is a front adjustable Vertex remote reservoir shock. Check the package contents against your installation, including the quantity needed for both front positions, before starting.

Fitment

VehicleYearsTrims
Chevrolet Silverado 2500 HD2011–2019, 2022–2026High Country, LT, LTZ, WT
Chevrolet Silverado 3500 HD2011–2026High Country, LT, LTZ, WT
GMC Sierra 2500 HD2011–2026AT4, Base, Denali, SLE, SLT, WT
GMC Sierra 3500 HD2011–2026AT4, Base, Denali, SLE, SLT, WT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does this shock fit a 2020 Silverado 2500 HD?

No. It fits the 2011 to 2019 and 2022 Silverado 2500 HD, so 2020 and 2021 model years are not covered. Confirm your year and trim before choosing this shock.

What lift range does the 689028 cover?

The shock is for a 5 to 7.5 inch lift. Its compressed length is 15.04 inches and its extended length is 23.74 inches, so confirm the fit against the lift on your truck before ordering.

Is this shock for a 1500 truck?

No. It fits the 2500 HD and 3500 HD Silverado and Sierra trucks only. Light-duty 1500 models are not covered, so confirm your model before choosing this shock.

Does a heavy-duty truck need stronger front shocks than a 1500?

A heavier truck benefits from shocks with a larger oil reserve and steady damping. Matching the shock to the truck's load and use helps the front end handle towing and rough roads.

Is a remote reservoir shock better for towing?

It can be. The separate reservoir resists heat buildup, which helps damping stay consistent when the truck is pulling a load over long distances.
