Overview

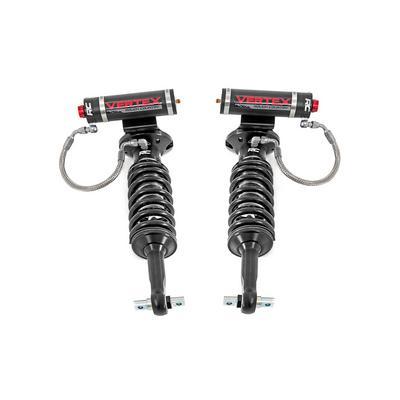

The Rough Country 689016 is a 2 inch front adjustable Vertex remote reservoir coilover for the 2007 to 2018 Chevrolet Silverado 1500 and GMC Sierra 1500. It has a bar pin bottom mount, gas charged construction and a direct fit for the front position.
The Vertex coilover has 8-stage adjustable damping set with a dial, so the ride can be tuned from smooth city driving to firmer damping for off-road conditions. It is nitrogen charged, with a monotube design and an external reservoir that adds oil capacity and damping sensitivity.
Each coilover has a 2.5 inch piston and a 22mm chrome hardened piston rod. The piston holds 56 percent more fluid than an average reservoir shock. It uses a 3-stage seal system and a honed steel body for long life. The silver finish includes a laser-etched logo, matching Vertex decals and CNC-machined billet aluminum accents.
It carries a 3-year warranty.
Key features
- 8-stage adjustable damping
- 2.5 inch piston and 22mm chrome hardened piston rod
- Nitrogen charged monotube with external reservoir
- 3-stage fortified seal
- Bar pin bottom mount
- Silver finish with billet aluminum accents
How a reservoir coilover works

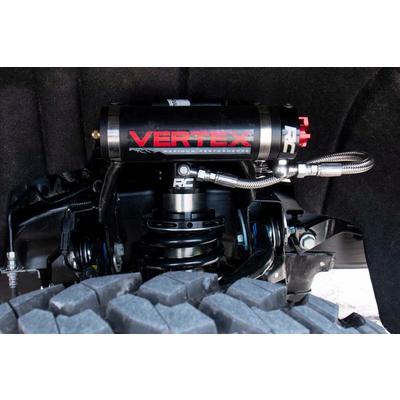

A coilover combines the shock and the spring into one unit, so the ride height and damping are set together. The external reservoir gives the oil more room to cool and keeps damping steady when the shock is worked hard on trails or on long grades. Because the spring and shock move as one, a worn coilover can change the ride height as well as the feel of the truck.
Before installing, check how the bar pin mount lines up with the lower control arm and whether the upper mount fits the existing bracket. Hoses and the reservoir need clear routing away from tires and body edges. Once installed, recheck the fasteners and set the damping to suit the terrain, and confirm the front alignment is correct.
- Confirm the bar pin and bracket alignment
- Route the reservoir clear of tires
- Check the damping setting after the first drives
Specifications
| Brand | Rough Country |
|---|---|
| Part number | 689016 |
| Shock series | Vertex |
| Shock type | Coilover reservoir |
| Lift | 2 inch |
| Bottom mount | Bar pin |
| Hydraulic or gas charged | Gas charged |
| Position | Front |
| Warranty | 3-year |
| Fitment type | Direct fit |
| Vehicle | Chevrolet Silverado 1500 and GMC Sierra 1500, 2007 to 2018 |
Vehicle fitment
It fits the 2007 to 2018 Chevrolet Silverado 1500 in the Custom, High Country, Hybrid, LS, LT, LTZ, SSV, WT and XFE trims, and the 2007 to 2018 GMC Sierra 1500 in the Base, Denali, Hybrid, SL, SLE, SLT, WT and XFE trims.
Model years from 2019 onward are not on the list, and the 2.5 inch Vertex coilovers for heavier trucks are separate parts. Confirm your vehicle’s year, model and trim before ordering.
What’s included
The product is a front adjustable Vertex reservoir coilover. Check the package contents against your installation, including the quantity needed for both front positions, before starting.
