Overview

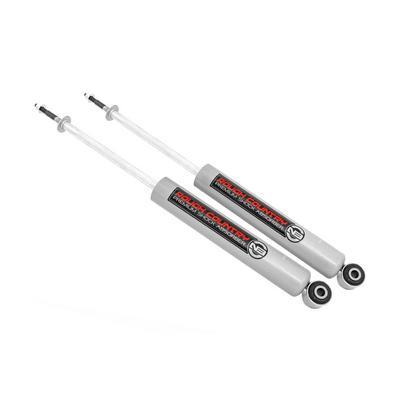

The Rough Country N3 rear shock R/C23161_K is a nitrogen-charged rear shock for 2014–2026 Ram 2500 trucks with a lift of 0 to 4 inches. It uses a stud at the top and an eyelet at the bottom, and it is sold as a pair.
The stud top mount sets this shock apart from the eyelet-to-eyelet rear units in the same line. Its extended length is 25.23 in and its collapsed length is 15 in. The shock keeps the 35mm piston, 18mm chrome-hardened piston rod and 54mm body of the N3 range, along with ten-stage variable valving.
Key features
- Nitrogen charged shock body
- 10-stage variable valving
- 35mm piston and 18mm chrome-hardened piston rod
- 54mm shock body designed to shed heat faster
- Rated to 36kN tensile strength
- Spring-loaded piston rod seal and rubber bushings
- Military spec damper fluid rated to -40 C
Stud mounts and bracket checks
A stud top mount clamps the shock through a bolt-on nut rather than sliding a pin through an eyelet, so the upper bracket and its nut must be sized and seated correctly. A loose or undersized nut can let the shock rotate and wear the stud threads. Inspect nut torque and thread condition after the first drive and again after off-road trips.
Because the lift range here is modest, rear ride height changes less than on taller setups, but the shock still works through the same arc. Pair the shocks with a check of the rear track bar and spring condition, since a sagging spring shortens the useful shock stroke. Replace worn rubber bushings at the bottom eyelet when they show cracks.
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C23161_K |
| Product line | N3 Performance |
| Position | Rear |
| Lift height | 0-4 in. |
| Top mount | Stud |
| Bottom mount | Eyelet |
| Extended length | 25.23 in |
| Collapsed length | 15 in |
| Body diameter | 54mm |
| Piston | 35mm |
| Piston rod | 18mm chrome-hardened |
| Charge | Gas charged, nitrogen |
| Valving | 10-stage variable |
| Tensile strength | 36kN |
| Fluid | Military spec, rated to -40 C |
| Finish | Metallic silver paint |
| Warranty | Covered by a 3-year warranty. |
| Sold as | Pair |
Vehicle fitment
It is a direct fit for 2014–2026 Ram 2500 across its Big Horn, Laramie, Limited, Lone Star, Outdoorsman, Power Wagon, SLT and Tradesman models. It is sized for a 0 to 4 inch lift.
The list covers 2014–2026 Ram 2500 trucks only, so Ram 3500 and Ram 1500 trucks and 2013 and older Ram 2500 trucks are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the top mount is a stud rather than an eyelet, confirm the upper bracket on your truck accepts the stud before ordering. Check the rear alignment and ride height once the shocks are fitted.
What’s included
Sold as a pair, with one rear shock for each side.
