Overview
The ReadyLift 69-2831 is a 3-inch front and 2-inch rear SST lift kit for the 2018 to 2021 Ford Expedition and Expedition Max. It combines components from the earlier 69-2830 3-inch kit with new steel brackets and hardware. The new brackets make the kit compatible with factory electronic CCD shocks on some Expedition models, so it works with standard shocks and CCD shocks alike.
The kit is designed for a mild lifted stance while keeping the SUV’s rake. It provides 3 inches of front lift and 2 inches of rear lift. It can fit tires up to 35 inches tall, in 285/75-18 or 285/65-20 sizes, on factory wheels, provided the factory power deployable running boards are not fitted. The kit includes CNC-machined billet 6061-T6 aluminum front strut extensions, fabricated plate steel rear spring spacers and front CCD wiring harness brackets.
Key features
- 3 inches of front lift and 2 inches of rear lift
- CNC-machined billet 6061-T6 aluminum front strut extensions
- Fabricated plate steel rear spring spacers
- Front CCD wiring harness brackets
- Works with standard shocks and CCD electronic shocks
- Bolt-on installation
Shock types and wiring
Electronic shocks adjust damping based on sensor input, so their wiring and mounting points matter as much as the shock itself. Any lift that changes the position of the shock or its harness can strain connectors if the routing is not planned. Keeping the harness clear of moving parts and heat sources protects the electronics over the long run.
Standard shocks are simpler to service, but they still wear and should be checked when the height changes. Longer or taller components can change shock angle and travel, so the mounts and bushings deserve a look after the install. Owners who switch between shock types later should confirm the harness fits the new setup before driving.
- Route harnesses away from hot exhaust components
- Inspect shock mounts after the lift is set
- Confirm harness fit before changing shock types
Specifications
| Brand | ReadyLift |
|---|---|
| Part number | RDY69-2831 |
| Front lift | 3 inches |
| Rear lift | 2 inches |
| Front strut extensions | CNC-machined billet 6061-T6 aluminum |
| Rear spring spacers | Fabricated plate steel |
| Tire size | Up to 35 inches (285/75-18 or 285/65-20) on factory wheels |
| Shock compatibility | Standard and factory CCD shocks |
| Fitment type | Direct fit |
Vehicle fitment
It fits 2018 to 2021 Ford Expedition and Expedition Max models in the King Ranch, Limited, Platinum, SSV, XL and XLT versions.
The 35-inch tire fit applies to factory wheels without factory power deployable running boards. Model years outside 2018 through 2021 are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The billet front strut extensions and steel rear spacers change suspension height at both ends, so an alignment should be checked after installation. The CCD wiring harness brackets are included for trucks with electronic shocks, so the factory shock wiring should be routed with them.

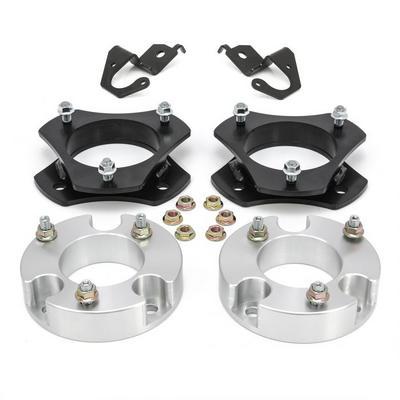

What’s included
The kit includes CNC-machined billet 6061-T6 aluminum front strut extensions, fabricated plate steel rear spring spacers and the front CCD wiring harness brackets.
