Overview

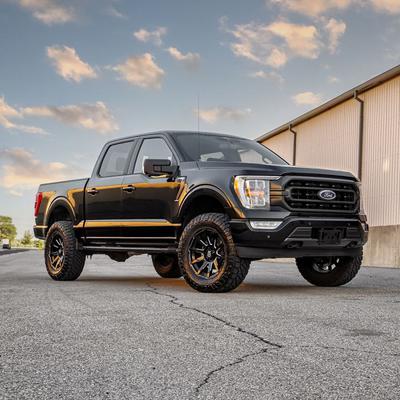

The ReadyLift 69-21350 is a 3.5-inch SST lift kit developed for the 2021 Ford F-150 4WD. It is a second-generation version of the 69-2300 3.5-inch kit for 2020 and earlier trucks. It fits King Ranch, Lariat, Limited, Platinum, Police Responder, Raptor, SSV, XL and XLT versions for 2021 and 2022.
The front lift is set by CNC-machined billet aluminum components, and the tubular control arms use corrected ball joint pivot angles. The new control arms come with 2021 F-150 heavy-duty ball joints and brackets for auto-leveling headlights, plus four alignment cam plates. Front lift falls between 3.25 and 3.5 inches depending on the vehicle. The rear lift is approximately 1.25 inches.
Key features
- 3.25 to 3.5 inches of front lift.
- Approximately 1.25 inches of rear lift
- CNC-machined billet aluminum front lift components
- Tubular control arms with corrected ball joint pivot angles
- 2021 F-150 specific heavy-duty ball joints
- Brackets for auto-leveling headlights
- Four alignment cam plates
- Rear shock extensions to keep the factory rear shocks
Headlights and alignment after a lift
Raising the front of a truck changes the aim of the headlights, and trucks with auto-leveling headlights rely on a sensor linkage to set beam height. Brackets designed for that system keep the sensor in the right position after the lift. Checking headlight aim with the truck loaded as usual is a simple step after any front lift.
Alignment cam plates allow camber and caster to be adjusted within a range. They are handy after a front lift, but the settings should be made on a proper alignment rack rather than by eye. Recheck the settings after the first tire rotation, since new suspension parts settle and cam positions can shift a little.
- Aim headlights after the front is set
- Record cam plate positions for future service
- Check the sensor link for free movement
Specifications
| Brand | ReadyLift |
|---|---|
| Part number | RDY69-21350 |
| Front lift | 3.25 to 3.5 inches |
| Rear lift | Approximately 1.25 inches |
| Rear blocks | Fabricated steel, 2.5 inches tall, with longer U-bolts |
| Alignment cam plates | Four |
| Rear shocks | Factory, kept with shock extensions |
| Tire size | 295 |
| Fitment type | Direct fit |
Vehicle fitment
It is a direct fit for 2021 and 2022 Ford F-150 4WD models in the King Ranch, Lariat, Limited, Platinum, Police Responder, Raptor, SSV, XL and XLT versions.
The rear lift is approximately 1.25 inches, while the rear blocks are 2.5 inches tall. Confirm the rear lift for your truck before ordering, and check the year, model and trim against your vehicle.
Installation notes
The four alignment cam plates are used to set the alignment after the control arms are fitted, so a wheel alignment is needed after installation. The rear shock extensions let the factory rear shocks stay in use, and the driveline angles should be checked after the rear is set.
What’s included

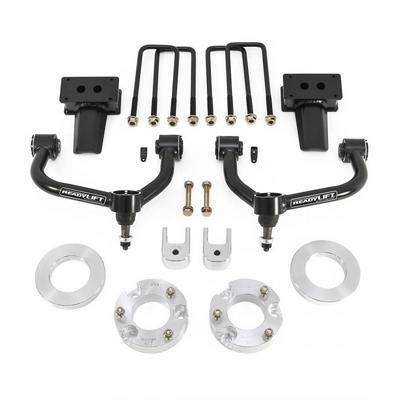

The kit includes the CNC-machined billet aluminum front lift components, the tubular control arms with heavy-duty ball joints, the brackets for auto-leveling headlights, the four alignment cam plates, the rear blocks with longer U-bolts and the rear shock extensions.
