ReadyLIFT 6.5″ Lift Kit – Ford Super Duty F250 Diesel (2-Piece Drive Shaft Only) w/ Bilstein Shocks – 49-2763

ReadyLift

Shop Ford F-350 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6.5-inch front lift for 2017–2020 Ford F-250 and F-350 Super Duty 4WD trucks with a two-piece driveshaft
  • Premium Bilstein 5100 Series rear shocks
  • Custom wound coil springs and radius arm drop brackets
  • Tires up to 38 inches tall

Description

Overview

The ReadyLift 49-2763 is a 6.5-inch lift kit for 2017 to 2020 Ford Super Duty 4WD trucks with a two-piece driveshaft. It is a diesel kit with Bilstein shocks, and it is made for F-250 trucks with that driveshaft. The kit raises the front a total of 6.5 inches and accommodates tires up to 38 inches tall.

The front uses custom wound coil springs. Radius arm drop brackets let the owner keep the factory radius arms and correct caster, and OEM style cast iron rear lift blocks bring the rear level with the front. Premium Bilstein 5100 Series shocks are fitted at the rear, which ReadyLift describes as premium shocks. The kit also includes a drop pitman arm, a track bar bracket, sway bar end links and a drive shaft spacer, along with all hardware.

Key features

  • 6.5 inches of front lift
  • Two-piece driveshaft version
  • Custom wound coil springs
  • Radius arm drop brackets that correct caster
  • OEM style cast iron rear lift blocks
  • Bilstein 5100 Series rear shocks
  • Drop pitman arm, track bar bracket and drive shaft spacer

Choosing the right setup

A diesel Super Duty carries more weight over the front axle than a gas truck, so the coil springs and radius arm drop brackets work harder under load. Choose a lift that matches the truck’s typical use, whether that is towing, hauling or mostly unloaded trail driving. The rear Bilstein 5100 Series shocks are ride height adjustable, which lets you set rear ride height to suit the load you carry.

Before installing, confirm the driveshaft type and the truck’s model, since the two-piece driveshaft and the F-250 or F-350 designation both affect the match. Check the rear blocks, U-bolts and bump stops for wear, and replace any cracked parts while the rear is raised. Recheck the alignment after front geometry changes, and inspect the rear driveline angles after the first few trips.

Specifications

Brand ReadyLift
Part number RDY49-2763
Lift kit size 6.5 inches
Front spring Custom wound coil springs
Rear shocks Bilstein 5100 Series
Shock series 5100 ride height adjustable series
Rear lift component Block and U-bolt
Tire size Up to 38 inches tall
Driveshaft Two-piece only, per the product name
Fitment type Direct fit

Vehicle fitment

It fits 2017 to 2020 Ford F-250 and F-350 Super Duty models in the King Ranch, Lariat, Limited, Platinum, XL and XLT versions.

The kit is written for F-250 trucks, and 2017 to 2020 F-350 models are also covered. The 2021 Super Duty is not covered. Confirm the model and driveshaft type before ordering.

Installation notes

Radius arm drop brackets and the custom coil springs change front geometry, so an alignment should be checked after installation. The rear blocks and Bilstein shocks change ride height at the rear, so the driveline angles should also be checked.

What’s included

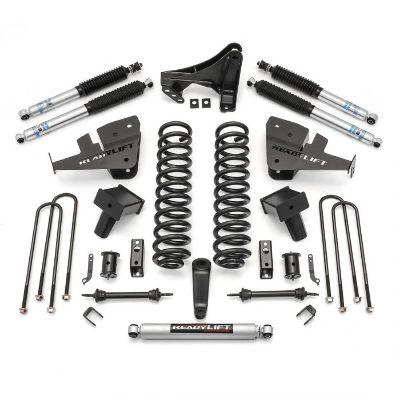

The kit includes the custom wound coil springs, the radius arm drop brackets, the OEM style cast iron rear lift blocks, the Bilstein 5100 Series rear shocks, the drop pitman arm, the track bar bracket, the sway bar end links and the drive shaft spacer.

SKU: RDY49-2763 Categories: ,

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2017–2020King Ranch, Lariat, Limited, Platinum, XL, XLT
Ford F-350 Super Duty2017–2020King Ranch, Lariat, Limited, Platinum, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is the 49-2763 for a diesel truck?

The kit is sold as a diesel lift with Bilstein shocks. Confirm your engine type against your truck before ordering, since fit is covered by year, model, trim and driveshaft type.

What shocks come with this kit?

The kit includes Bilstein 5100 Series rear shocks. Check the package contents against your installation before starting, especially the front shock setup.

Does this kit fit an F-350?

Yes, 2017 to 2020 F-350 Super Duty models are included in the fitment. Confirm your exact year, model, trim and two-piece driveshaft before ordering for an F-350.

Do ride height adjustable shocks need periodic checks?

Yes. Check the adjustment setting after the lift is in, and recheck it if the truck carries heavy loads or tows. Look for leaks, worn bushings and uneven ride height.

What should be checked on the driveline after installation?

Check the angles at the front and rear driveshaft joints and the drive shaft spacer after installation. Look for vibration at highway speed and worn U-joints, which can appear once ride height changes.
