Overview
The ReadyLift 49-1630-K is a 6-inch lift kit with SST3000 shocks for 2014 to 2018 Ram 2500 4WD diesel short bed trucks. It is made in the USA and gives 6 inches of front lift with performance front coil springs. The fit range covers 2014 to 2018 Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, SLT and Tradesman versions.
At the rear, heavy-duty spacers pair with the factory rear coil springs. Frame-mount radius arm drop brackets return the factory radius arms to the factory location. The kit includes fabricated steel front and rear track bar brackets, a dropped cast iron front pitman arm, front sway bar relocation brackets and front and rear bump stop extensions to limit over-compression off road. Four SST3000 shocks are included, and tires up to 37×13.50 fit on 17-to-20-inch wheels up to 9.5 inches wide.
Key features
- 6 inches of front lift from performance coil springs
- Heavy-duty rear spacers that pair with the factory rear springs
- Frame-mount radius arm drop brackets
- Fabricated steel front and rear track bar brackets
- Dropped cast iron front pitman arm
- Front sway bar relocation brackets
- Front and rear bump stop extensions
- Four SST3000 shocks
Rear spacers and bump control
Rear spacers raise the back of the truck on the factory coil springs, so the rear height and front height need to match. Radius arm drop brackets are the main part that keeps front geometry in its factory position, which reduces the work needed for a wheel alignment. Front and rear track bar brackets belong to the same geometry package.
Shock setup matters because the lift changes suspension travel. Worn shocks show up as a bouncy ride or a clunk at the rear end. Bump stop extensions limit over-compression, which helps protect the shocks and the axle. Off road, taller tires put extra load on the bump stops, so they should be checked at each service.
- Check radius arm bushings after the first drive
- Inspect bump stop extensions for clearance at full compression
- Recheck track bar bolts after the first few drives
- Look at rear shock mounts during routine service
Specifications
| Brand | ReadyLift |
|---|---|
| Part number | RDY49-1630-K |
| Front lift | 6 inches |
| Lift kit range | 6 to 7 inches |
| Shocks | Four SST3000 |
| Tire size | Up to 37×13.50 on 17-to-20-inch wheels up to 9.5 inches wide |
| Origin | Made in the USA |
| Drive type | 4WD diesel short bed trucks. Gas-engine trucks are not covered. |
| Fitment type | Direct fit |
Vehicle fitment
The kit fits 2014 to 2018 Ram 2500 models in the Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, SLT and Tradesman versions.
Coverage runs to 2019 diesel short bed trucks, one year past the fit range. Confirm your vehicle’s year, engine, bed length and trim before ordering.
Installation notes
The radius arm drop brackets return the factory radius arms to their factory position, which is needed to keep the alignment geometry. A wheel alignment should be checked after installation, and the front pitman arm and sway bar relocation brackets need clearance checks.
What’s included

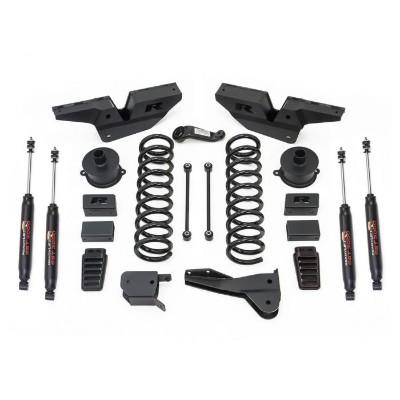

The kit includes the performance front coil springs, the heavy-duty rear spacers, the radius arm drop brackets, the fabricated steel track bar brackets, the dropped cast iron pitman arm, the sway bar relocation brackets, the bump stop extensions and four SST3000 shocks.
