Overview
The ReadyLift 69-1945 is a 4.5-inch front and 2.5-inch rear SST lift kit for the 2019 Ram 2500 HD 4WD. It is a bolt-on lift for owners running negative offset wheels and tires up to 37 inches tall. It fits the Big Horn, Laramie, Laramie Longhorn, Limited, Lone Star, Power Wagon and Tradesman versions.
The kit provides 4.5 inches of front lift and 2.5 inches of rear lift with heavy-duty fabricated steel coil spring spacers. It includes front radius arm drop brackets and a replacement front track bar relocation bracket that keep the suspension geometry correct. Front and rear shock extensions, bump stop extensions, longer sway bar end links and front sway bar frame side spacers are included. The kit requires no permanent modifications.
Key features
- 4.5 inches of front lift
- 2.5 inches of rear lift
- Heavy-duty fabricated steel coil spring spacers
- Front radius arm drop brackets
- Replacement front track bar relocation bracket
- Front and rear shock extensions and bump stop extensions
- Longer sway bar end links and front sway bar frame side spacers
- Clearance for up to 37-inch tall tires
Negative offset and clearance
Negative offset pushes the wheel outward, which widens the stance and can move the tire closer to the fender or the suspension parts at full lock. Scrub radius and steering feel change with it, so the steering should be checked for a light, consistent return after the lift and wheel change.
Tall tires also change the load path. Bump stops, shock travel and fender liners all need room at full compression, and the front track bar sits at a new angle after a relocation. Inspecting these parts after the first trip shows whether the setup has enough clearance.
- Check steering return after the first drive
- Look for rubbing at full compression and lock
- Inspect bump stops for cracks or wear
- Recheck the track bar angle after the lift
Specifications
| Brand | ReadyLift |
|---|---|
| Part number | RDY69-1945 |
| Front lift | 4.5 inches |
| Rear lift | 2.5 inches |
| Spacers | Heavy-duty fabricated steel coil spring spacers |
| Tire clearance | Up to 37-inch tall tires |
| Wheel fit | Negative offset wheels |
| Drive type | It is made for 4WD trucks. |
| Fitment type | Direct fit |
Vehicle fitment
It fits 2019 Ram 2500 models in the Big Horn, Laramie, Laramie Longhorn, Limited, Lone Star, Power Wagon and Tradesman versions.
The kit is not for Power Wagon trucks, snow prep package trucks or ambulance package trucks. Confirm the version and equipment of your truck before ordering.
Installation notes
No permanent modifications are needed. The radius arm drop brackets and track bar relocation bracket change front geometry, so a wheel alignment should follow installation. The longer sway bar end links call for a clearance check at full travel.

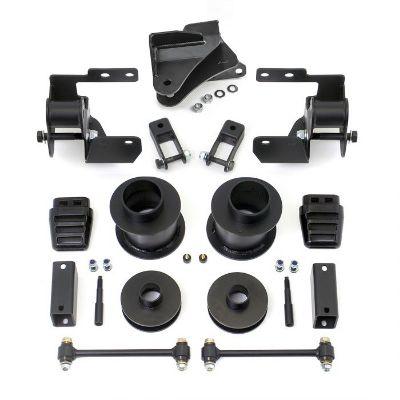

What’s included
The kit includes the heavy-duty fabricated steel coil spring spacers, the front radius arm drop brackets, the replacement front track bar relocation bracket, the front and rear shock extensions, the bump stop extensions, the longer sway bar end links and the front sway bar frame side spacers.
