Overview

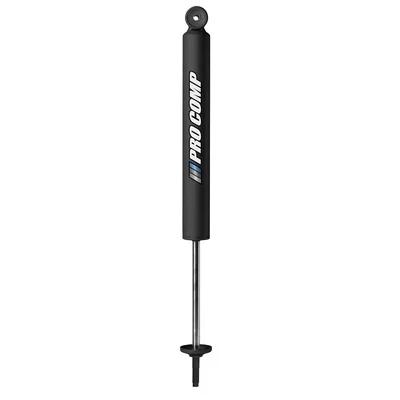

The Pro Comp 914514B is a PRO-X front twin tube shock absorber for the 1993–1998 Toyota T100, including the 1993 and 1995 T100 One-Ton. It is a front shock with a 14.5-inch extended length, a 9.8-inch collapsed length and 4.70 inches of travel.
The PRO-X is a general-purpose twin tube design for trucks that see mostly pavement with occasional off-road use. Pro Comp describes its 10-stage velocity sensitive valving as handling a range of road conditions, with a 5/8-inch chrome hardened piston rod and a Teflon rebound stop intended for a comfortable highway ride.
The shock has a stem upper mount and a loop lower mount, a 2.0-inch body and a black powder-coated finish. Nitrogen stabilized construction and a 1-3/8-inch nylon banded piston complete the build, and the optional shock boot is sold apart from the shock.
Key features
- Twin tube design for general-purpose use
- 10-stage velocity sensitive valving
- 1-3/8-inch nylon banded piston
- 5/8-inch chrome hardened shaft
- Teflon rebound stop
- Black powder-coated finish
Choosing a replacement front shock
Twin tube shocks use a working cylinder and a reserve chamber, which keeps damping consistent through repeated compression and rebound. On a light truck, the front shocks control body roll in corners, help steering stay steady over washboard, and limit the up and down motion that follows a dip or bump. Because the travel on this style is shorter, the shock spends most of its life in the middle of its stroke, so the bushings and mounts matter as much as the damping itself.
When choosing a replacement, start with the mounted length on the truck rather than the part name. Measure the installed distance with the suspension at rest, then compare it with the extended and collapsed lengths before ordering. Front shocks are often replaced in pairs so both sides respond the same way, and inspecting the upper stem mount, lower loop and bushings at the same time avoids noise from worn hardware. Keep the boot and dust seals in good condition, since grit on the piston rod wears seals quickly.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | 914514B |
| Shock series | PRO-X |
| Shock type | Twin tube, gas charged (nitrogen stabilized) |
| Position | Front |
| Extended length | 14.5 in |
| Collapsed length | 9.8 in |
| Travel length | 4.70 in |
| Body diameter | 2.0 in |
| Piston | 1-3/8 in nylon banded |
| Shaft | 5/8 in chrome hardened |
| Upper mount | Stem |
| Lower mount | Loop |
| Finish | Black powder coat |
| Boot | Optional, not included |
Vehicle fitment
The 914514B fits the 1993–1998 Toyota T100 in the Base, DLX, DX and SR5 trims, and the 1993 and 1995 T100 One-Ton in the DLX trim.
T100 models from 1999 onward and the Toyota Tacoma are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the 14.5-inch extended and 9.8-inch collapsed lengths against your front suspension height before installation. The 4.70-inch travel is a short stroke, so the shock should be checked at full droop and full compression.
What’s included
One front twin tube shock. The optional boot is a separate item and is not in the box.
Not included: the optional shock boot and mounting hardware.
