Overview

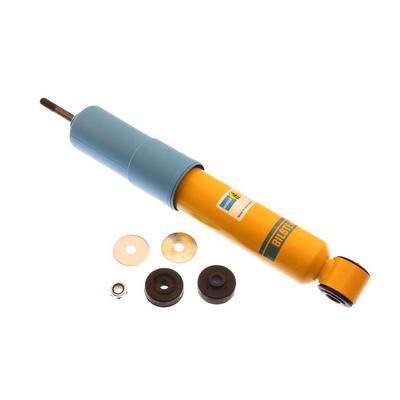

The Bilstein 4600 Series front shock, part number BIL24-184892, is a gas charged monotube shock with a 2 inch body diameter, boots included and a yellow finish. It is a direct fit for the 1993 to 1998 Toyota T100 in Base, DLX and SR5 trim.
The monotube design is built without an external reservoir. Bilstein says heat passes from the oil to the outer surface of the body, which keeps the shock cooler than a conventional design and helps it last.
A dividing piston lets the oil expand as it warms, so foaming is prevented and the thickness of the oil holds steady. This keeps the full damping force available as temperatures rise, and the piston head can be tuned for compression and rebound independently.
The tube is made by a special extrusion process with a tight peak-to-valley tolerance and uniform wall thickness. The seamless construction provides tube strength and heat dissipation together.
The design has fewer parts than most conventional twin tube designs, which adds to its durability. Boots are included with the shock.
Key features
- Front position
- Gas charged monotube design
- 2 inch body diameter
- Boots included
- No external reservoir
- Yellow finish
- Dividing piston for steady oil volume
- Separate compression and rebound tuning
Front shock wear and service
A front shock on a light truck carries a large share of the load during braking and turning, so wear shows up as nose dive, wandering on the highway or uneven tread. Gas charged monotube shocks keep damping steadier as they heat, but the seals and boots still wear with time and road exposure.
Service is simple when the work is planned. Clean the shock body before inspecting it, check the eyelets for cracks, and look at the rod for scoring. Front springs and steering components should be checked at the same time, because they affect how much the shock works.
- Check for oil on the shock body
- Inspect the boot for tears
- Look at tire wear across the front axle
Specifications
| Brand | Bilstein |
|---|---|
| Part number | BIL24-184892 |
| Shock series | 4600 Series |
| Position | Front |
| Shock type | Monotube, gas charged |
| Body diameter | 2 inch |
| Reservoir | None |
| Boots | Included |
| Finish | Yellow |
| Fitment | Direct fit |
Vehicle fitment
It fits 1993–1998 Toyota T100 models in Base, DLX and SR5 trim.
The list does not include the T100 from other years, the Toyota Tacoma or Pickup, or the 4Runner. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Front shocks are generally fitted in pairs. Check the length and mounts against the front springs before installing.
What’s included
The product is one front monotube shock with boots, under part number BIL24-184892.
