Omix-ADA Replacement Fuel and Temperature Gauge Set – 17209.01

Omix-Ada

Shop Omix-Ada Gauges on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Omix-Ada replacement fuel and temperature gauge set, title number 17209.01
  • Gauges replace independently; air core movement dampens needle bounce
  • Covers 1955–1986 CJ models with a straight 12V power feed

Description

Overview

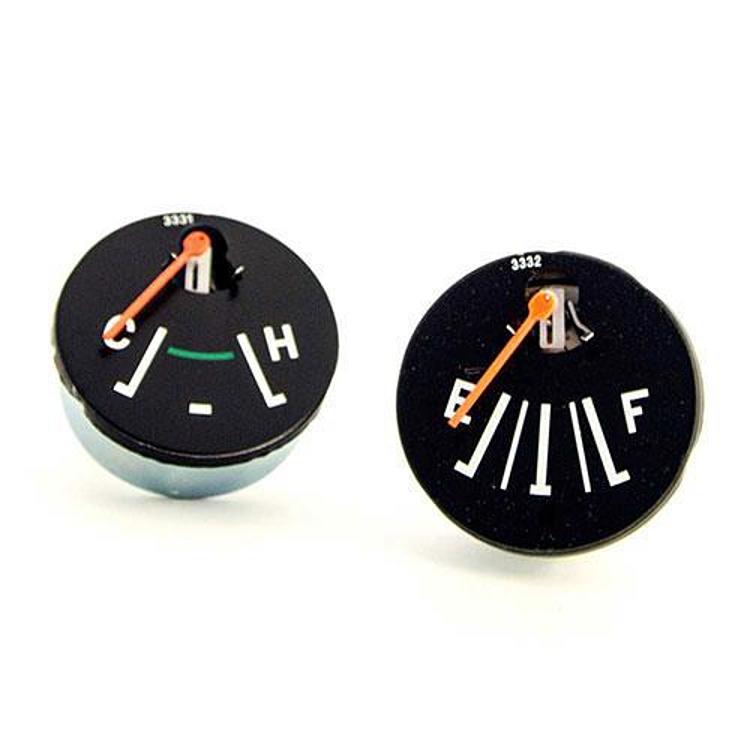

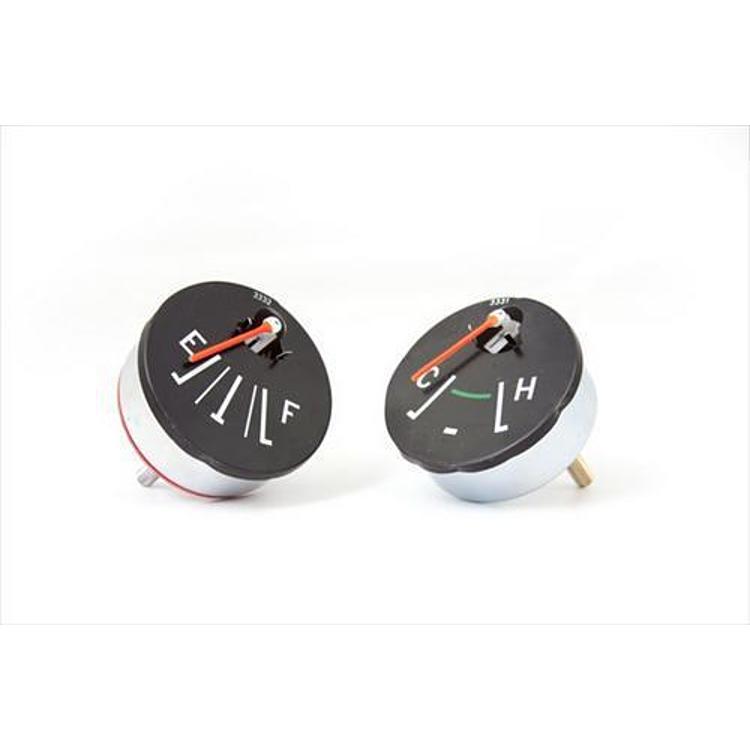

The Omix-Ada Replacement Fuel and Temperature Gauge Set, catalog number 17209.01, is a reproduction fuel level and water temperature gauge pair for 1955–1986 CJ models. It is a Factory Match Jeep replacement with a black face and standard units.

The two gauges replace independently of each other, so one can be swapped without touching the other. The air core movement dampens needle bounce without affecting calibration or accuracy.

Key features

  • Fuel level and water temperature gauges in one set
  • Gauges replace independently of each other
  • Air core movement dampens needle bounce without affecting calibration or accuracy
  • Straight 12V power feed
  • Electric gauges with a black face and standard units

Electric gauge wiring basics

Electric fuel and temperature gauges work with a sending unit mounted on the engine or fuel system. The sender converts pressure or temperature into a signal that moves the needle. Because the gauge and sender work as a matched pair, confirm that the sending units on your CJ suit the gauges before connecting anything.

Clean ground connections make a large difference in gauge accuracy on older vehicles. Scrape paint from the mounting points, use a short ground strap, and keep the feed wire away from the coil and ignition wiring. Recheck connections after the first few drives, since vibration can loosen terminals on older Jeeps.

  • Test the gauges with the key on before running the engine
  • Keep the feed wire clear of hot exhaust
  • Replace cracked sender wiring
  • Check fuses after installation

Specifications

Brand Omix-Ada
Part number 17209.01
UPC 804314149826
Gauge type Fuel level and water temperature
Gauge series Factory Match Jeep
Gauge mounting size O.E. Replacement
Electric or mechanical Electric
Units Standard
Face color Black
Power Straight 12V feed
Fitment Direct Fit

Vehicle fitment

The set is a direct fit for 1955–1986 CJ models. Confirm your CJ’s year, model and trim before ordering.

Models outside the CJ line are not indicated. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

No wire modification is needed, and the gauges run on a straight 12V feed.

What’s included

The set includes the fuel level and water temperature gauges.

Not included: sending units and wiring.

SKU: OAI17209.01 Category:

Specification

Shipping weight 2.00 lbs
Package dimensions 4.00 × 4.00 × 4.00 in
brands

Questions & Answers

What is the Omix-Ada 17209.01 gauge set?

It is a replacement fuel and temperature gauge set for fuel level and water temperature. The gauges are electric and sized as O.E. replacements for 1955–1986 CJ models.

Can the fuel and temperature gauges be replaced one at a time?

Yes. The fuel level and temperature gauges can be replaced one at a time, since they operate independently. No wire modification is needed for this set.

Does this set fit a CJ model from the 1950s or 1980s?

Yes, if your CJ is from 1955 through 1986, since that range covers both the 1950s and 1980s models. Confirm your vehicle's year, model and trim before ordering.

How can I tell if the gauges need replacing?

Look for needles that stick, jump erratically, or fail to move as the engine warms. A reading that disagrees with a known-good gauge also suggests a problem. Check the sender and wiring first, since those are often the cause.

Should the sending units be replaced with the gauges?

Often yes, if the senders are old. Replacing a worn sender alongside the gauge keeps the readings consistent. Confirm that the sender matches the new gauge before buying parts.
