Overview

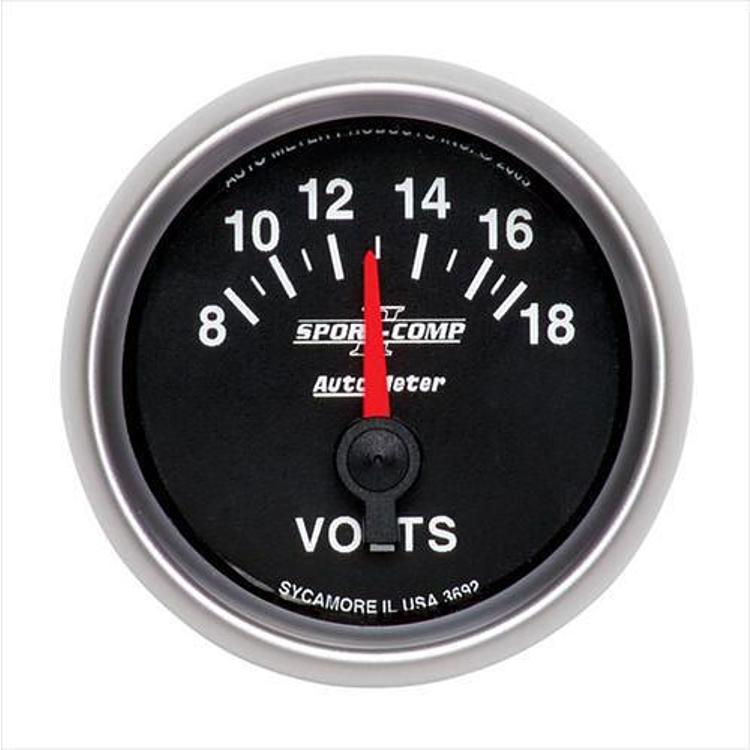

The Auto Meter Sport-Comp II Electric Voltmeter Gauge, part number 3692, is a 2 1/16 inch electric voltmeter that shows the electrical system voltage. It reads from 8 to 18 volts on negative ground systems and is a universal fit.
The gauge uses a patented air core meter movement. Monitoring the electrical system can help you spot a charging problem before it leaves you stranded.
Key features
- Patented air core meter movement
- 8 to 18 volt reading range
- Built for negative ground electrical systems
- White illumination with a black face
- 2 1/16 inch mounting size
Reading voltage accurately
A voltmeter shows the electrical system voltage and gives early warning of charging problems. Readings change with the engine running, the battery’s state of charge and the load from accessories, so compare the gauge with the engine off and running to get a clear picture of how the system behaves.
Because the gauge is designed for negative ground systems, confirm the battery ground before wiring it. Connect the power feed through a fused circuit and attach the ground to a clean, bare metal point. Loose or corroded connections can make a steady reading look erratic, so inspect them when you install the gauge and periodically afterward.
Keep the gauge away from heat sources and check its illumination after wiring to confirm the lamp works with your dash lighting. Voltage readings are most useful when you notice a change over time, so note normal values when the system is healthy.
Specifications
| Brand | Auto Meter |
|---|---|
| Part number | 3692 |
| UPC | 46074036927 |
| Gauge type | Volt meter |
| Gauge series | Sport Comp II |
| Electric or mechanical | Electric |
| Gauge mounting size | 2 1/16 inches |
| Voltage range | 8 – 18 volts |
| Ground system | Negative ground |
| Illumination | White |
| Face color | Black |
| Units | Standard |
| Fitment | Universal Fit |
Vehicle fitment
This voltmeter is a universal fit and is not tied to a specific vehicle. It is intended for negative ground electrical systems reading 8 to 18 volts.
It is for negative ground systems only, so confirm your system’s ground type before installing.
Installation notes
Electric gauges need a power feed and a ground connection. Confirm your vehicle uses a negative ground system before wiring the voltmeter.
