Overview

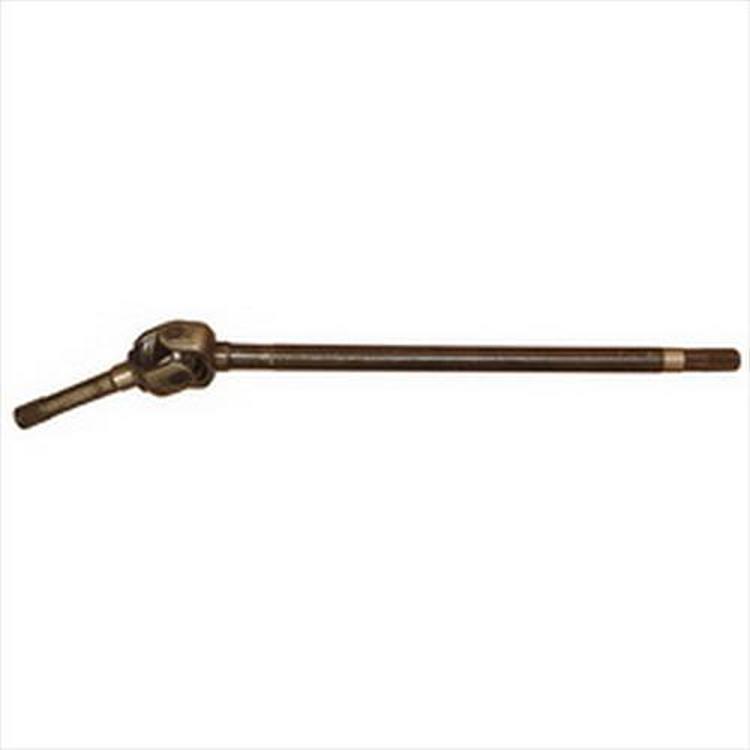

The Omix-ADA 16523.05 is a Dana 30 narrow track inner axle shaft for the driver side, with 27 splines, for 1977–1981 Jeep CJ5 and CJ7 models and the 1981 Scrambler.
This front left shaft is the driver side match for narrow track CJs with disc brakes. It is a driver side assembly for the Dana 30 Standard front axle, sold as a direct OE replacement built to original specifications, with a limited five year warranty.
On a narrow track CJ, the left and right inner shafts are different parts, so the side matters. This driver side shaft belongs in the front left position, mating with the 27 splines of a Dana 30 Standard differential. The disc brake note matters because the hub and shaft end differ from drum brake versions. Omix-ADA presents it as a direct OE replacement, a good fit for owners restoring a CJ to stock rather than modifying it. No length, material or strength numbers are published for this shaft.
Key features
- Dana 30 front inner axle shaft
- Driver side assembly, front left position
- 27 splines
- Narrow Trac
- For models with disc brakes
- Direct fit
Matching left and right shafts
On a narrow track CJ the left and right shafts are separate parts, and each one has to match its own side of the axle. Replacing only one side is common after a broken shaft, but the new shaft should be checked against the old one for length and spline count before the wheel goes on.
Because the front axle works as a pair, look at the opposite side for wear as well. A worn shaft on one side can make the other side look fine until it fails under load. Clean the splines and apply the lube the axle service calls for before assembly.
- Compare the new shaft with the old one before installing
- Inspect the opposite side shaft for wear
- Clean splines and apply the recommended lube
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | 16523.05 |
| UPC | 804314044138 |
| Part type | Inner axle shaft |
| Axle | Dana 30 Standard |
| Axle location | Front |
| Position | Driver side assembly, front left |
| Spline count | 27 splines |
| Brakes | Disc brakes |
| Track width | Narrow |
| Fit type | Direct fit |
Vehicle fitment
It fits the 1977–1981 Jeep CJ5 and CJ7 and the 1981 Scrambler.
Wide track CJs from 1982 onward, the CJ6 and earlier CJ5 and CJ7 years are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Confirm disc brakes and the driver side before replacing the shaft.
