Differential Pinion Bearing Baffle and Axle Slingers

What these parts do

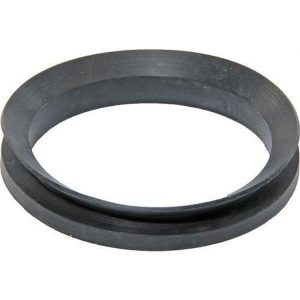

Inside a Dana axle, small stamped parts steer oil and block dirt. A pinion bearing baffle sits near the pinion bearings to control how gear oil flows to them and reduce the chance of oil starving or flooding the area. A slinger is a spinning disc that flings oil, water and dirt away from a seal, which helps the seal last. Dust shields on the axle shaft keep debris away from the inner or outer seal and bearing area.

Where they go

• Pinion head slinger: fitted on the pinion shaft behind the head bearing.
• Pinion seal slinger: mounts at the yoke end, near the pinion seal.

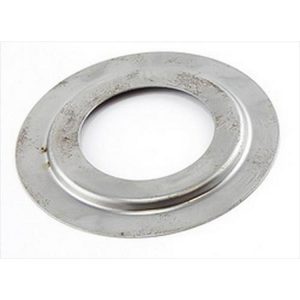

• Inner pinion bearing baffle: sits by the inner pinion bearing in the housing.
• Stub axle slinger: used on front axle shafts such as in Dana 30 and Dana 60 front ends.
• Inner and outer axle dust shields: fitted on axle shafts to protect the seal area.

Matching to your axle

These parts are very specific. Dana 30, 35, 44 and 60 axles use different baffles and slingers, and front and rear versions differ. Years and generations differ too, such as the Dana 44 front axle in later Wranglers. Identify your axle by the tag, cover shape and ring gear size, and cross-check the part number in the listing. Some items are listed in the catalog as pinion seals, so read titles and descriptions to see whether you are getting a slinger, baffle, seal or shield.

Installation notes

These parts are normally replaced when the differential or pinion is apart for a seal, bearing or gear job. Press fit parts must go on square and fully seated using the proper driver, as a bent slinger can rub or fail to protect the seal. Replace pinion seals, crush sleeves where applicable and bearings to specification, and set pinion preload and gear pattern correctly. Differential work needs specialized tools and setup skill, so a qualified gear shop is the safest option for many owners. Use the correct gear oil and fill level afterward.

Why do these small parts matter? In a Dana axle, the pinion shaft turns at high speed, and its seal and bearings live in a harsh environment of heat, dust and water. If a slinger is missing or bent, contamination can reach the seal and cause leaks, and the oil that escapes starves the bearings. A baffle that is out of position can leave the pinion bearings poorly lubricated. When rebuilding an axle, inspect these parts instead of assuming they are fine.

Look for signs of trouble before disassembly. Gear oil leaking at the pinion, a whining noise that changes with speed, metallic debris on the drain plug magnet and dirty or milky oil all point to problems that may involve the seal area. When you open the axle, clean parts thoroughly and examine the bearings and races for pitting. Use the correct sealing parts and sealant, replace single-use hardware such as crush sleeves or locking nuts and use a quality gear lubricant of the correct grade. Check the axle vent as well, since a clogged vent builds pressure and pushes oil past seals.

Fitment

Confirm your axle model, application and the manufacturer's specifications before choosing a product below.
