Overview

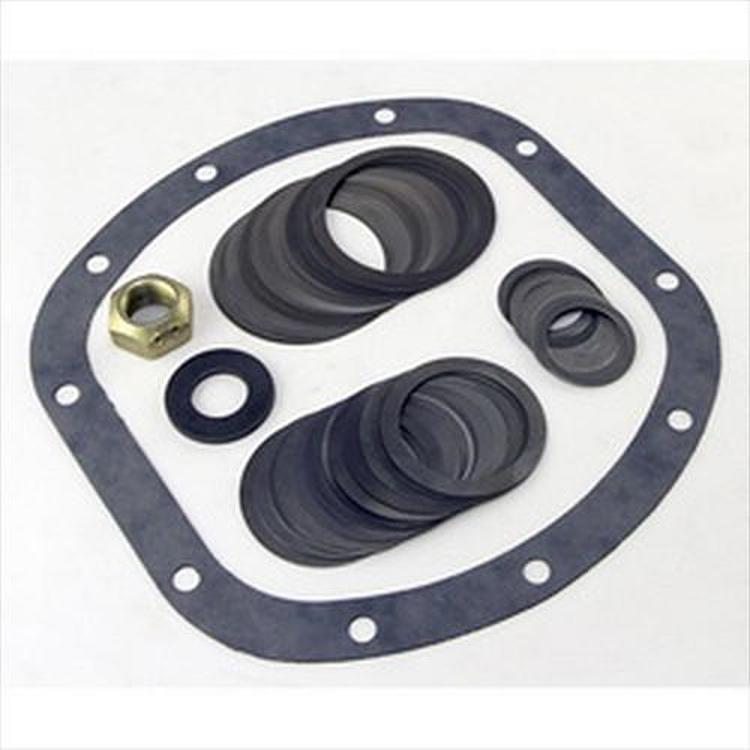

The Omix-ADA 16511.01 is a differential shim kit for Dana 25 and Dana 27 full floating axles. It is a direct OE replacement built to original Jeep specifications.
Key features
- Designed for Dana 25 and Dana 27 axles
- Full floating axle type
- Used on the differential side
- Direct OE replacement built to original specifications
Shimming the differential
Differential shims set the position of the carrier bearings and the gear mesh inside the housing. Small changes in shim thickness change backlash and tooth contact, so shims should be checked as a set rather than swapped one at a time. Measure the existing stack before removing anything, since it gives the starting point.
Gear life depends on correct backlash and contact pattern. After shimming, check the contact pattern with marking compound and confirm backlash for the gear set. Keep the bearings clean and lubricated during assembly, and replace any worn bearing before reuse.
- Measure the original shim stack before removing parts
- Check backlash and tooth contact after shimming
- Replace worn bearings during rebuilds
- Use fresh gear oil after the rebuild
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | 16511.01 |
| UPC | 804314011093 |
| Axle types | Dana 25, Dana 27 |
| Axle style | Full floating |
| Position | Differential side |
| Warranty | Covered by a limited five year warranty |
Vehicle fitment
This kit is for Dana 25 and Dana 27 full floating axles, and it is a Jeep direct fit part.
Check your differential’s axle type before ordering, since other Dana axle sizes are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Differential side shims set bearing preload and gear setup. Check the new shims against the original specifications before final assembly, since incorrect shimming affects gear life.
What’s included
The differential shim kit as described. The number of shims and their thicknesses are not broken down.
