Overview

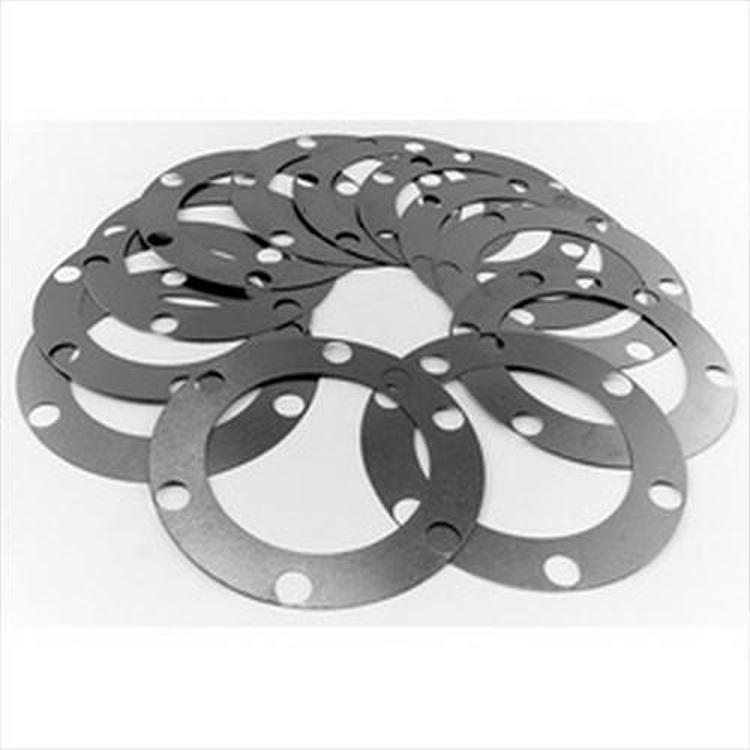

The Omix-Ada 16533.03 is an axle retainer shim kit for the Dana 44 rear axle with tapered shafts. Retainer shims sit behind the axle bearing retainer and set the axle position and end play, so the kit is a rear axle part rather than a pinion part.
It fits the 1967 through 1969 Jeep CJ5 with a Dana 44 rear axle.
Key features
- Retainer shim kit for the Dana 44 rear axle
- Made for axles with tapered shafts
- Direct OE replacement built to the original specifications.
- It carries a limited five-year warranty.
Setting axle end play
Retainer shims determine how far the axle can move in the housing once it is assembled. Small differences in shim thickness change the end play, which is why a rebuild should measure rather than assume. Shims are usually stacked behind the bearing retainer, so the stack height must be checked as a whole.
Build the stack from thinnest to thickest, checking clearance with each addition. Clean the retainer and housing face first, since debris or nicks can throw off the measurement. Keep the original shims together during teardown and note how they were stacked. Once the axle is reassembled, confirm the play before road use.
- Measure before final assembly
- Keep the original stack order
- Inspect shims for bends, scoring or cracks
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | 16533.03 |
| Axle | Dana 44 rear |
| Shaft type | Tapered |
| Warranty | Limited five-year warranty |
| Fitment type | Direct fit |
Vehicle fitment
It is for the 1967–1969 Jeep CJ5 with a Dana 44 rear axle.
Other CJ model years and the later Jeep models that used the Dana 44 rear are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Retainer shims set axle end play, so the shim thickness should be confirmed during rear axle assembly rather than assumed from the kit alone.
What’s included
One axle retainer shim kit, part number 16533.03. Check the shim count and thicknesses against your axle before assembly.
