Overview

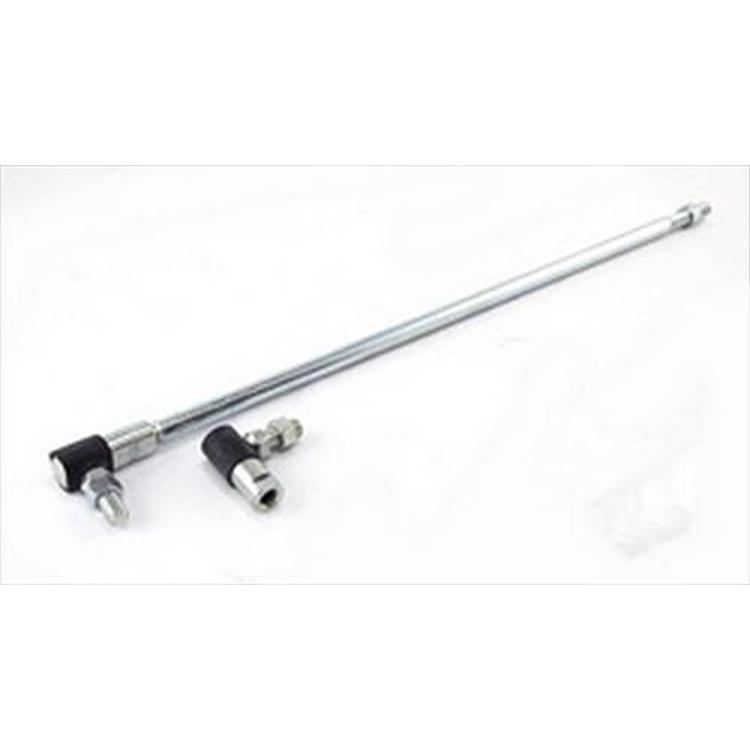

The Omix-Ada 16919.04 is a clutch pedal rod assembly that connects the bellcrank to the pedal and measures 18-5/8 inch long. It fits the 1972 to 1975 Jeep CJ6 (Base).
It is made for two engine groups: 3.8L, 4.2L or 5.0L, and 5.9L or 6.6L. Both groups share the same 18-5/8 inch length.
Key features
- Bellcrank to pedal clutch rod assembly
- 18-5/8 inch length
- Engine groups 3.8L, 4.2L or 5.0L and 5.9L or 6.6L named
- Direct OE replacement from Omix-Ada
Linkage geometry and rod wear
The clutch pedal rod carries pedal motion to the bellcrank, so its ends and the pivot holes around them determine how precisely the clutch releases. Bent rods, worn clevis ends and loose clips all add slop between the pedal and the release mechanism. Because the rod is a simple piece, the usual fault is wear at the joints rather than the rod itself.
Check each end for play by moving the rod by hand with the pedal released. Look for bright wear marks on the clevis and cotter pins that have come out of position. Replacing a worn rod is simpler when the bellcrank bushing and pedal pivot are inspected at the same time, so the linkage stays aligned.
- Check both ends for play
- Replace worn cotter pins or clips
- Inspect the bellcrank bushing
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | 16919.04 |
| UPC | 804314140960 |
| Part type | Clutch pedal rod assembly |
| Connects | Bellcrank to pedal |
| Length | 18-5/8 inch |
| Engine groups named | 3.8L, 4.2L or 5.0L; 5.9L or 6.6L |
| Fit type | Direct fit |
Vehicle fitment
It fits these vehicles:
- 1972-1975 Jeep CJ6 (Base)
No other CJ generations or the Scrambler appear on this list, so they are not covered.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Compare the length and both ends of the old rod with this assembly before installing it, since the rod carries clutch pedal motion to the bellcrank.
