Overview

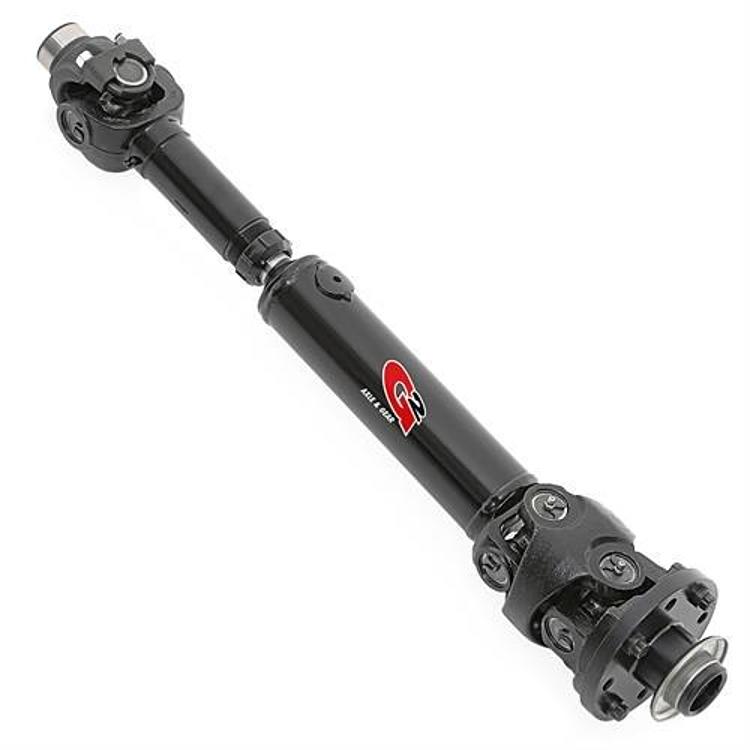

For Jeep Wrangler JK owners, the G2 Axle and Gear 92-2052-3 is a double cardan CV style replacement for the rear driveline. It is offered as a heavy duty replacement for JK models with automatic transmissions.

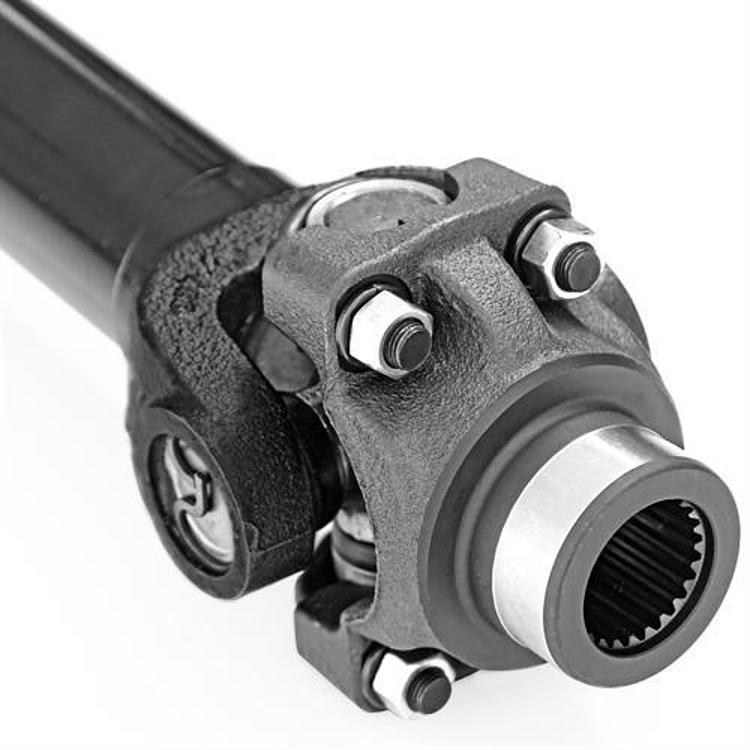

The shaft is made from heavy duty D.O.M. tubing with solid body U-joints in the 1350 size, and each unit is dynamically balanced. It is suited to stock through 6 inch lift, with tire clearance up to 37 inches.
Key features

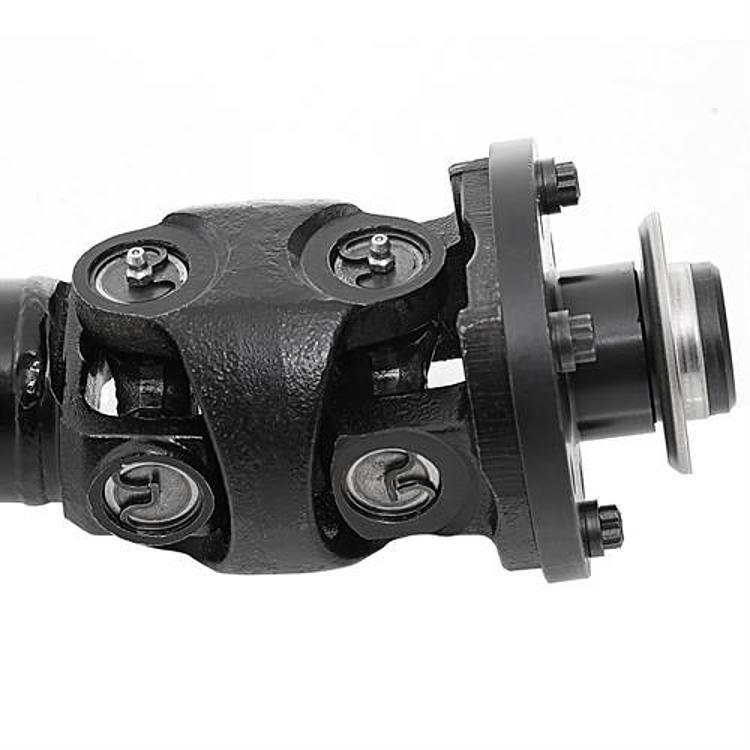

- Double cardan CV style rear joint layout

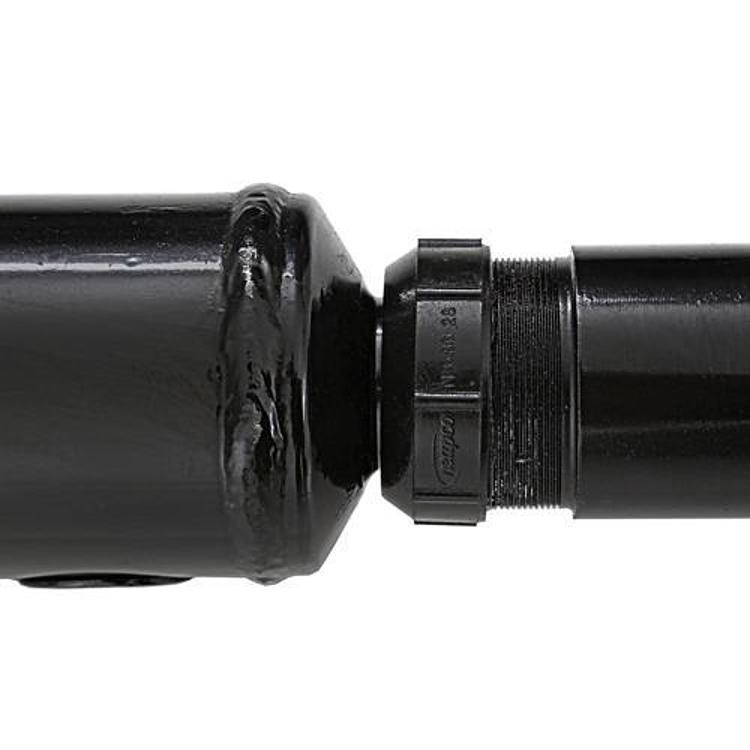

- Heavy duty D.O.M. tubing
- Solid body U-joints, 1350 size
- Dynamic balancing against vibration, per G2
- Suited to stock through 6 inch lift
- Tire clearance noted up to 37 inches
- Fits 2-door models with automatic transmissions
Before the swap
Before removing the old shaft, check how the transfer case and rear pinion are aligned, and note the shaft length. A shaft that is too long or too short can strain the slip spline or bind the joints. Mark the old shaft’s orientation so the new one can be clocked the same way at the yokes.
Lift height and the transmission type both affect the setup, so review them before starting. If you plan to change either, decide that first so the shaft choice matches the final build. Clean the yoke surfaces and inspect the bolt holes for damage before assembly.
- Note the old shaft length and yoke orientation
- Clean the yoke surfaces before reassembly
- Check driveline angles once the vehicle is back on the ground
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Part number | 92-2052-3 |
| UPC | 631410130560 |
| Position | Rear |
| Drive shaft type | Double cardan CV |
| U-joint size | 1350 |
| Tubing | Heavy duty D.O.M. |
| Balance | Dynamically balanced |
| Lift height maximum | 6 inches |
| Maximum tire size | 37 inches |
| Transmission | Automatic |
| Body | 2-door models |
Vehicle fitment
It fits the Jeep Wrangler JK from 2007 to 2018, with 2-door bodies and automatic transmissions.
The rear extended CV shaft length is Universal Fit and needs no slip yoke eliminator. Compare shaft length and transmission type with your vehicle before choosing this part.
It is not made for the Wrangler YJ, TJ or LJ, the JL generation, the Gladiator, or the Cherokee and Grand Cherokee. Confirm your year, model and trim first.
Installation notes
Lift height changes the driveline angles, so check the angles once the shaft is fitted to a lifted Wrangler. Review the chart for slip yoke eliminator requirements before starting the swap.
What’s included
Only the shaft itself is included. Verify any packed hardware or eliminators against your installation plan.
